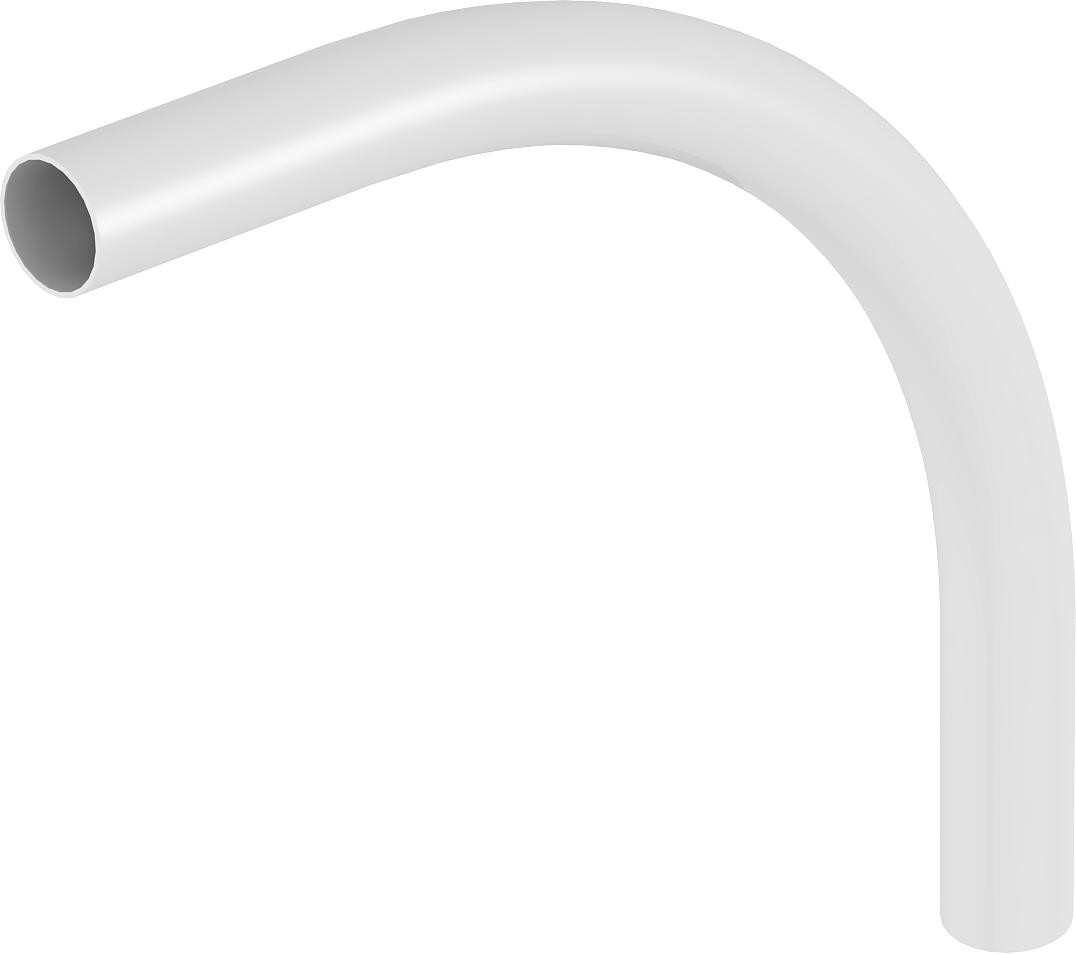

Pipe bend, plastic, halogen-free
Item no. 2047738 | EAN 4012195623199
- Product description
-
Product description
Accessory part: 90° bend to EN 61386 (Code: 4421) for halogen-free electrical installation pipes.
-
- Technical data
-
Technical data
Angle of the bend 90 ° Colour Light grey; RAL 7035 Dimension Ø20mm Flexible no For nominal pipe diameter 20 mm Halogen-free yes Material Polycarbonate/Acrylnitrile-butadiene-styrene Version for Connector With sleeve no Dimensions

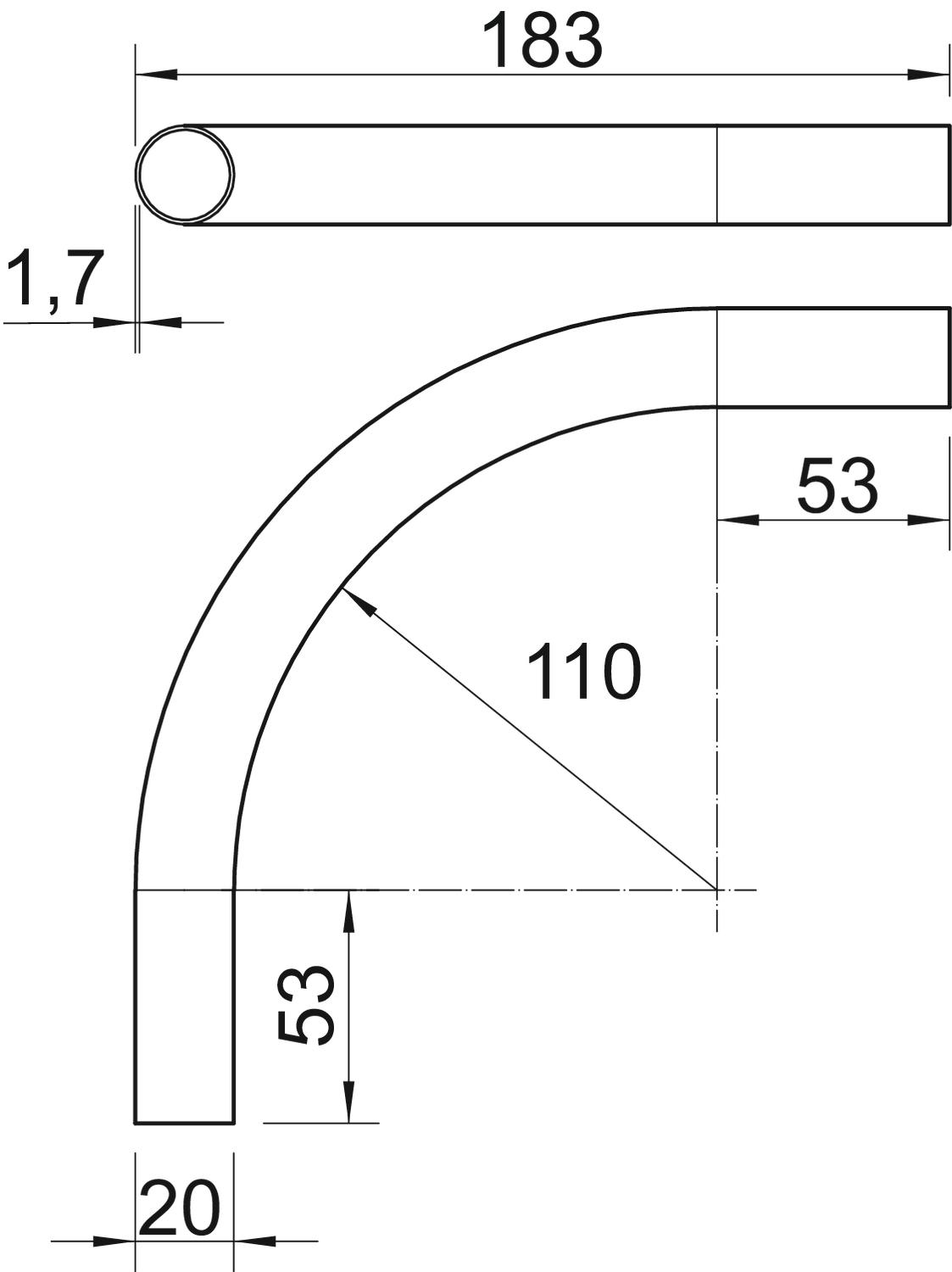

Dimension A 53 mm Dimension D 20 mm Dimension L 183 mm Dimension m (mm) M20 Dimension R 110 mm Dimension t 1,7 mm Length 183 mm - All types
- Downloads
-
Data sheet KBH20 LGR / 2047738 , 0.23MB , pdf
