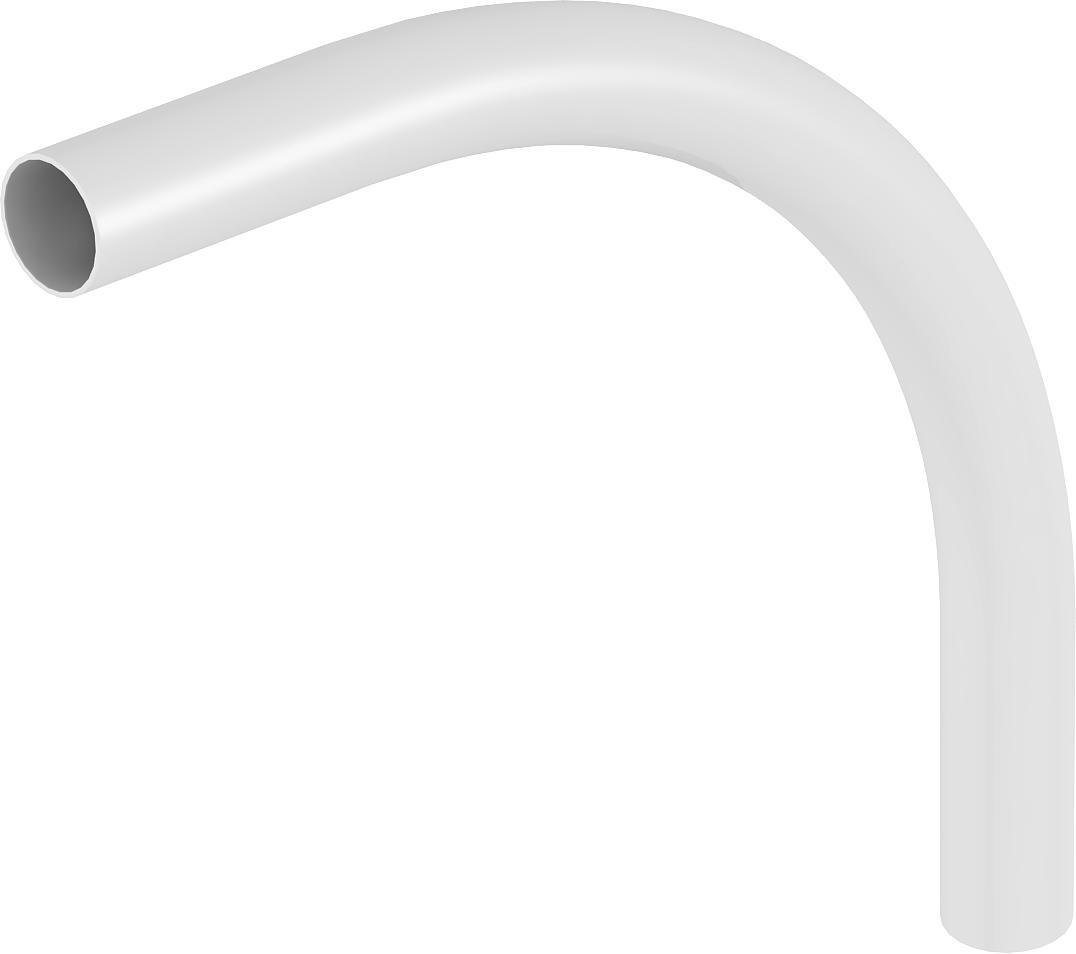

Pipe bend, plastic, halogen-free

Item no. 2047742 | EAN 4012195623236

Product description
Product description
Accessory part: 90° bend to EN 61386 (Code: 4421) for halogen-free electrical installation pipes.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Thread metric
Technical data

Technical data

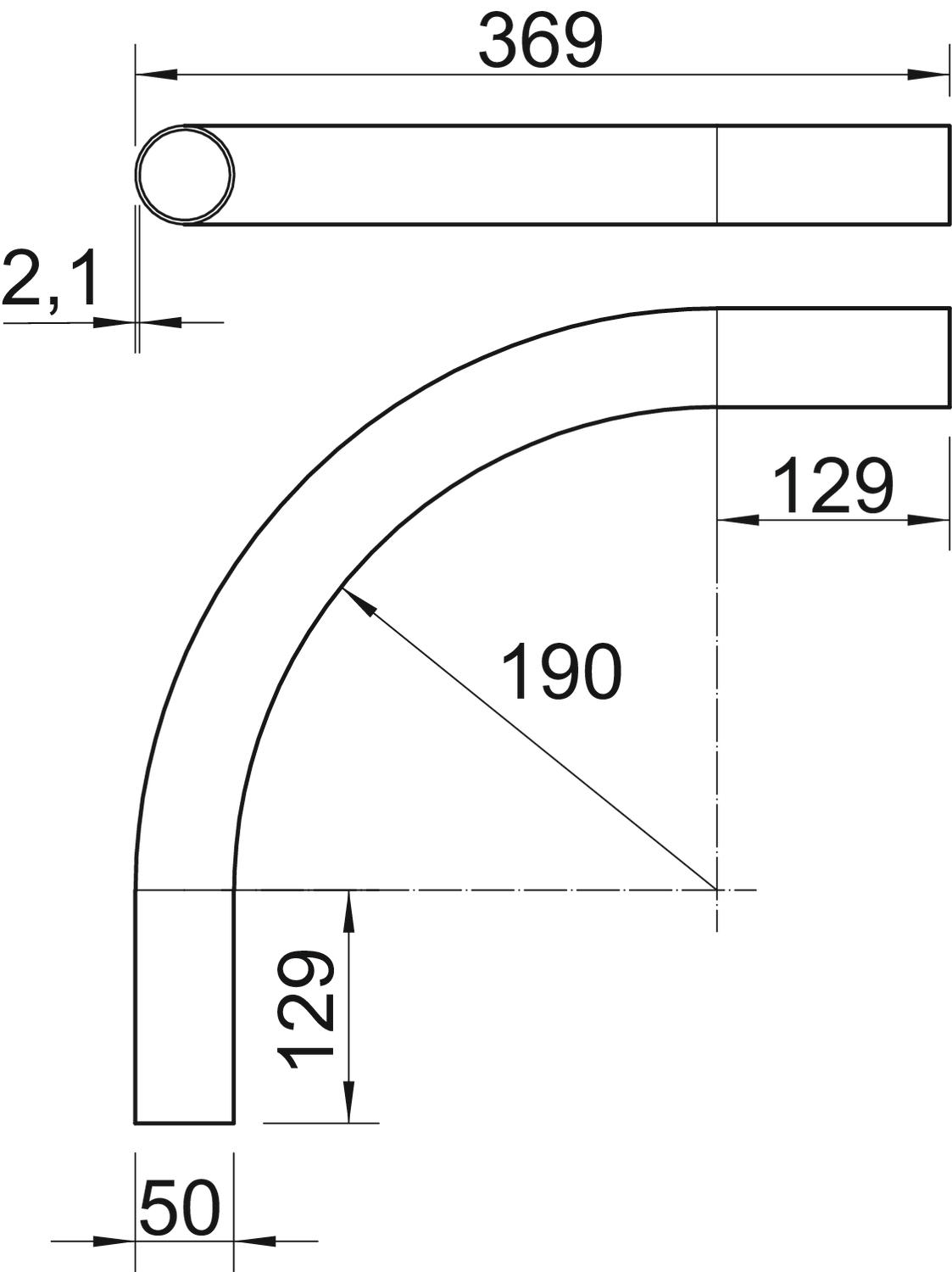

Angle of the bend 90 °
Colour Light grey; RAL 7035
Dimension Ø50mm
Dimension A 129 mm
Dimension D 50 mm
Dimension L 369 mm
Dimension m (mm) M50
Dimension R 190 mm
Dimension t 2,1 mm
Flexible no
For nominal pipe diameter 50 mm
Halogen-free yes
Length 369 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Version for Connector
With sleeve no
All types

All types

Types For nominal pipe diameter Item no. Quantity SSU
KBH16 LGR 16 mm 2047736
10 piece
KBH20 LGR 20 mm 2047738
25 piece
KBH25 LGR 25 mm 2047739
25 piece
KBH32 LGR 32 mm 2047740
25 piece
KBH40 LGR 40 mm 2047741
10 piece
KBH50 LGR 50 mm 2047742
5 piece
KBH63 LGR 63 mm 2047743
5 piece
