- Product description
-

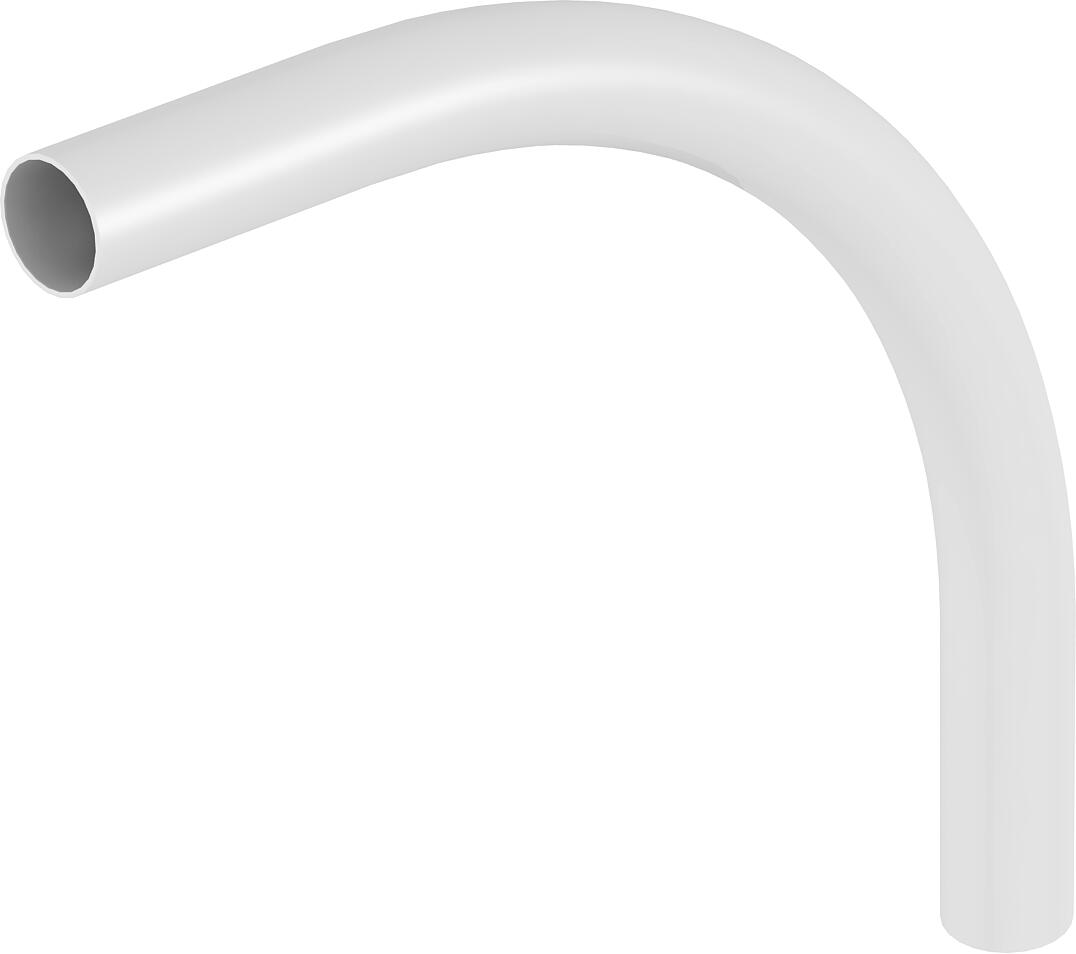

Product descriptionAccessory part: 90° bend to EN 61386 (Code: 4421) for halogen-free electrical installation pipes.
- Technical data
-
Technical data

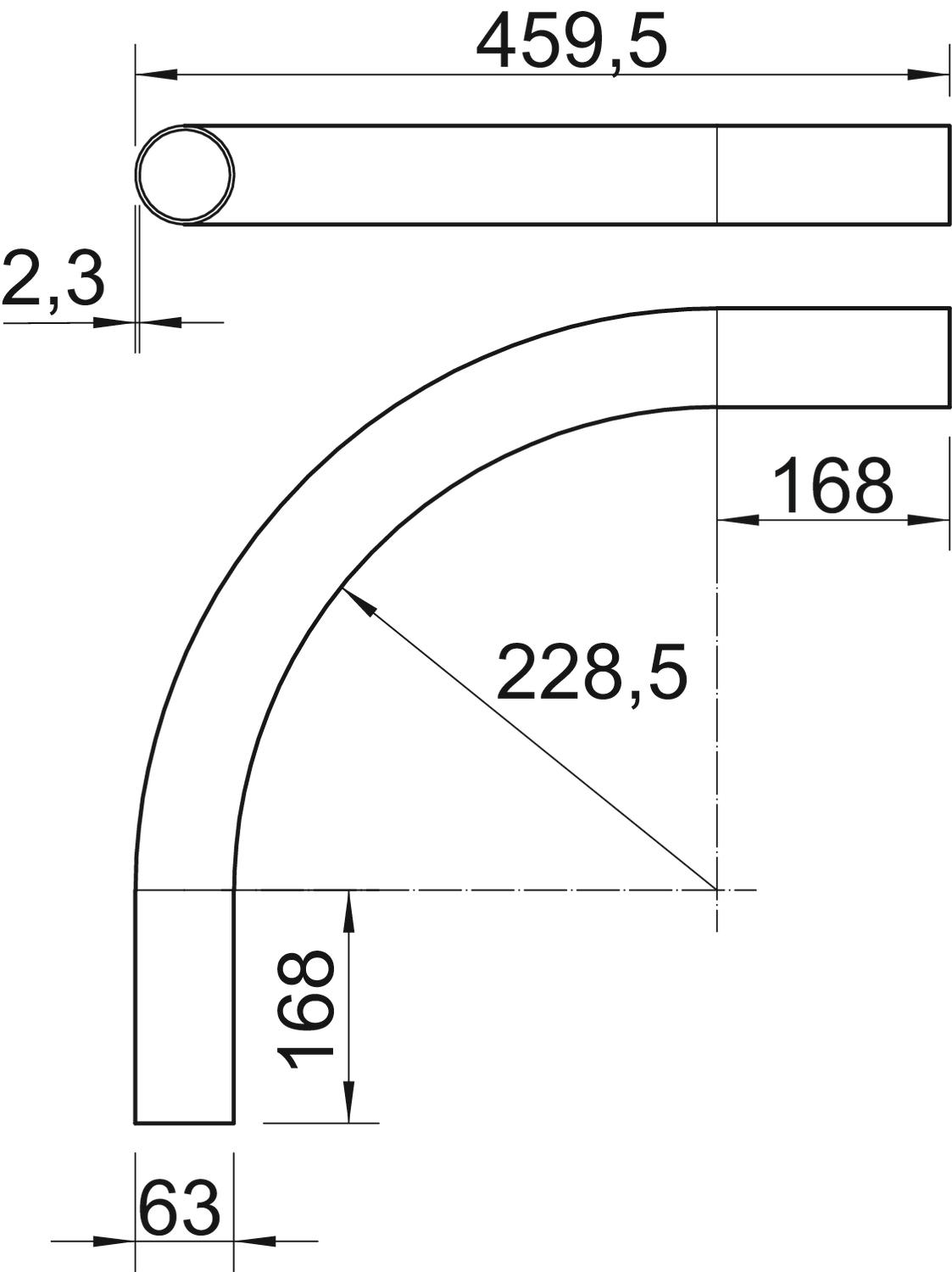

Angle of the bend 90 ° Colour Light grey; RAL 7035 Dimension Ø63mm Dimension A 168 mm Dimension D 63 mm Dimension L 459,5 mm Dimension m (mm) M63 Dimension R 228,5 mm Dimension t 2,3 mm Flexible no For nominal pipe diameter 63 mm Halogen-free yes Length 459,5 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Version for Connector With sleeve no - All types
- Downloads
-
Data sheet KBH63 LGR / 2047743 , 0.18MB , pdf
