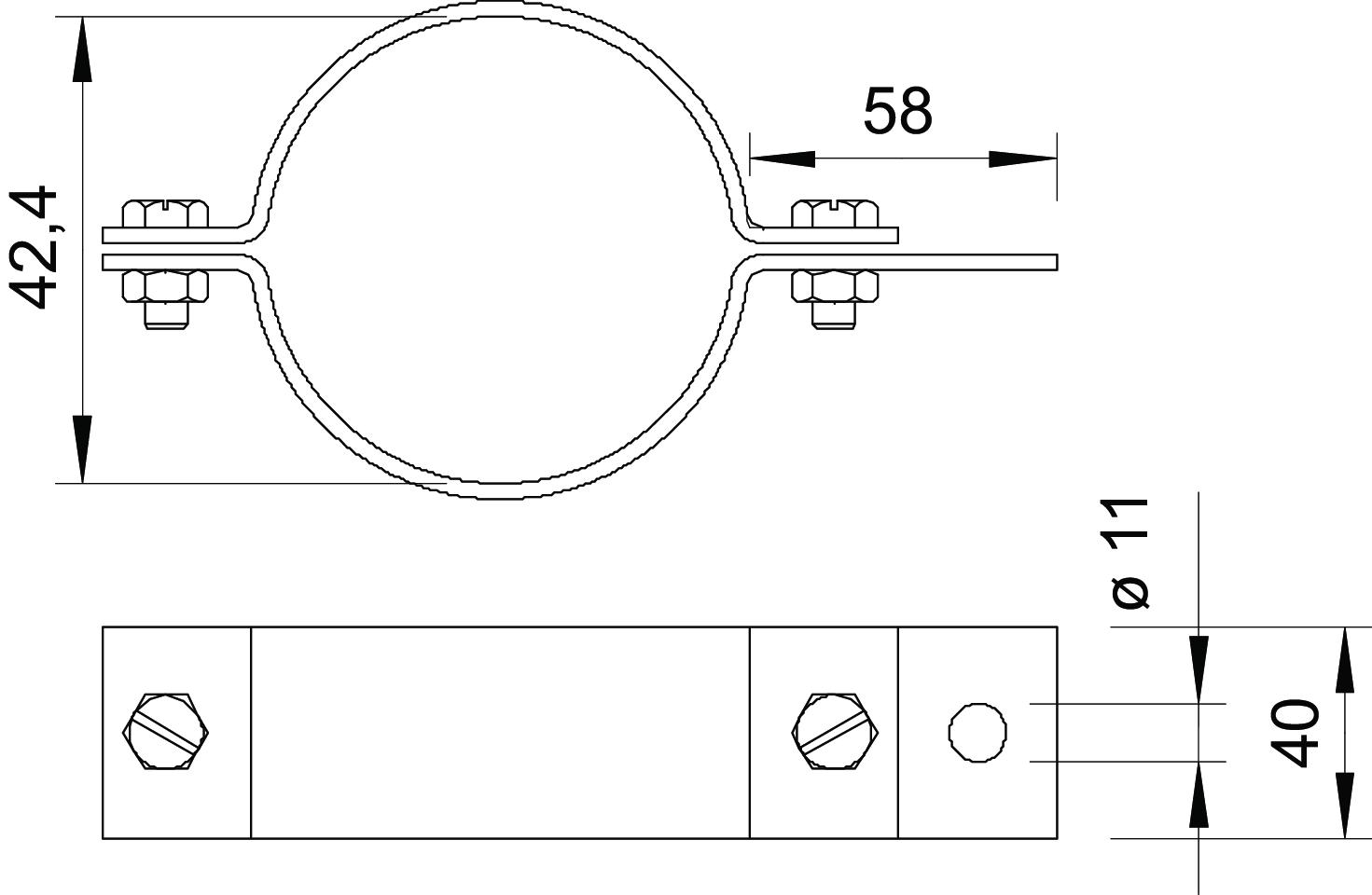

Pipe clamp

Item no. / Types

for pipe

Material	Steel

Product description

Product description

• DIN 48818, Form D
• With Ø 11 mm mounting hole
• 2 hexagonal bolts M8 x 20 (4 inch = M10)
• 2 hex-head nuts M8 (4 inch = M10)

Technical data

explosion-proof	no
for pipe	11/4
Integrated round conductor guide	no
Material	Steel
Surface	Hot-dip galvanised

All types

Types	for pipe	Material	Item no.	Quantity	SSU
303 DIN-3/8	3/8	Steel	5102057	piece	5 piece
303 DIN-1/2	1/2	Steel	5102073	piece	5 piece
303 DIN-3/4	3/4	Steel	5102081	piece	5 piece
303 DIN-1	1	Steel	5102111	piece	5 piece
303 DIN-1 1/4	11/4	Steel	5102138	piece	5 piece
303 DIN-1 1/2	11/2	Steel	5102154	piece	5 piece
303 DIN-2	2	Steel	5102197	piece	5 piece
303 DIN-2 1/2	21/2	Steel	5102219	piece	10 piece
303 DIN-3	3	Steel	5102235	piece	10 piece
303 DIN-3 1/2	31/2	Steel	5102251	piece	10 piece
303 DIN-4	4	Steel	5102278	piece	10 piece
