Pipe clamp
Item no. 5102081 | EAN 4012195399919
- Product description
-
Product description• DIN 48818, Form D
• With Ø 11 mm mounting hole
• 2 hexagonal bolts M8 x 20 (4 inch = M10)
• 2 hex-head nuts M8 (4 inch = M10)
- Technical data
-
Technical data

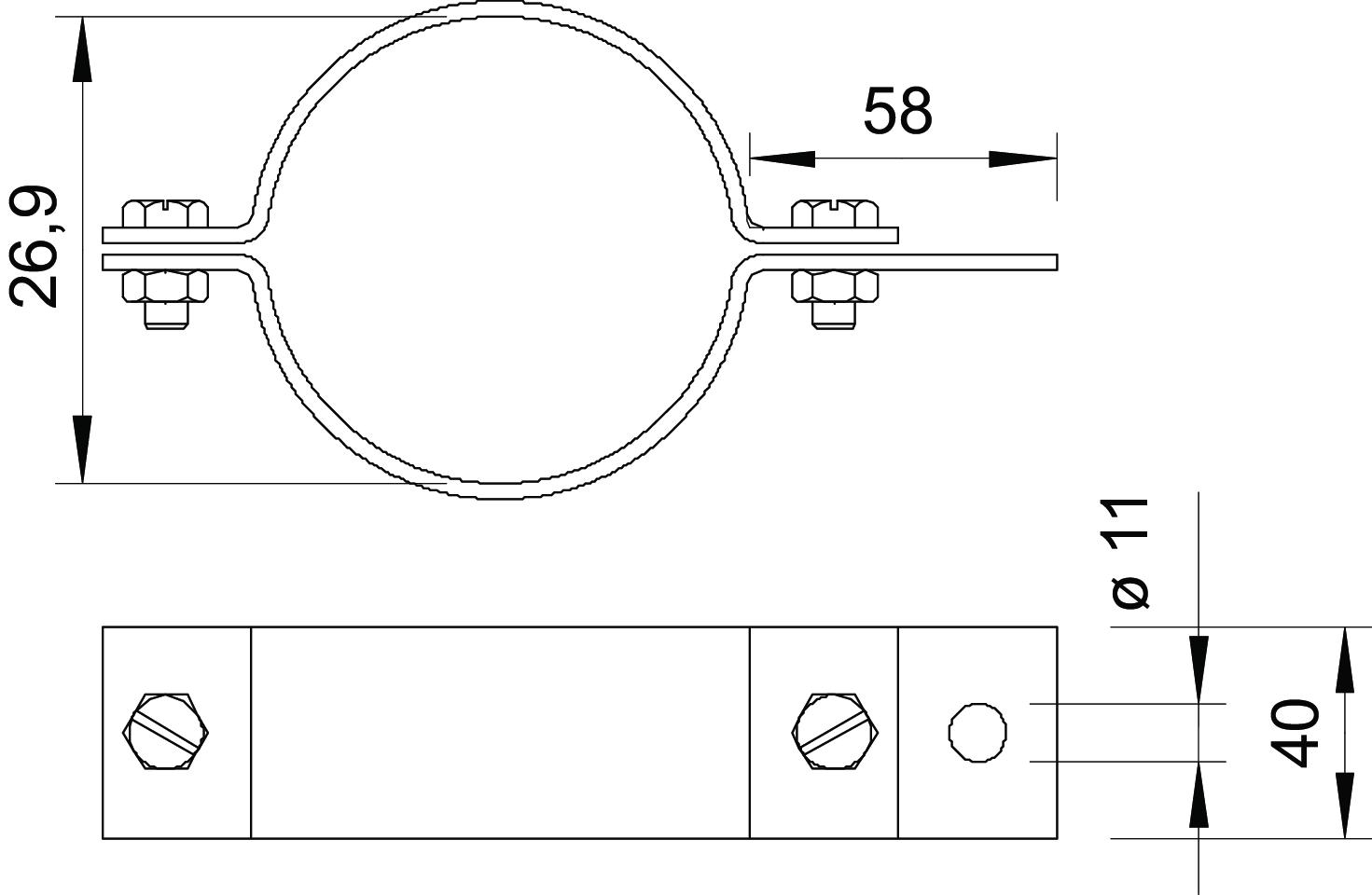

Bimetal connector no Clamping range, min. 26,9 mm Connection hole 11 mm Dimension 3/4" Dimension d min. 26,9 mm explosion-proof no for pipe 3/4 Integrated round conductor guide no Material Steel Surface Hot-dip galvanised - All types
-
All types
- Downloads
-
Data sheet 303 DIN-3/4 / 5102081 , 0.15MB , pdfEU declaration of conformity 303 DIN-3/4 / 5102081 , 0.06MB , pdfREACH Declaration of conformity 303 DIN-3/4 / 5102081 , 0.27MB , pdfRoHS Declaration of conformity 303 DIN-3/4 / 5102081 , 0.28MB , pdf
