Pipe clamp

Item no. 5102057 | EAN 4012195399797

Steel
Product description

Product description

• DIN 48818, Form D
• With Ø 11 mm mounting hole
• 2 hexagonal bolts M8 x 20 (4 inch = M10)
• 2 hex-head nuts M8 (4 inch = M10)
Technical data

Technical data

Bimetal connector no

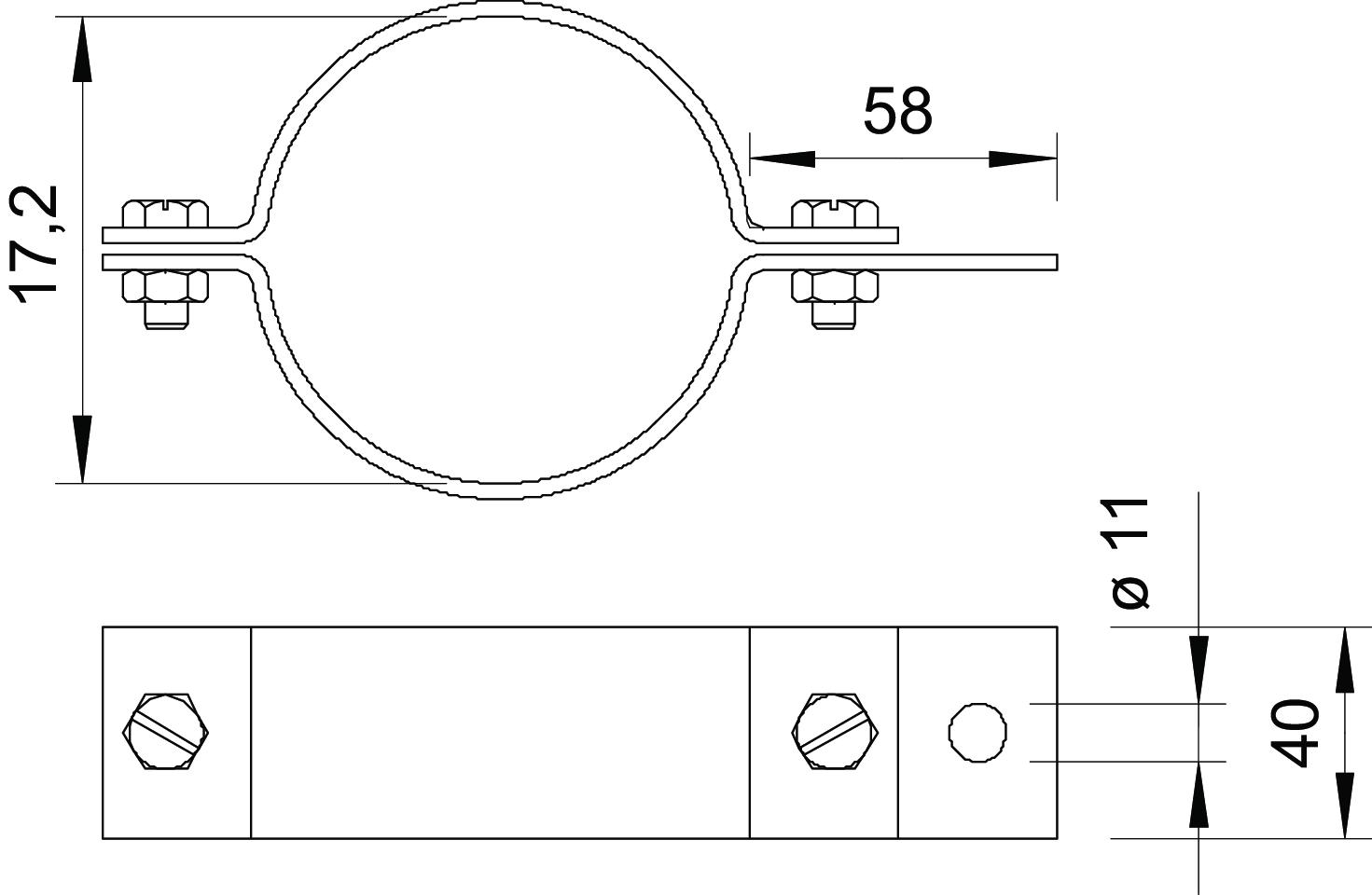

Clamping range, min. 17,2 mm
Connection hole 11 mm
Dimension 3/8"
Dimension d min. 17,2 mm
explosion-proof no
for pipe 3/8
Integrated round conductor guide no
Material Steel
Surface Hot-dip galvanised
All types

All types

Types for pipe Material Item no. Quantity SSU
303 DIN-3/8 3/8 Steel 5102057
5 piece
303 DIN-1/2 1/2 Steel 5102073
5 piece
303 DIN-3/4 3/4 Steel 5102081
5 piece
303 DIN-1 1 Steel 5102111
5 piece
303 DIN-1 1/4 11/4 Steel 5102138
5 piece
303 DIN-1 1/2 11/2 Steel 5102154
5 piece
303 DIN-2 2 Steel 5102197
5 piece
303 DIN-2 1/2 21/2 Steel 5102219
10 piece
303 DIN-3 3 Steel 5102235
10 piece
303 DIN-3 1/2 31/2 Steel 5102251
10 piece
303 DIN-4 4 Steel 5102278
10 piece
