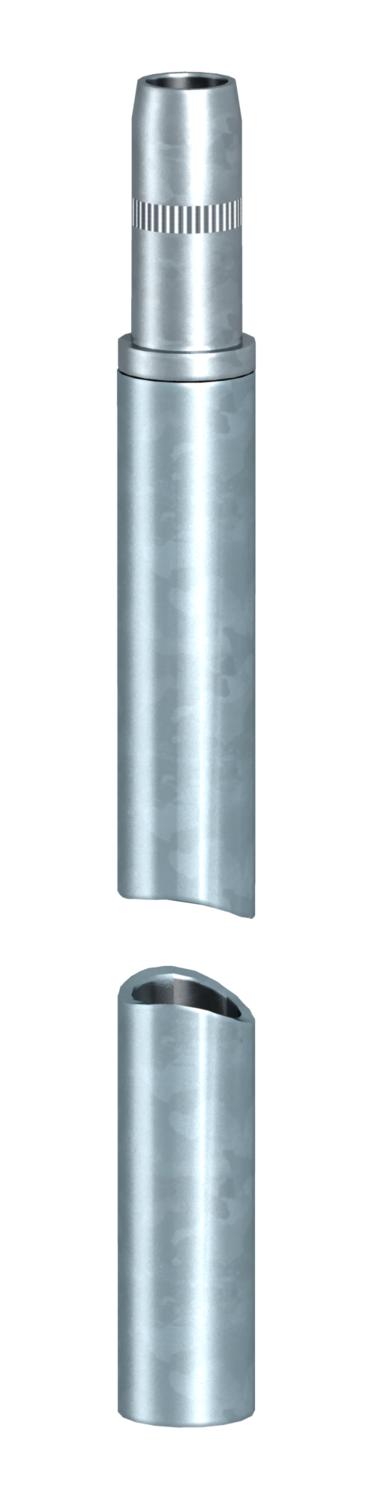

Pipe earth rod LE, FT

Item no. 5000300 | EAN 4012195617358

Item no. / Types	5000300 / LE ERDER FT

Length	1500 mm

External diameter	25 mm

Product description

Product description

• Expandable earth rod system for erecting earthing connections (type A)
• The pipe earth rod system LE is connected using the pre-mounted sleeve
• Complies with requirements according to DIN VDE 0185-305 (IEC 62305) and DIN EN 62561-2
• For use with antenna earthing systems, lightning earthing systems, etc.

Technical data

Technical data

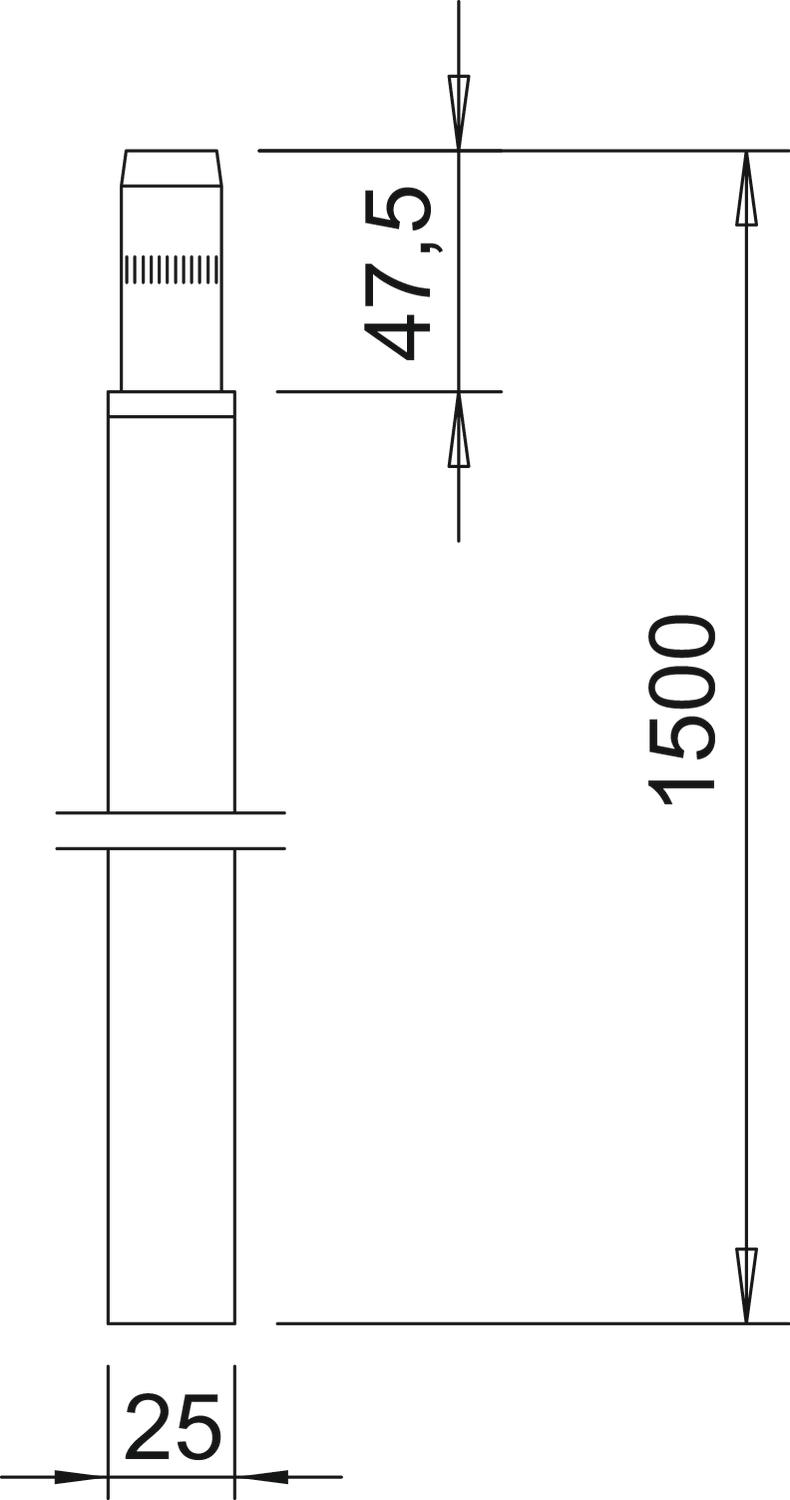

Dimension	1,5m
Dimension D	25 mm
Dimension L	1500 mm
External diameter	25 mm

Length	1500 mm
Material	Steel
Profile type	Round D=25 mm
Surface	Hot-dip galvanised

All types

All types

Types	Length	External diameter	Item no.	Quantity	SSU
LE ERDER FT	1500 mm	25 mm	5000300	piece	5 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU

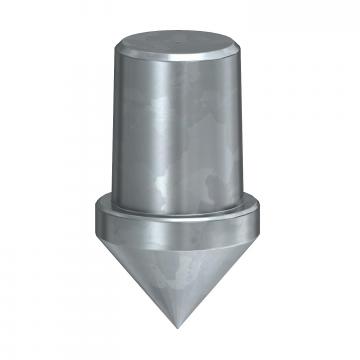

Driving spike for pipe earth rod LE	LE SPITZE	3041409	piece	5 piece

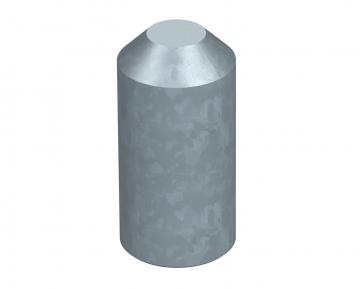

Driving head for LightEarth earth rod	LE KOPF	3042308	piece	1 piece
Connection clip for earthing rod to round cables Rd 8−10	2710 25 FT	5001226	piece	5 piece
Connection clamp for earth rod on flat conductor FT	2730 25 FT	5001412	piece	5 piece
Connection clamp for earth rod, universal FT	2760 25 FT	5001668	piece	5 piece
