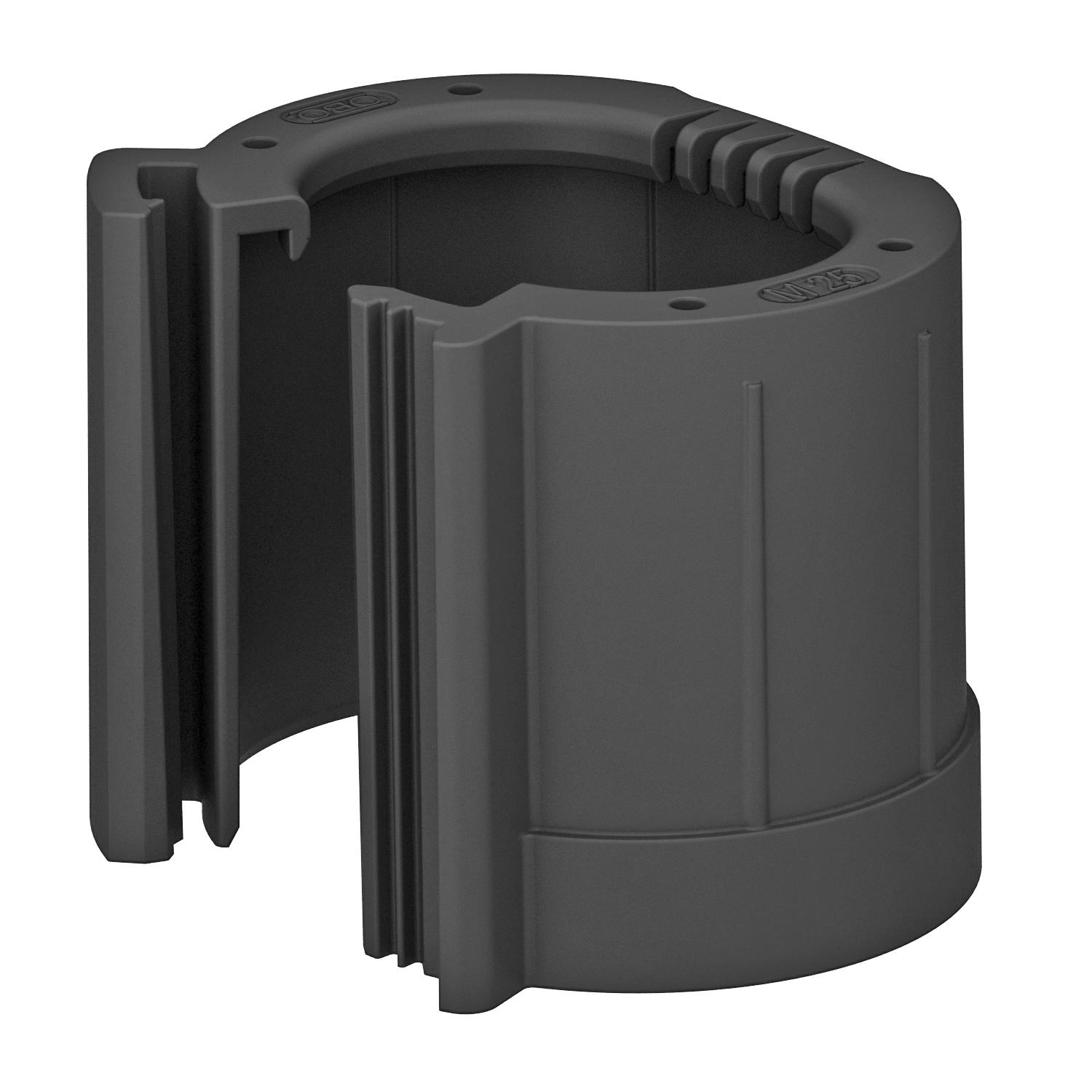

Product descriptionSeparable pipe end cap to slot onto metric electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
- Technical data
-
Technical data

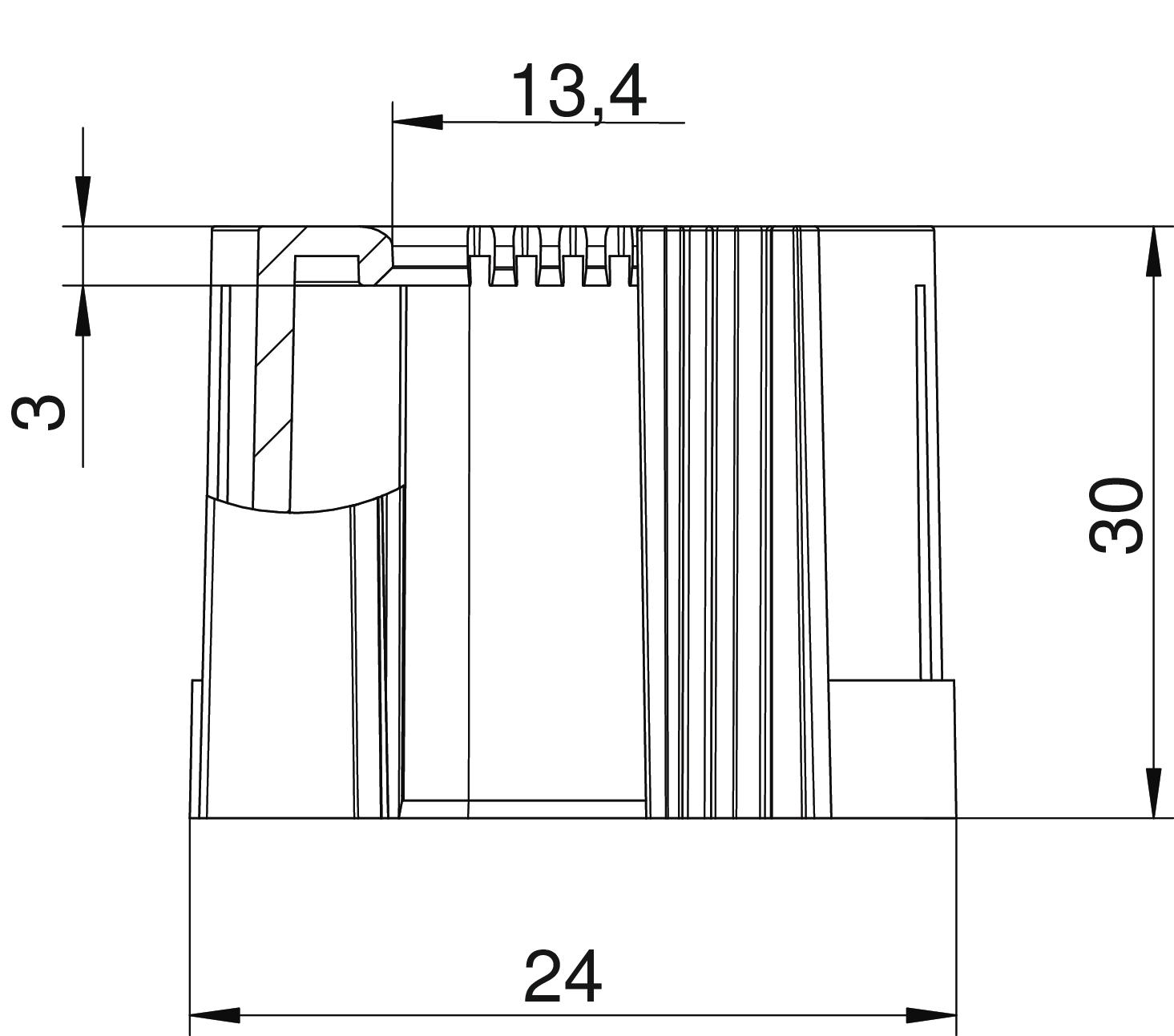

Brushed surface no Colour Black Dimension M20 Dimension D1 24 mm Dimension D2 13,4 mm Dimension L1 30 mm Dimension L2 3 mm for pipe diameter 20 mm Halogen-free yes Material Polyethylene Polished surface no Size M20 Version for Connector - All types
- Downloads
-
Data sheet 129 TB M20 SW / 2047944 , 0.22MB , pdfEU declaration of conformity 129 TB M20 SW / 2047944 , 0.05MB , pdfREACH Declaration of conformity 129 TB M20 SW / 2047944 , 0.12MB , pdfRoHS Declaration of conformity 129 TB M20 SW / 2047944 , 0.12MB , pdf
