- Product description
-
Product description

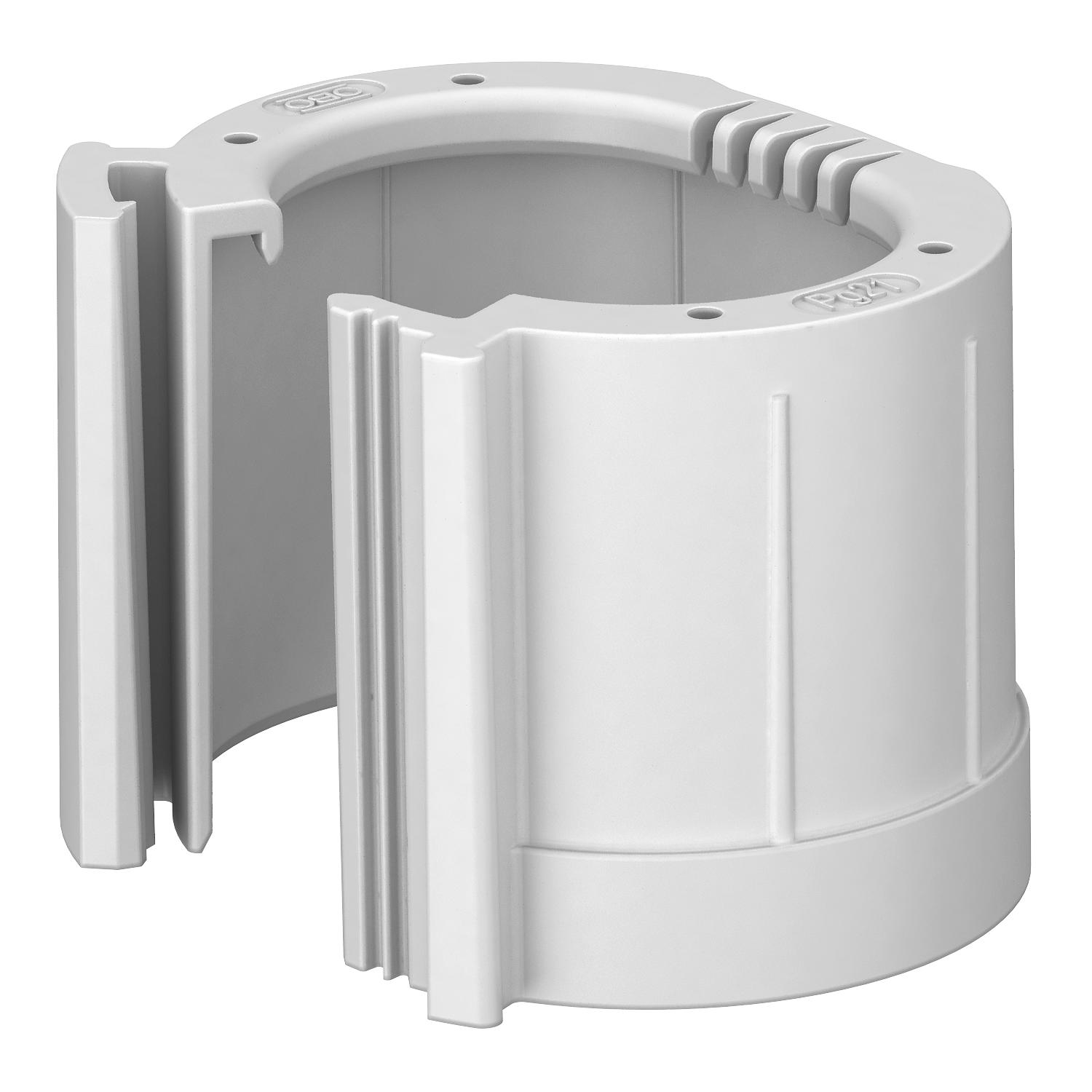

Separable pipe end cap to slot onto PG electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
- Technical data
-
Technical data

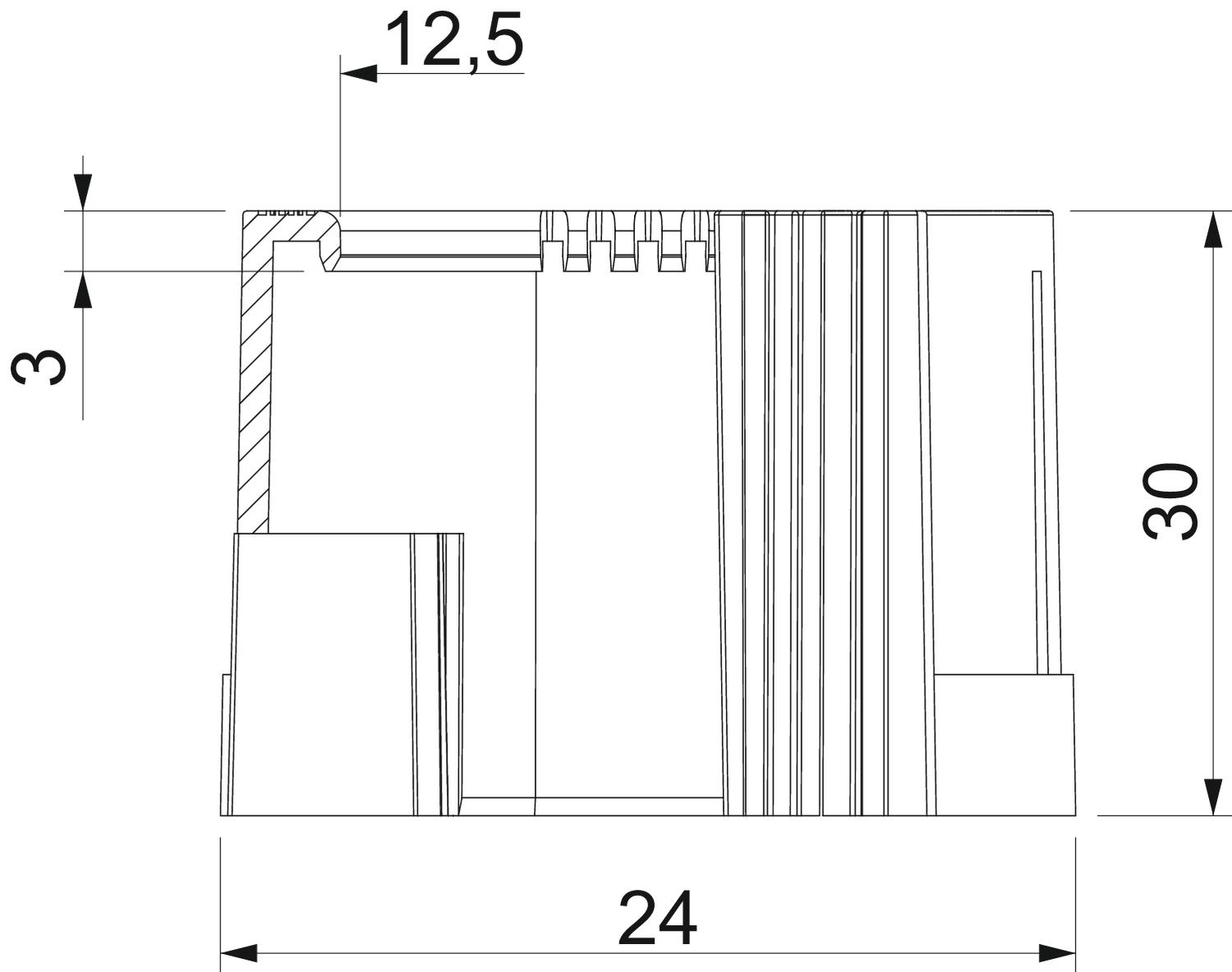

Brushed surface no Colour Light grey; RAL 7035 Dimension PG11 Dimension D1 24 mm Dimension D2 12,5 mm Dimension L1 30 mm Dimension L2 3 mm for pipe diameter 18,6 mm Material Polyethylene Polished surface no Size PG11 Version for Connector - All types
- Downloads
-
Data sheet 129 TB PG11 / 2044511 , 0.18MB , pdfREACH Declaration of conformity 129 TB PG11 / 2044511 , 0.12MB , pdfRoHS Declaration of conformity 129 TB PG11 / 2044511 , 0.12MB , pdf
