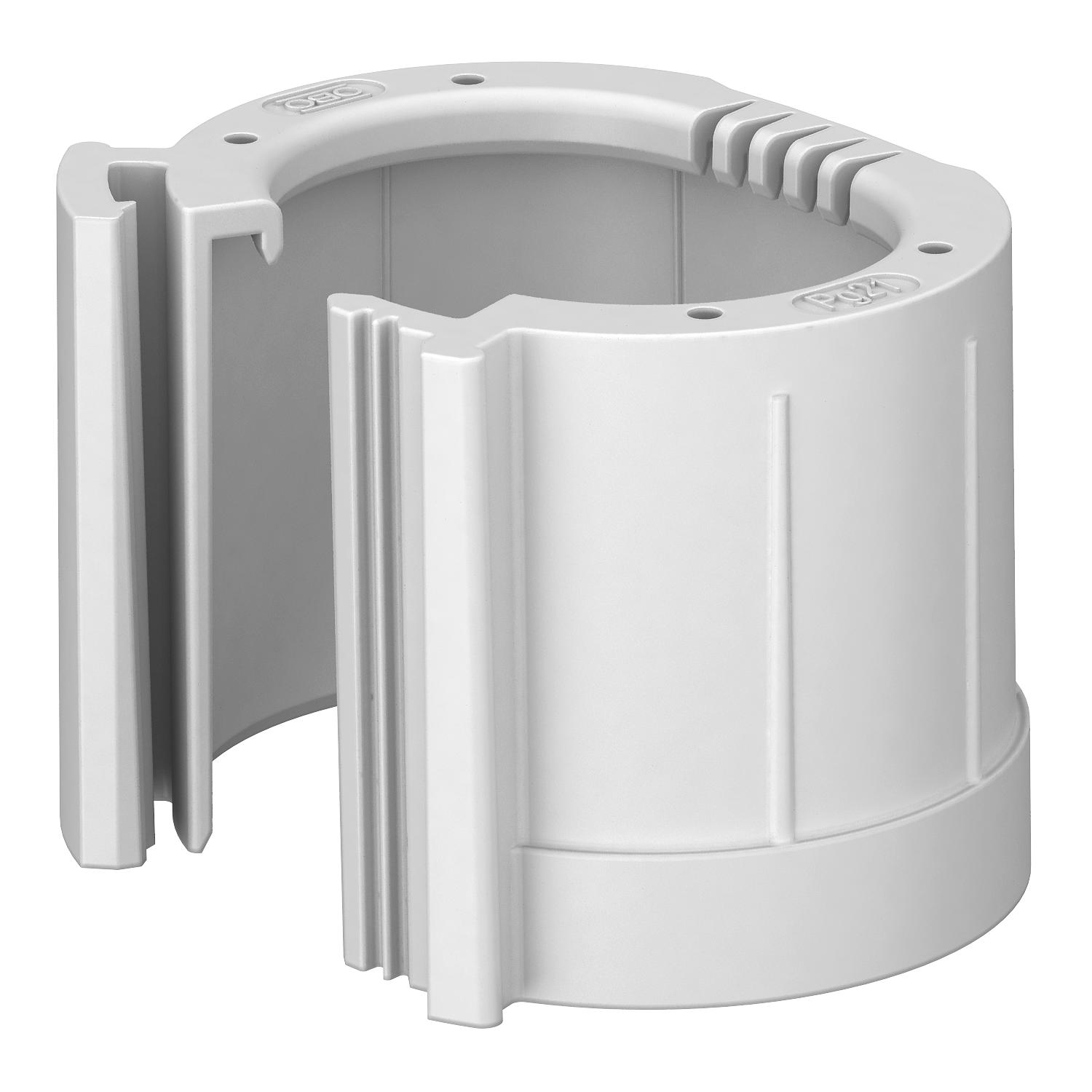

Pipe end cap, splittable, PG, light grey
Item no. 2044516 | EAN 4012196594122
- Product description
-
Product descriptionSeparable pipe end cap to slot onto PG electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
-
- Technical data
-
Technical data

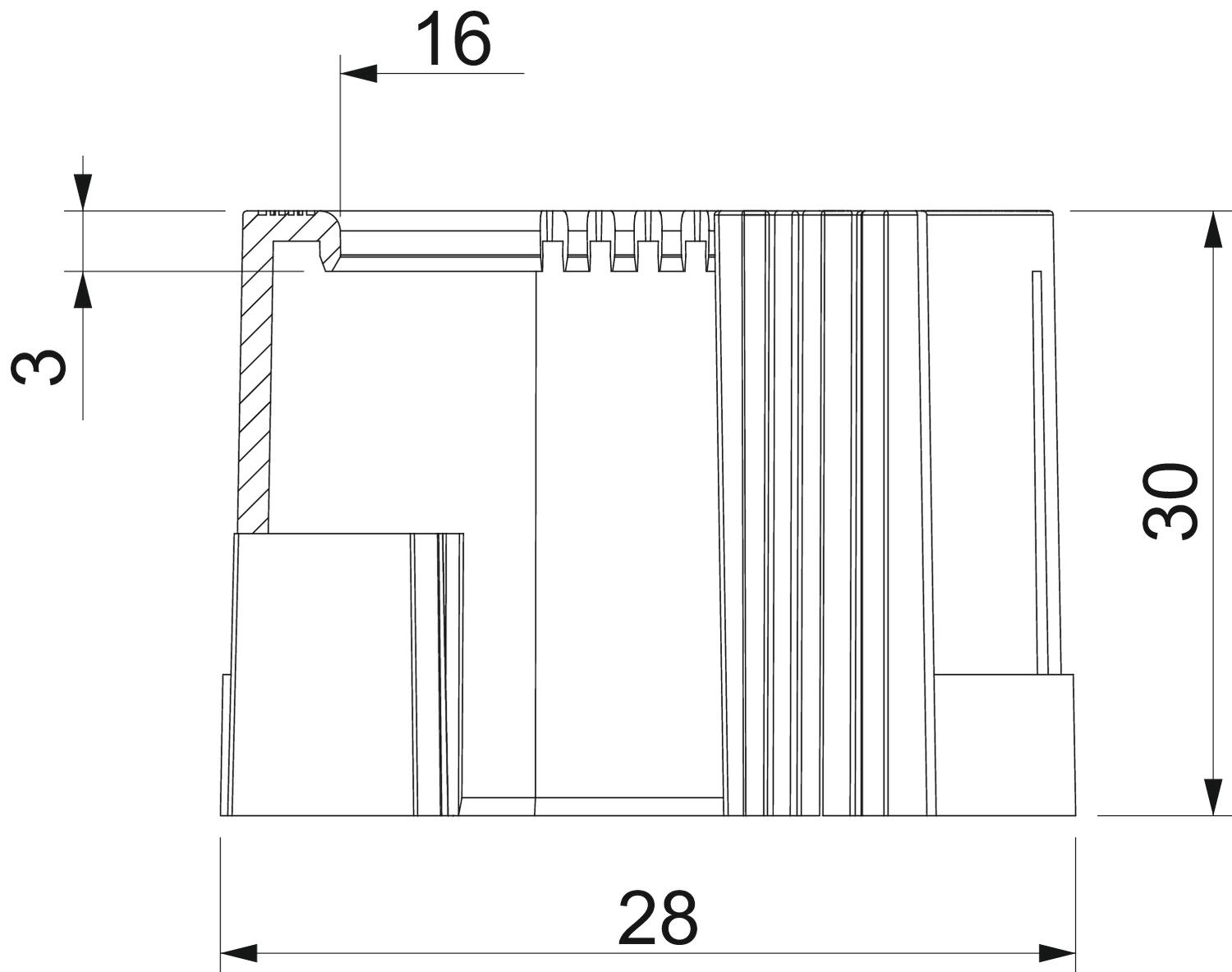

Brushed surface no Colour Light grey; RAL 7035 Dimension PG16 Dimension D1 28 mm Dimension D2 16 mm Dimension L1 30 mm Dimension L2 3 mm for pipe diameter 22,5 mm Material Polyethylene Polished surface no Size PG16 Version for Connector - All types
- Downloads
-
Data sheet 129 TB PG16 / 2044516 , 0.18MB , pdfREACH Declaration of conformity 129 TB PG16 / 2044516 , 0.12MB , pdfRoHS Declaration of conformity 129 TB PG16 / 2044516 , 0.12MB , pdf
