Pipe end cap, splittable, PG, light grey
Item no. 2044521 | EAN 4012196594139
- Product description
-
Product description

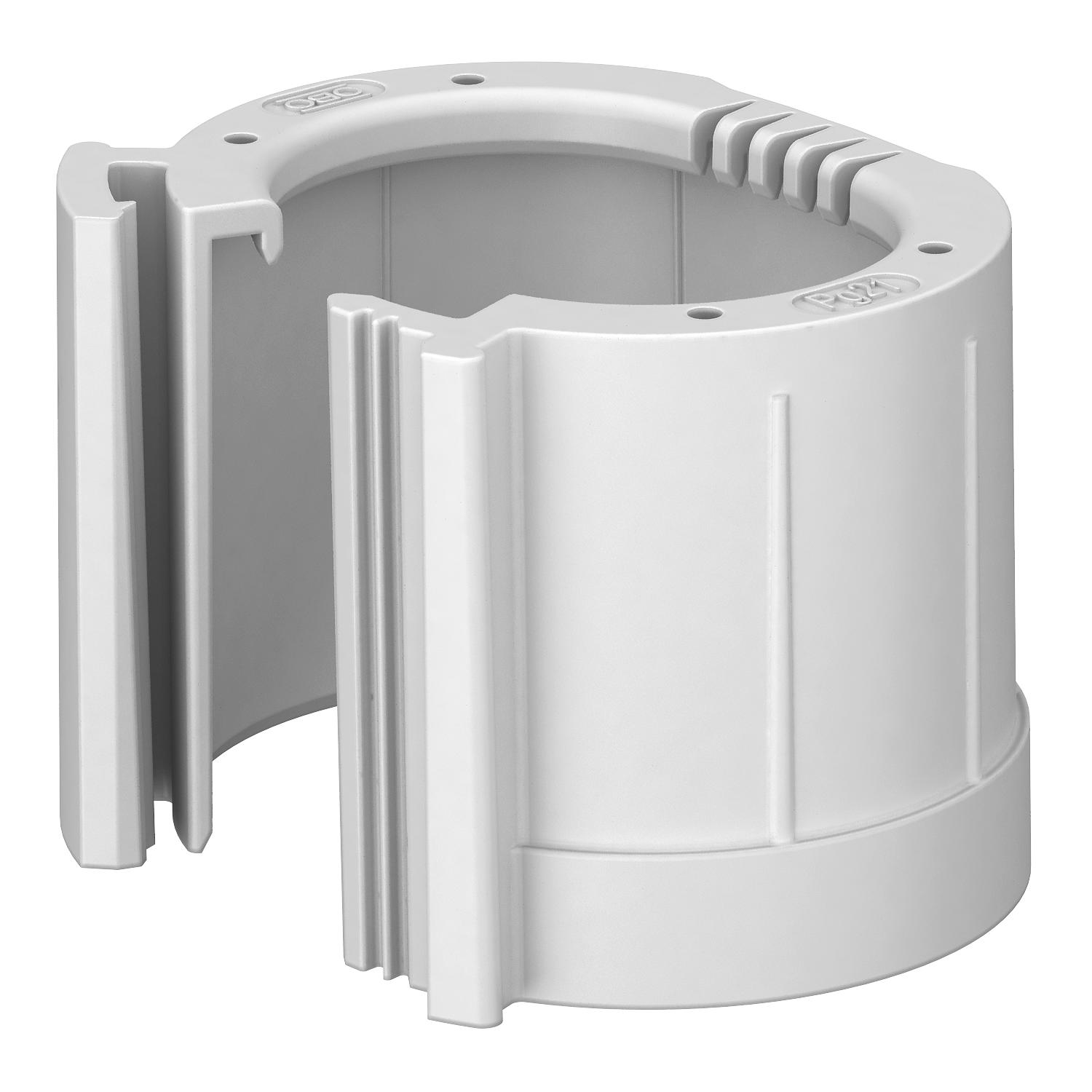

Separable pipe end cap to slot onto PG electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
-
- Technical data
-
Technical data

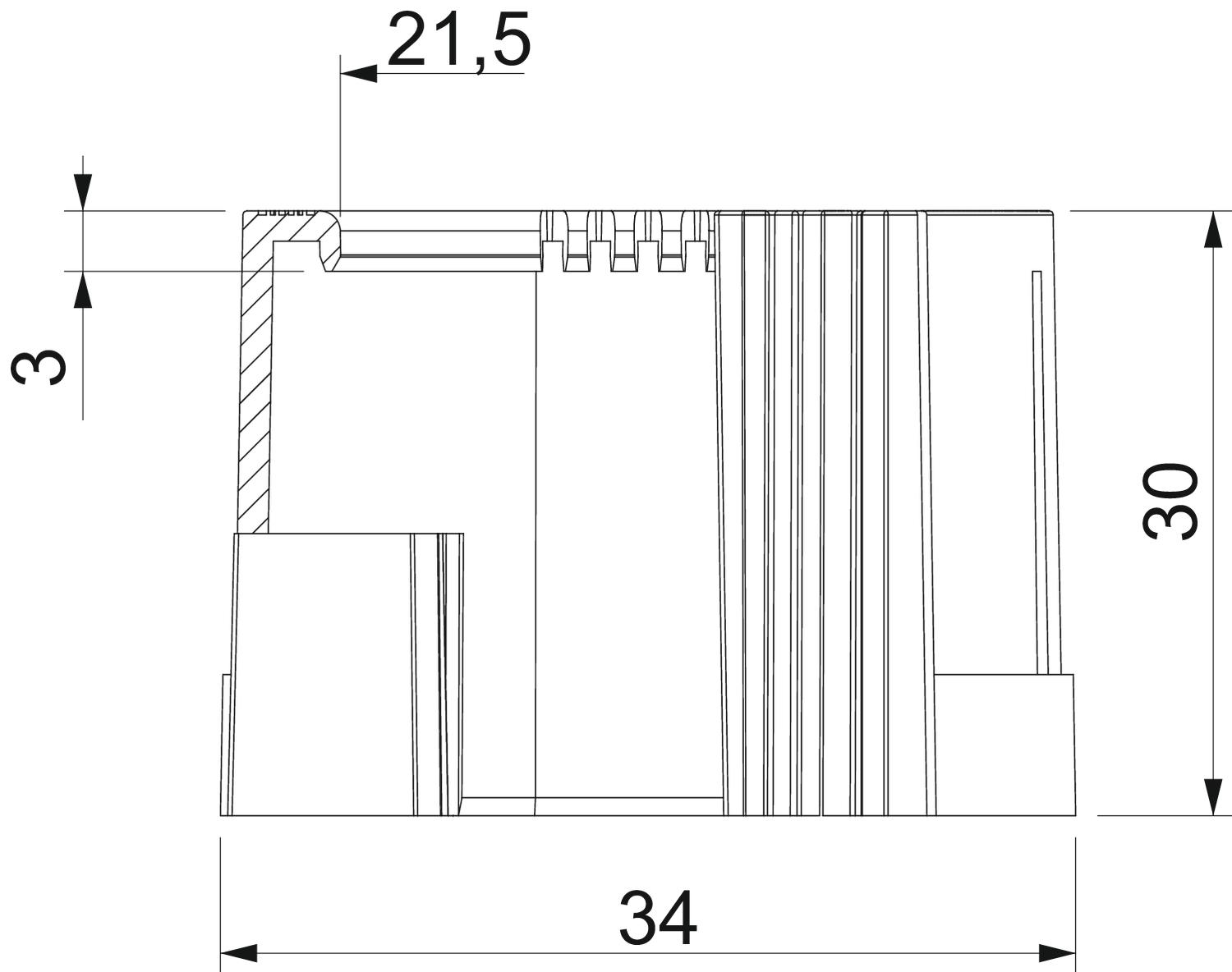

Brushed surface no Colour Light grey; RAL 7035 Dimension PG21 Dimension D1 34 mm Dimension D2 21,5 mm Dimension L1 30 mm Dimension L2 3 mm for pipe diameter 28,3 mm Material Polyethylene Polished surface no Size PG21 Version for Connector - All types
- Downloads
-
Data sheet 129 TB PG21 / 2044521 , 0.23MB , pdfREACH Declaration of conformity 129 TB PG21 / 2044521 , 0.12MB , pdfRoHS Declaration of conformity 129 TB PG21 / 2044521 , 0.12MB , pdf
