Pipe end cap, splittable, PG, light grey
Item no. 2044542 | EAN 4012196594160
- Product description
-
Product description

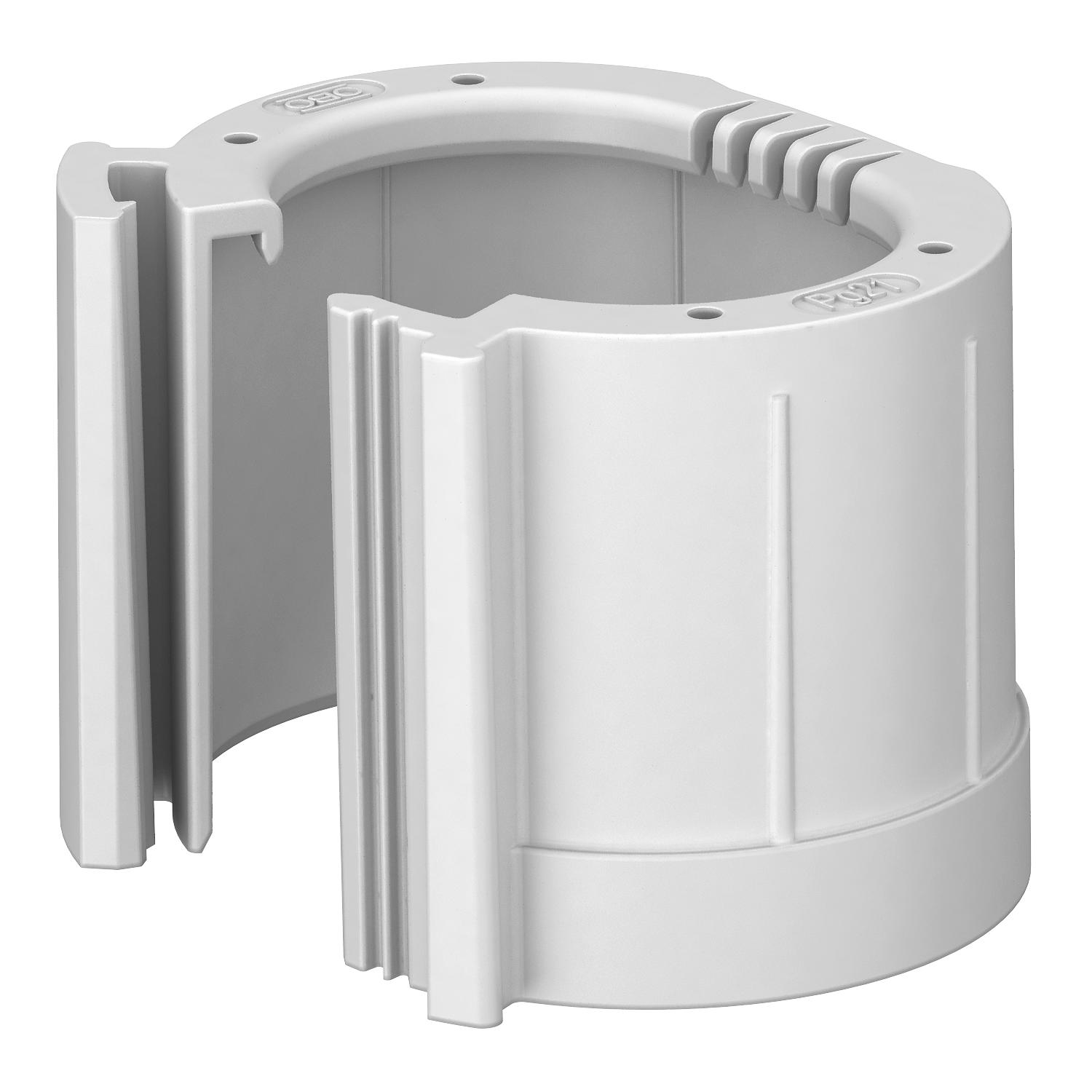

Separable pipe end cap to slot onto PG electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
-
- Technical data
-
Technical data

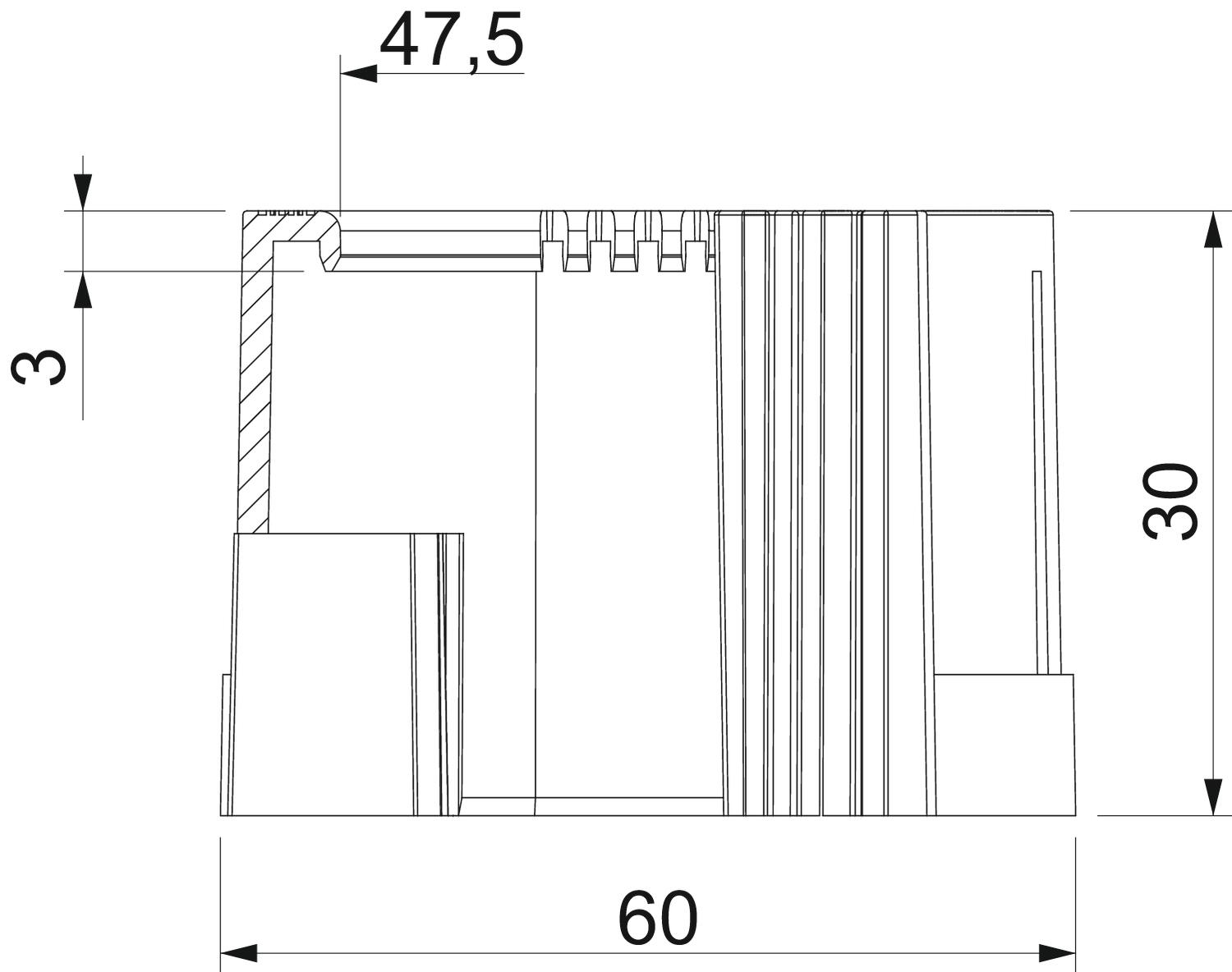

Brushed surface no Colour Light grey; RAL 7035 Dimension PG42 Dimension D1 60 mm Dimension D2 47,5 mm Dimension L1 30 mm Dimension L2 3 mm for pipe diameter 54 mm Material Polyethylene Polished surface no Size PG42 Version for Connector - All types
- Downloads
-
Data sheet 129 TB PG42 / 2044542 , 0.18MB , pdfREACH Declaration of conformity 129 TB PG42 / 2044542 , 0.12MB , pdfRoHS Declaration of conformity 129 TB PG42 / 2044542 , 0.12MB , pdf
