Pipe end cap, splittable, PG, light grey
Item no. 2044548 | EAN 4012196594177
- Product description
-
Product description

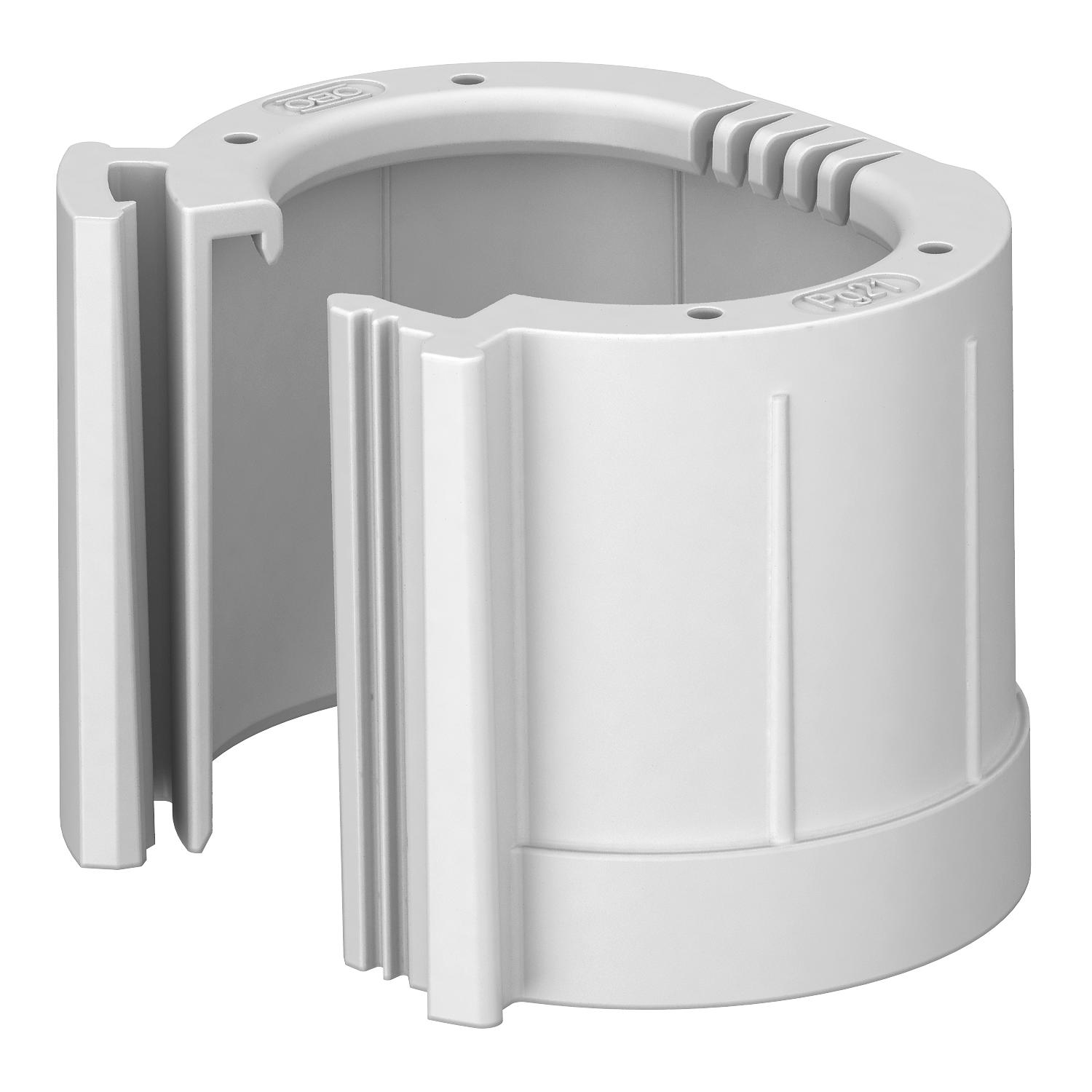

Separable pipe end cap to slot onto PG electrical installation pipes.
The separable pipe end cap can be used for repairs on existing installations according to regulations. It is not necessary to disconnect the cables, allowing quick mounting.
-
- Technical data
-
Technical data

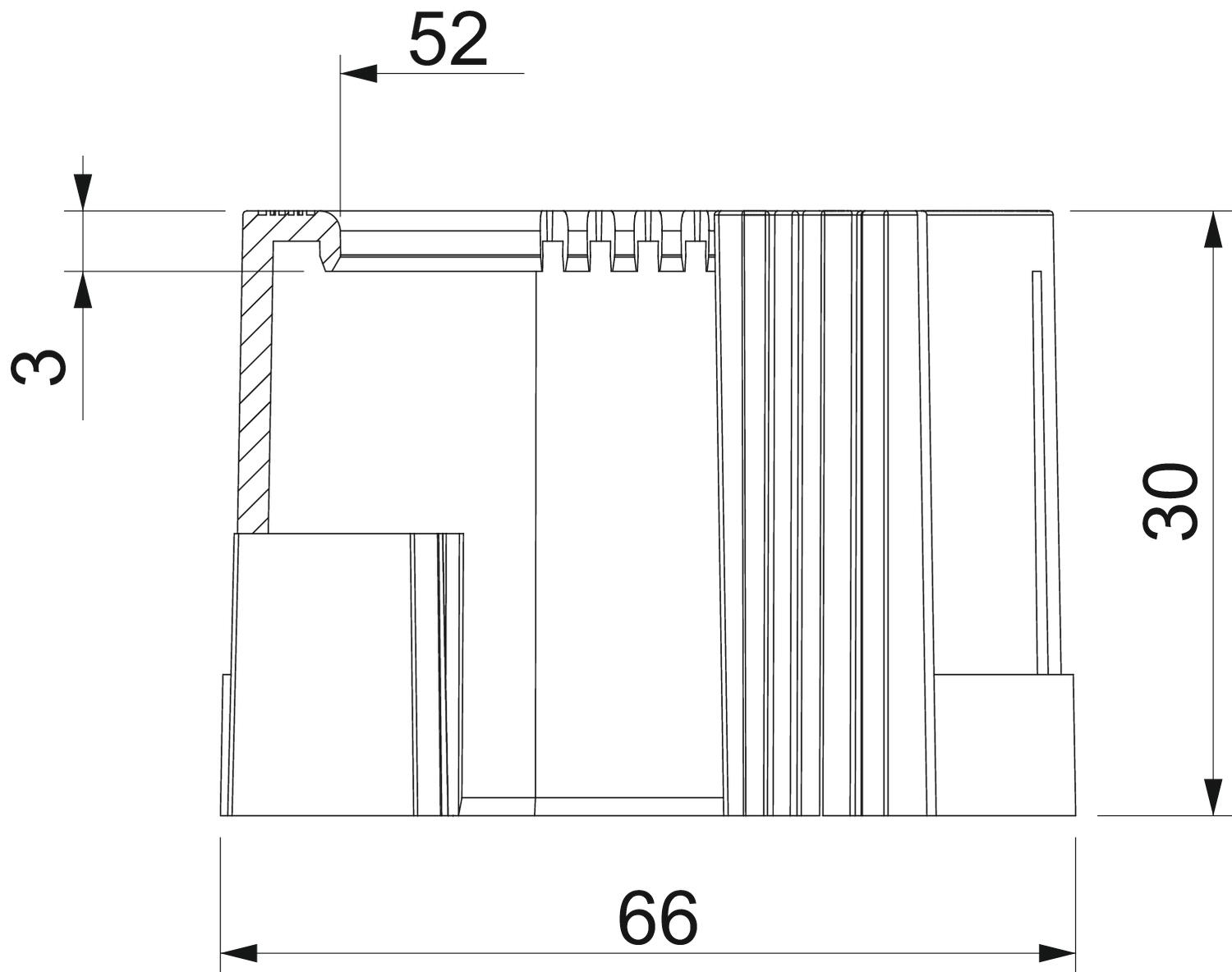

Brushed surface no Colour Light grey; RAL 7035 Dimension PG48 Dimension D1 66 mm Dimension D2 52 mm Dimension L1 30 mm Dimension L2 3 mm for pipe diameter 59,3 mm Material Polyethylene Polished surface no Size PG48 Version for Connector - All types
- Downloads
-
Data sheet 129 TB PG48 / 2044548 , 0.18MB , pdfREACH Declaration of conformity 129 TB PG48 / 2044548 , 0.12MB , pdfRoHS Declaration of conformity 129 TB PG48 / 2044548 , 0.12MB , pdf
