Pipe fastening

Item no. 5408994 | EAN 4012195613435

Item no. / Types	5408994 / 101 R-16

Dimension B	96 mm

Dimension d min.	30 mm

Dimension d Ø	16 mm

Dimension L	81 mm

Product description

Product description

• For pipe fastening of a GRP rod using a tightening strap
• Slot width (l x w) 17 x 6 mm

Technical data

Technical data

Dimension	200x140x40
Dimension B	96 mm
Dimension d min.	30 mm

Dimension d Ø	16 mm
Dimension L	81 mm
Material	Stainless steel

All types

All types

Types	Dimension B	Dimension d min.	Dimension d Ø	Dimension L	Item no.	Quantity	SSU
101 R-16	96 mm	30 mm	16 mm	81 mm	5408994	piece	10 piece

Downloads

Data sheet 101 R-16 / 5408994 , 0.20MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

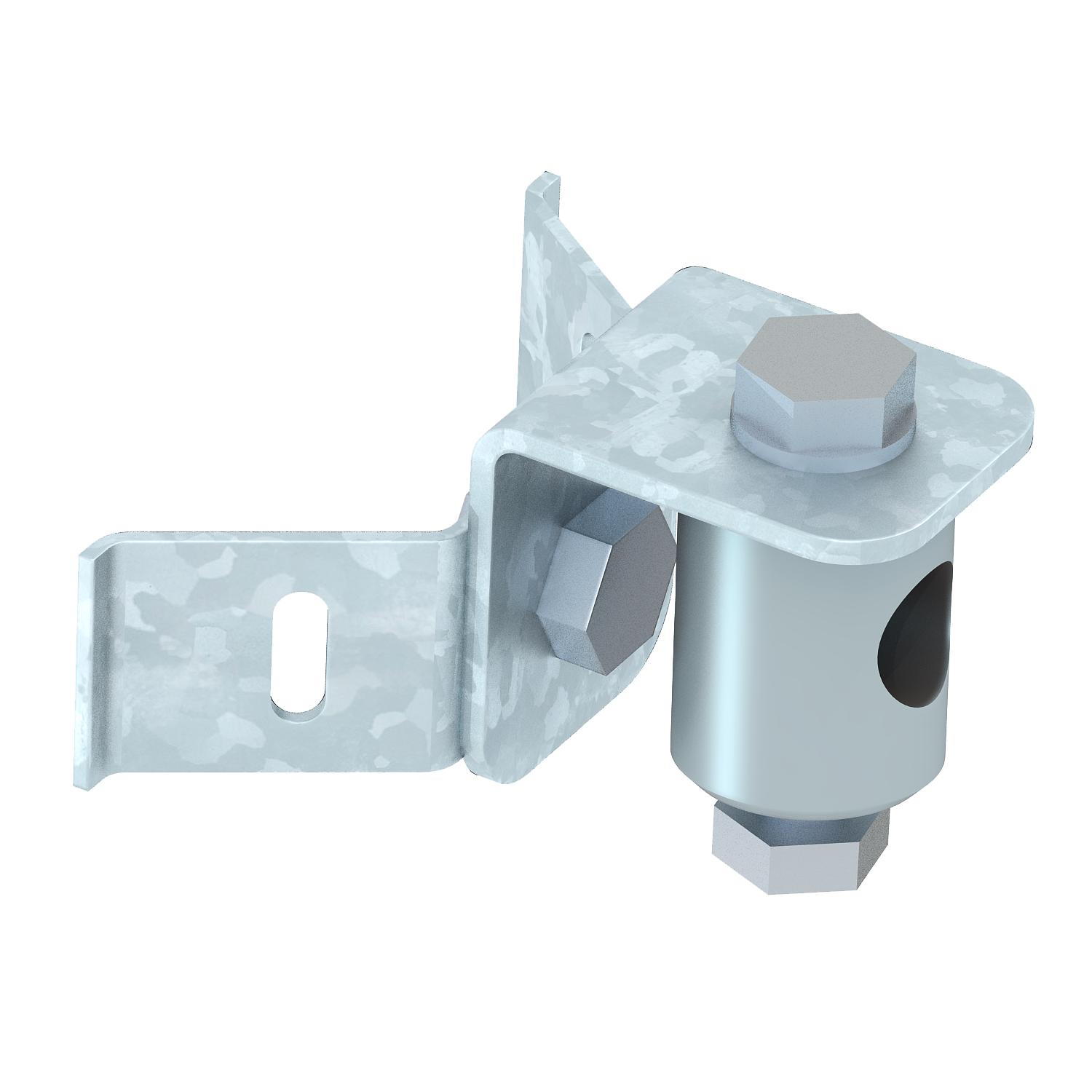

Product graphic 101 R-16 / 5408994, 73.27 kB, jpg

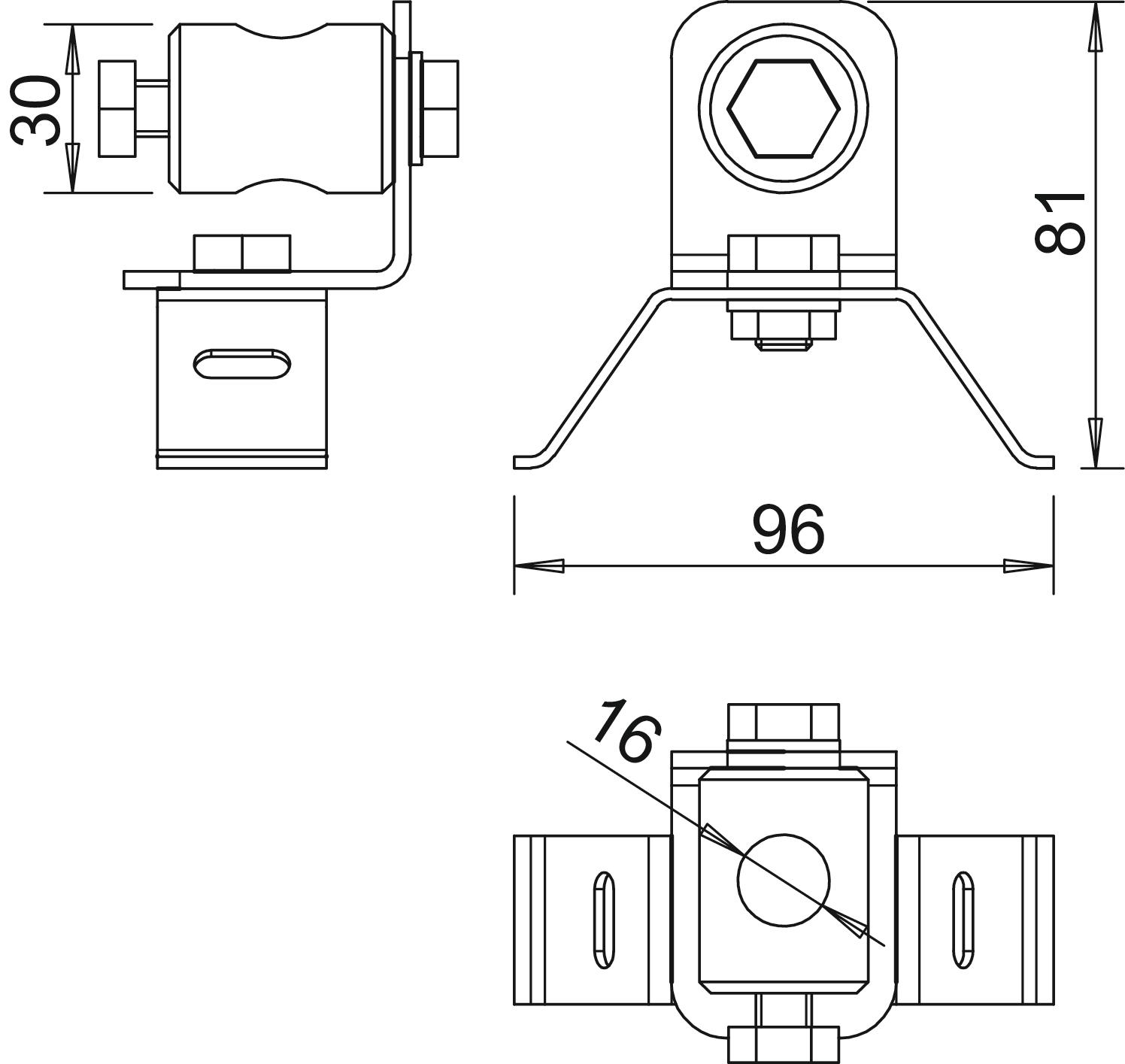

Scale drawing 101 R-16 / 5408994, 97.23 kB, jpg

101 R-16 / 5408994

5408994_KSTP1.stp, 478.28 kB
