Pipe sleeve with 2 fastening straps
Item no. 7202200 | EAN 4012195856559
- Product description
-
Product description

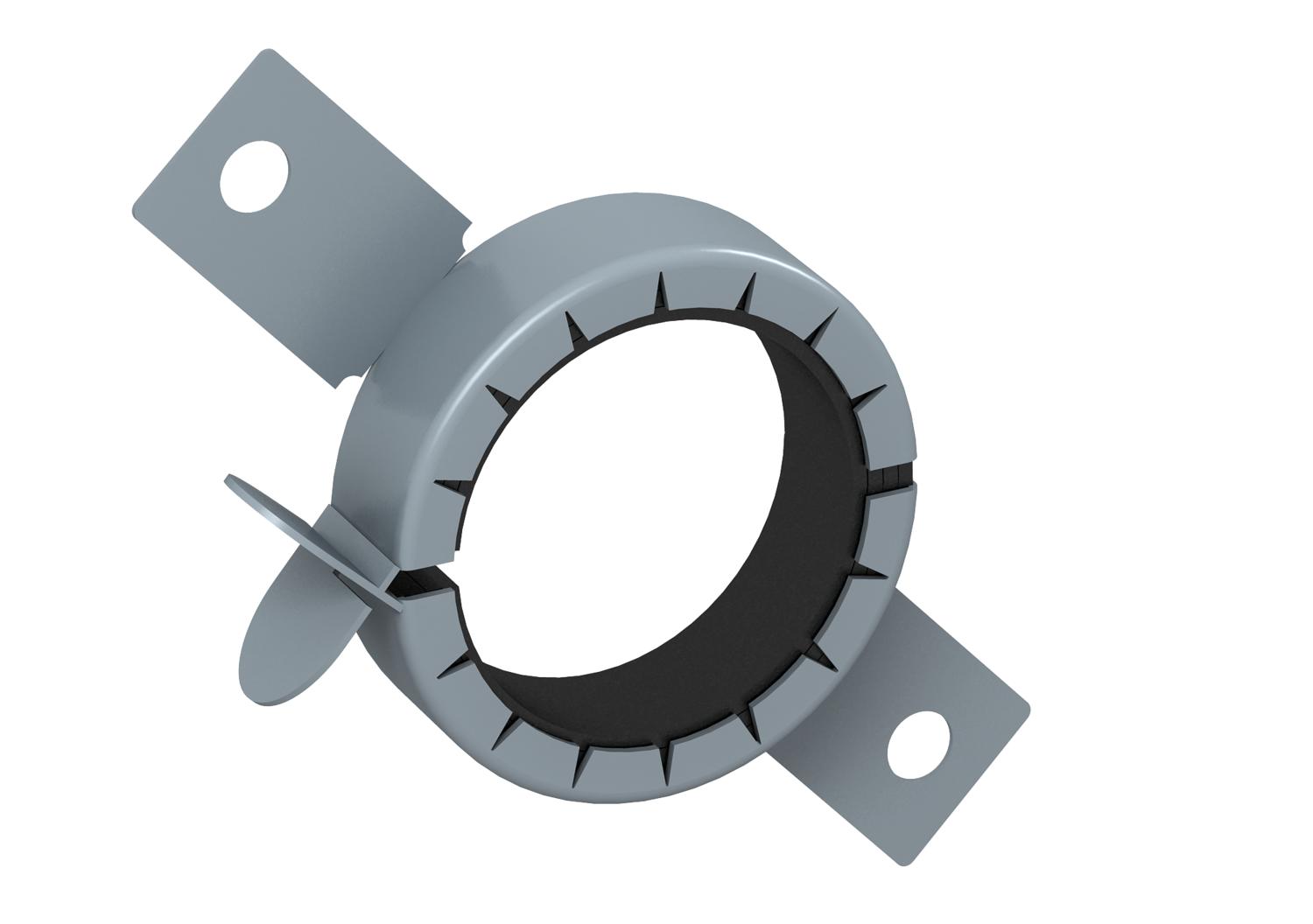

Pipe sleeve for combustible pipes.
If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors or M6 threaded rods.
-
- Technical data
-
Technical data
Accessories required yes Colour Grey Dimension Ø32mm For pipe diameter, max. 34 mm For pipe diameter, min. 32 mm Material Intumescent material Dimensions

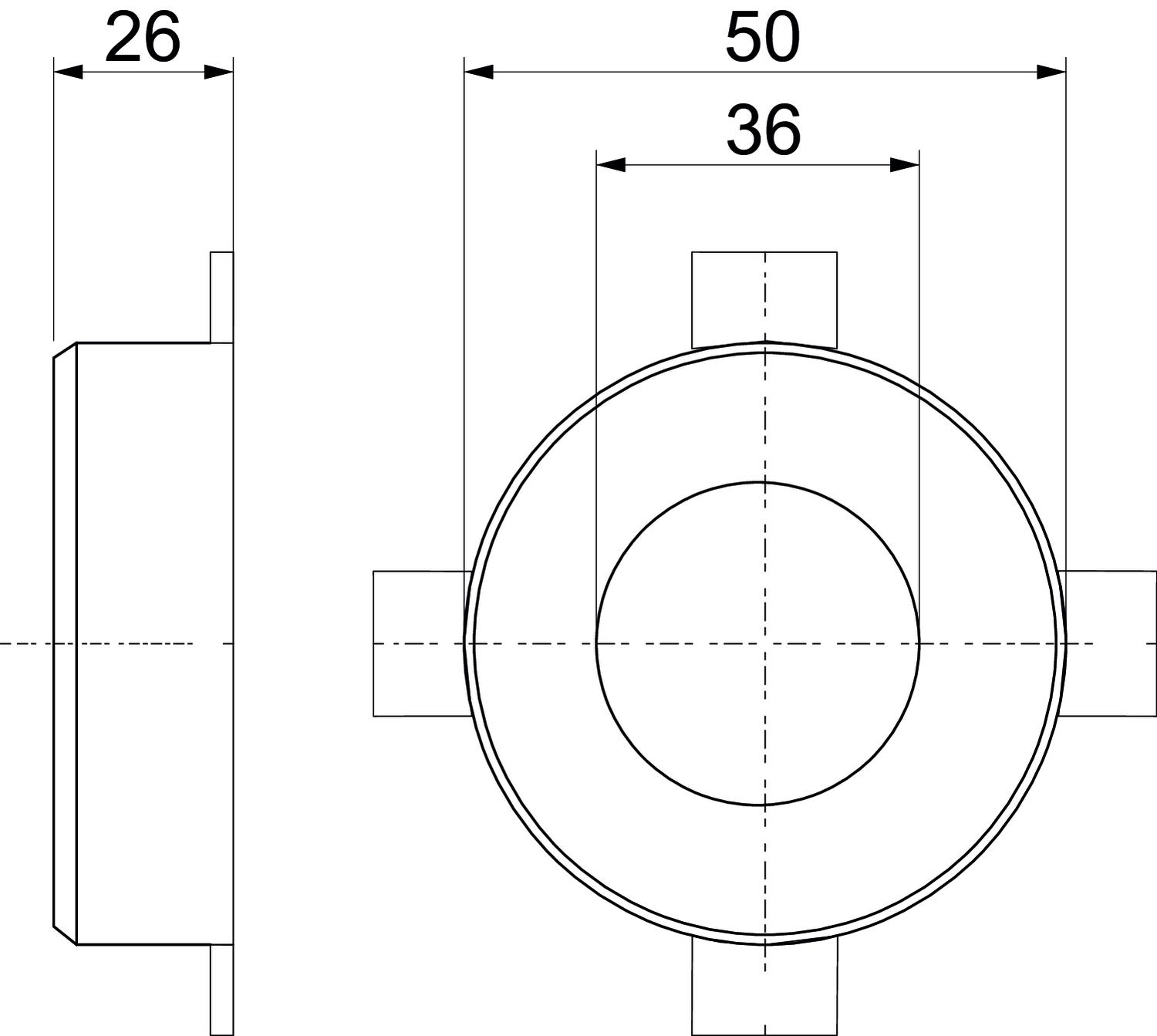

Dimension d 36 mm Dimension d min. 50 mm Dimension h 26 mm Height 26 mm Length 50 mm Width 50 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Insulation layer creator in a cartridge
DSX-K 7202300 1 piece
Identification plate DE
KS-S DE 7205425 1 piece - Downloads
-
Data sheet TCX-032 / 7202200 , 0.19MB , pdfBrochure Brochure The Experts , 2.10MB , pdfREACH Declaration of conformity TCX-032 / 7202200 , 0.12MB , pdfRoHS Declaration of conformity TCX-032 / 7202200 , 0.12MB , pdfApproval certificate European Technical Approval, PYROCOMB® , 0.13MB , pdfApproval certificate European technical approval, PYROCOMB® Tubes , 0.16MB , pdfSelection aid Selection aid, insulation , 0.25MB , pdfMounting instructions Mounting instructions, PYROCOMB® Tubes , 0.08MB , pdfSafety data sheet Safety data sheet, PYROCOMB® pipe sleeve , 0.06MB , pdf
