- Product description
-

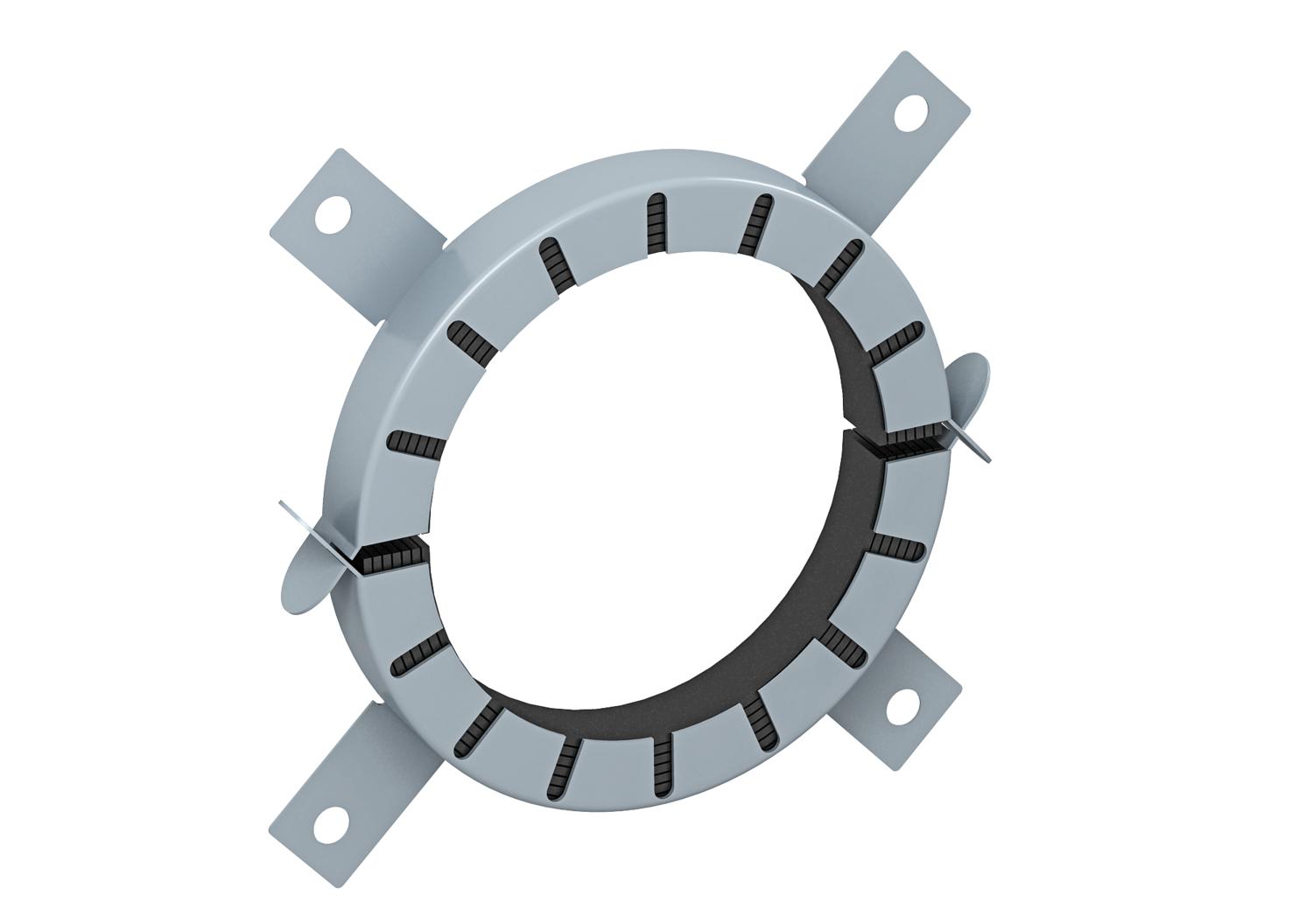

Product descriptionPipe sleeve for combustible pipes.
If there is a fire, fire protection inserts inside the sheet steel housing expand, exerting a very great pressure onto the burning thermoplastic pipes. For interior application. Fastening with anchors of M6 threaded rods up to size 75 mm, then M8.
- Technical data
-
Technical data

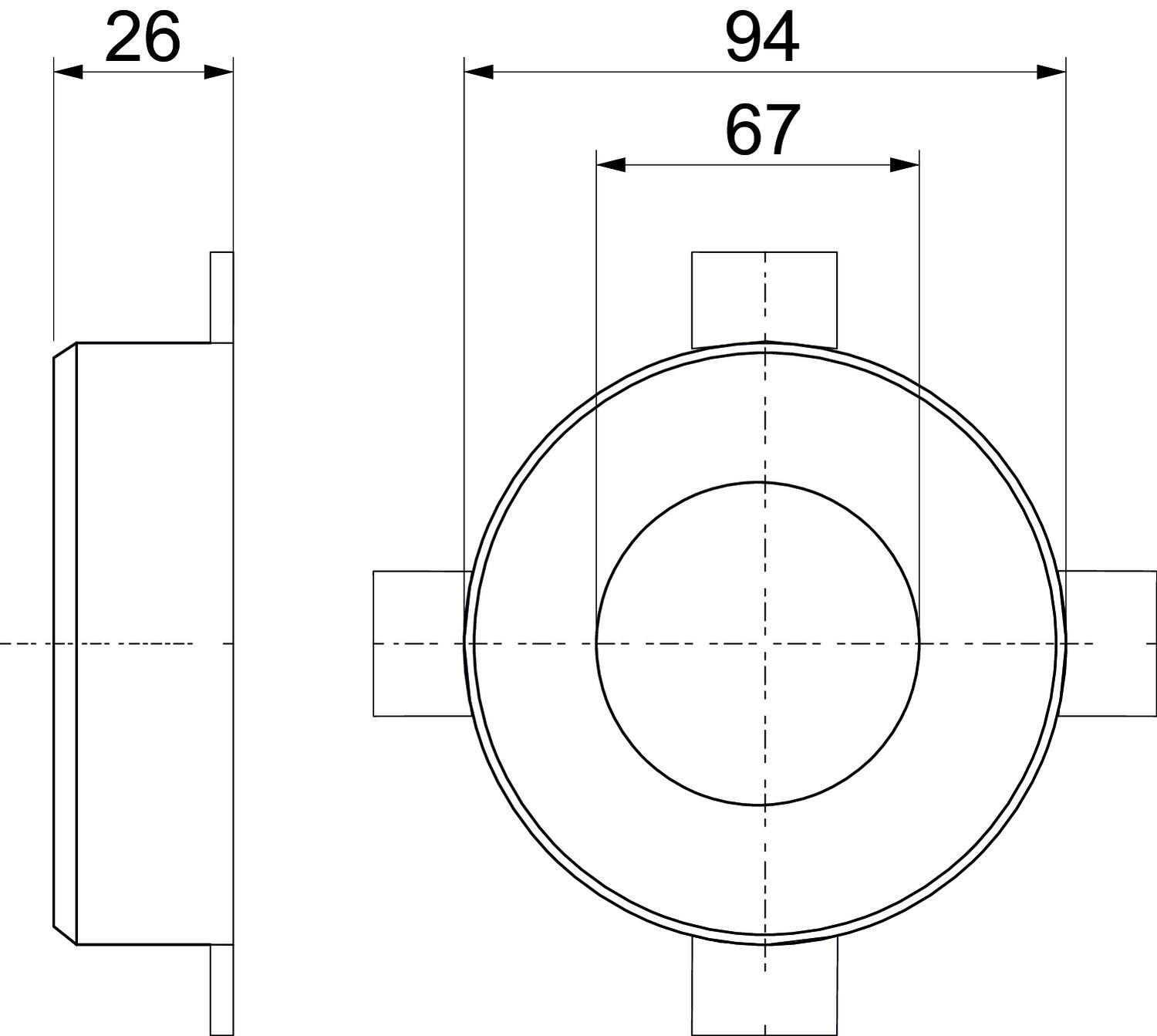

Accessories required yes Colour Grey Dimension Ø63mm Dimension d 67 mm Dimension d min. 94 mm Dimension h 26 mm For pipe diameter, max. 65 mm For pipe diameter, min. 63 mm Height 26 mm Length 94 mm Material Intumescent material Width 94 mm - All types
-
All types
- Downloads
-
Data sheet TCX-063 / 7202204 , 0.20MB , pdfBrochure Brochure The Experts , 2.10MB , pdfEU declaration of conformity TCX-063 / 7202204 , 0.11MB , pdfDeclaration of performance TCX-063 / 7202204 , 0.78MB , pdfDeclaration of performance TCX-063 / 7202204 , 0.73MB , pdfREACH Declaration of conformity TCX-063 / 7202204 , 0.12MB , pdfRoHS Declaration of conformity TCX-063 / 7202204 , 0.12MB , pdfApproval certificate European Technical Approval, PYROCOMB® , 0.13MB , pdfApproval certificate European technical approval, PYROCOMB® Tubes , 0.16MB , pdfSelection aid Selection aid, insulation , 0.86MB , pdfMounting instructions Mounting instructions, PYROCOMB® Tubes , 0.08MB , pdfSafety data sheet Safety data sheet, PYROCOMB® pipe sleeve , 0.06MB , pdf
