Plasterboard anchor

Item no. 3483214 | EAN 4012195418191

3483214 / 910 GKDM 12x30
12 mm
30 mm
Product description

Product description

To fasten components to plasterboard or fibre composite plates.

Minimum plate thickness: 12 mm.

For Ø 4.5 Golden Sprint or Sprint screws.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Diameter 12 mm

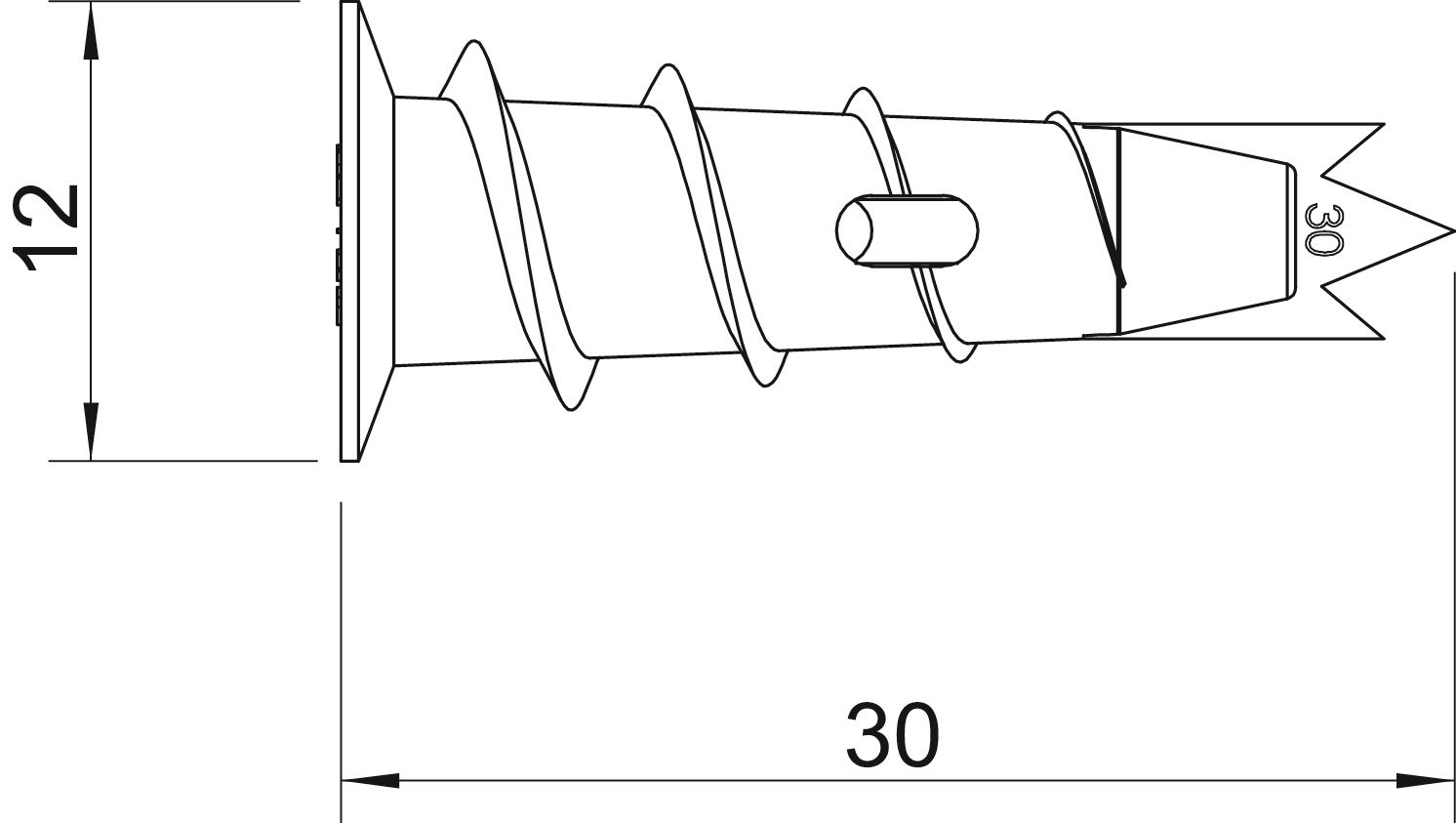

Dimension Ø12x30
Dimension D 12 mm
Dimension L 30 mm
Length 30 mm
Material Die-cast zinc
Permitted load range, tension zone 0,04
Version for Plasterboard anchor
With bolts no
With thread yes
All types

All types

Types Diameter Length Item no. Quantity SSU
910 GKDM 12x30 12 mm 30 mm 3483214
100 piece
