Plasterboard anchor
Item no. 3483239 | EAN 4012195418207
- Product description
-
Product descriptionTo fasten components to plasterboard or fibre composite plates.
Min. plate thickness: 5 mm.
-
- Technical data
-
Technical data

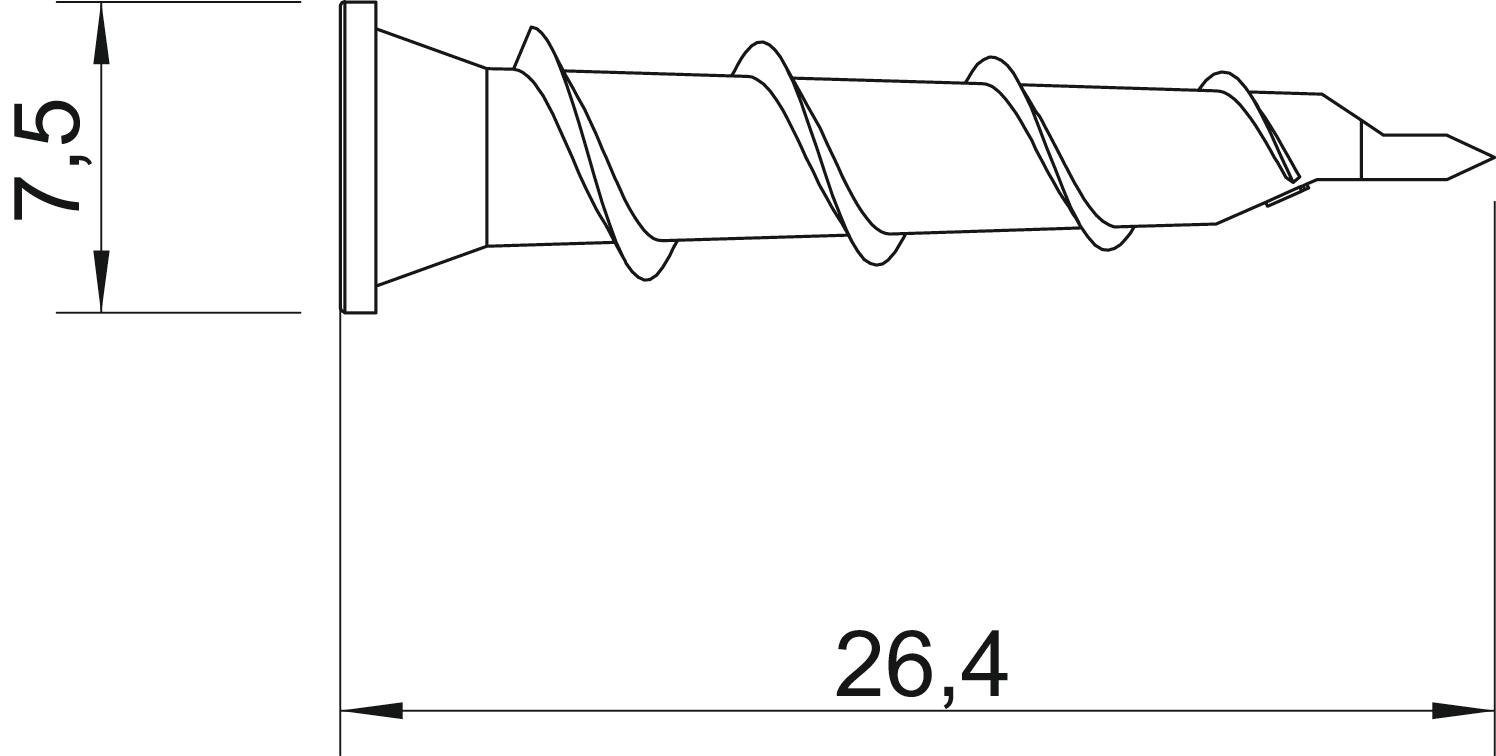

Diameter 7,5 mm Dimension Ø6x25 Dimension D 7,5 mm Dimension L 26,4 mm Length 26,4 mm Material Die-cast zinc Permitted load range, tension zone 0,04 With bolts no With thread yes - All types
- Downloads
-
Data sheet 910 GKSM 6x25 / 3483239 , 0.10MB , pdfCatalogue Fastening materials , 19.78MB , pdf
