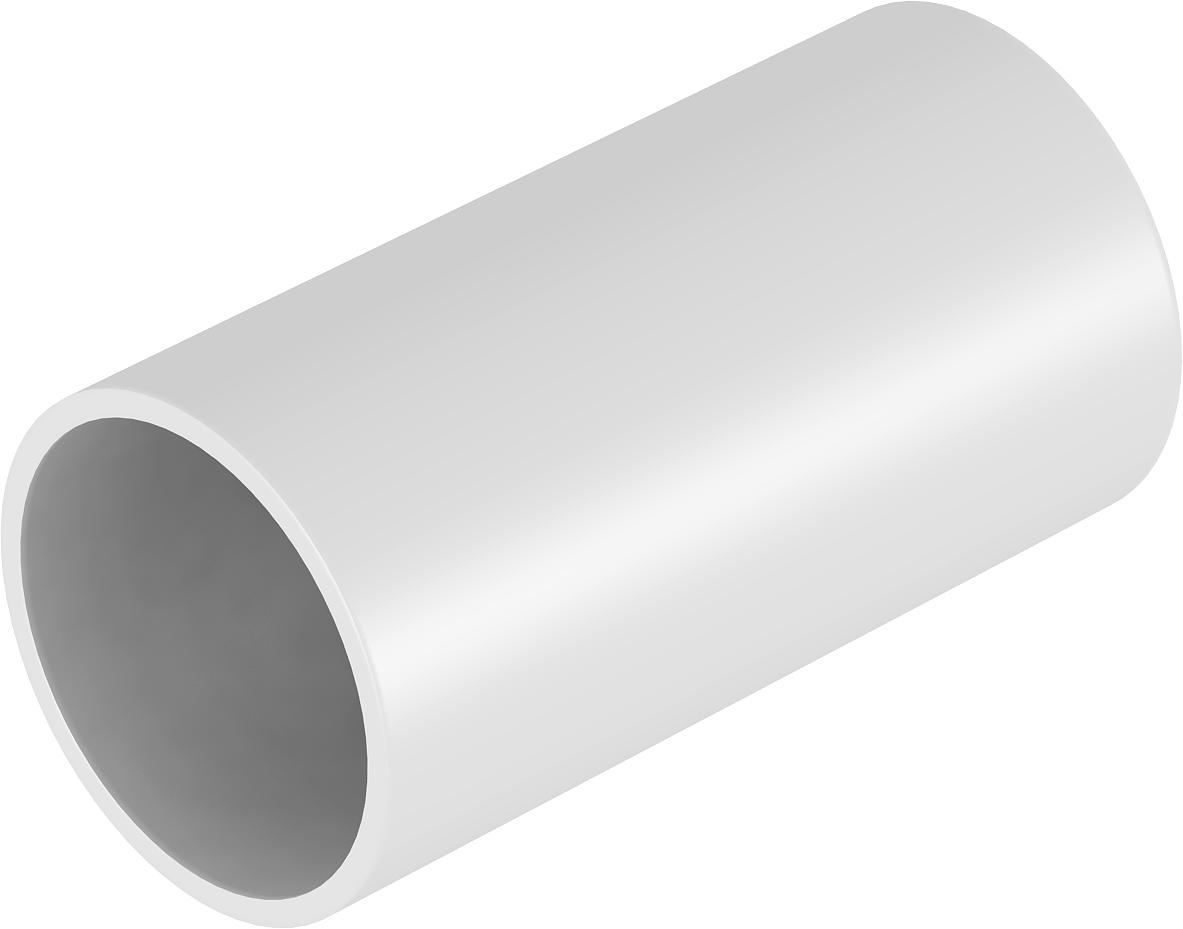

Plastic pipe connector, halogen-free

Item no. 2047729 | EAN 4012195623090

Product description
Product description
Accessory part: Pipe connector to EN 61386 (Cofe: 4421), for halogen-free installation pipes and bends without a thread.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Thread metric
Technical data

Technical data

Colour Light grey; RAL 7035

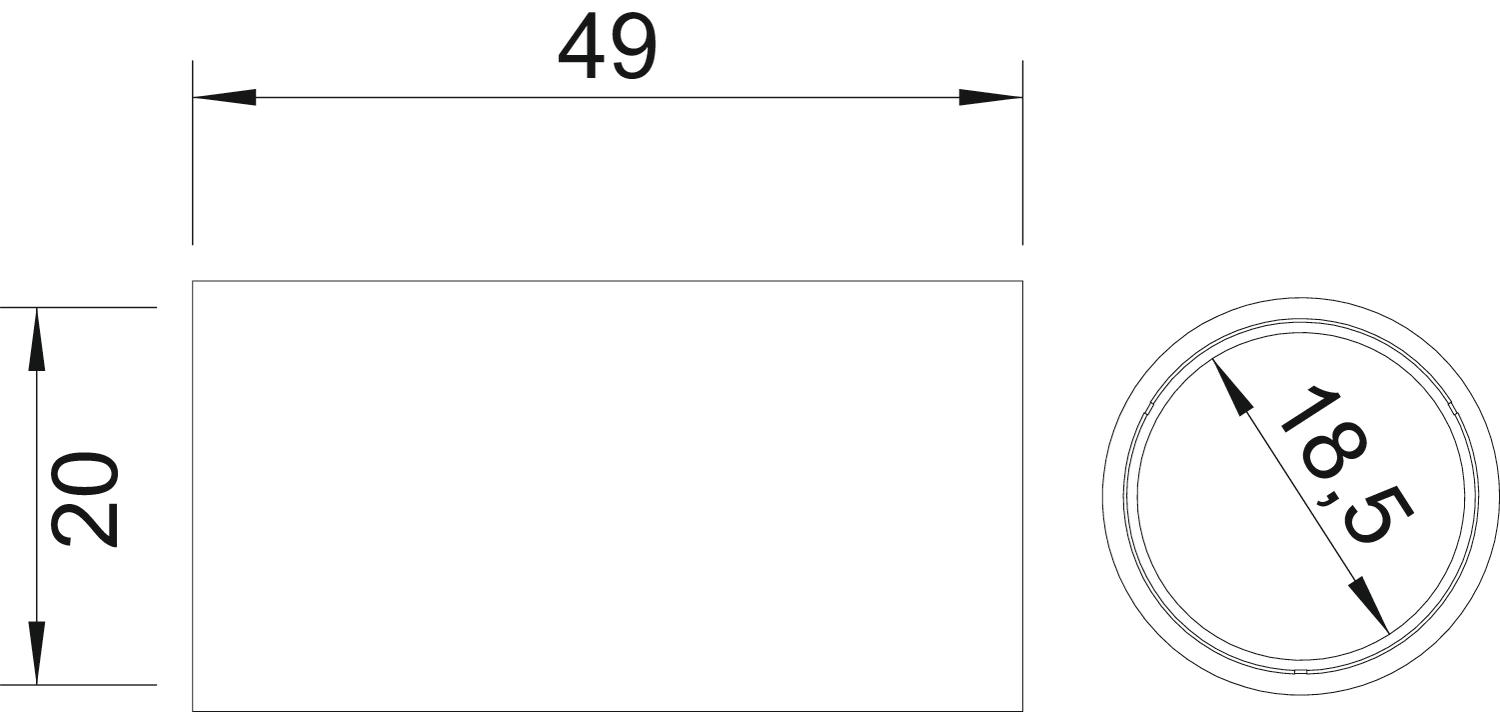

Dimension Ø20mm
Dimension A 18,5 mm
Dimension D 20 mm
Dimension L 40 mm
Dimension m (mm) M20
Halogen-free yes
Length 49 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Size M20
All types

All types

Types Dimension A Dimension D Dimension m (mm) Item no. Quantity SSU
KVH16 LGR 14.5 mm 16 mm M16 2047728
50 piece
KVH20 LGR 18.5 mm 20 mm M20 2047729
50 piece
KVH25 LGR 23.5 mm 25 mm M25 2047730
50 piece
KVH32 LGR 30.5 mm 32 mm M32 2047731
25 piece
KVH40 LGR 38.5 mm 40 mm M40 2047732
25 piece
KVH50 LGR 48.5 mm 50 mm M50 2047733
10 piece
KVH63 LGR 61.5 mm 63 mm M63 2047734
5 piece
