Plastic pipe connector, halogen-free

Item no. / Types

Dimension A

Dimension D

Dimension m (mm)

Product description

Product description

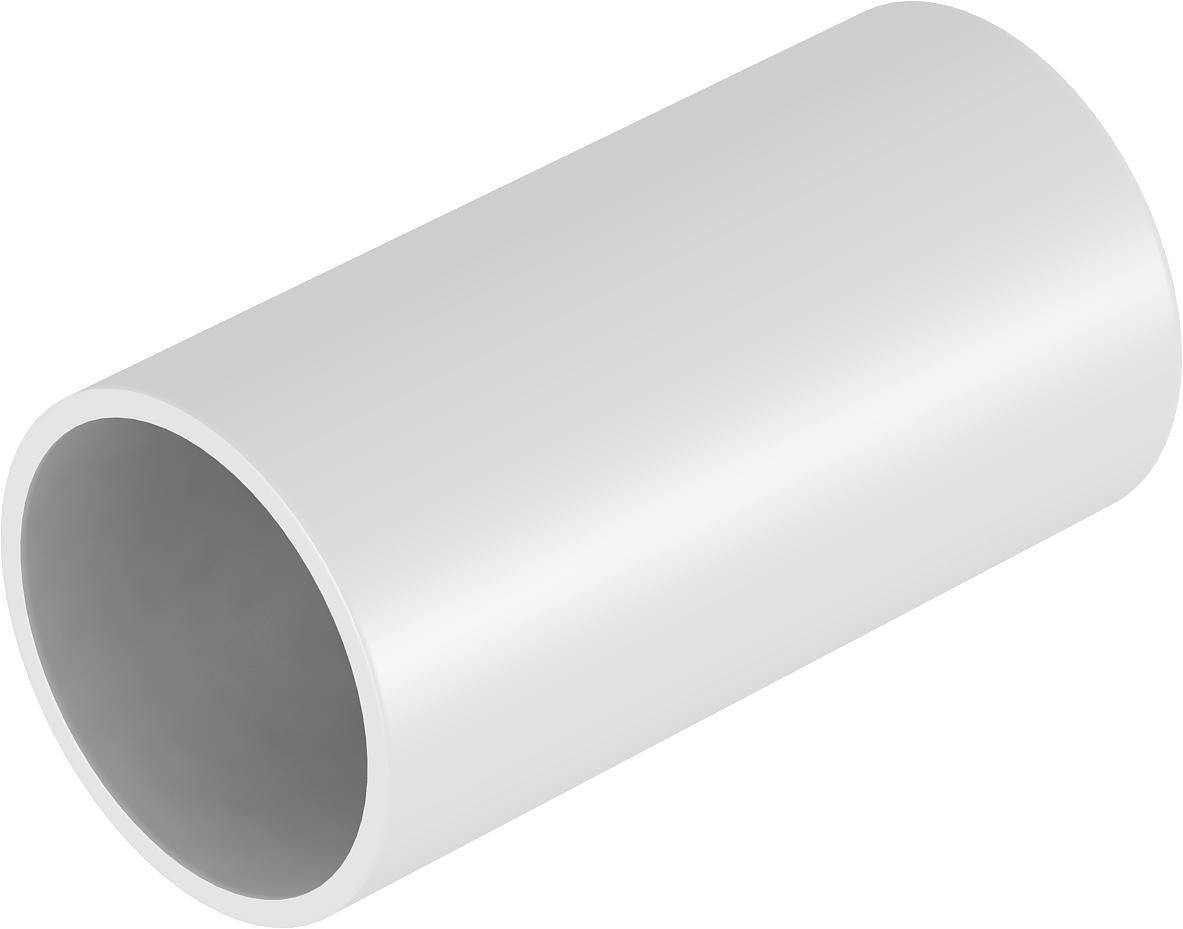

Accessory part: Pipe connector to EN 61386 (Cofe: 4421), for halogen-free installation pipes and bends without a thread.

Technical data

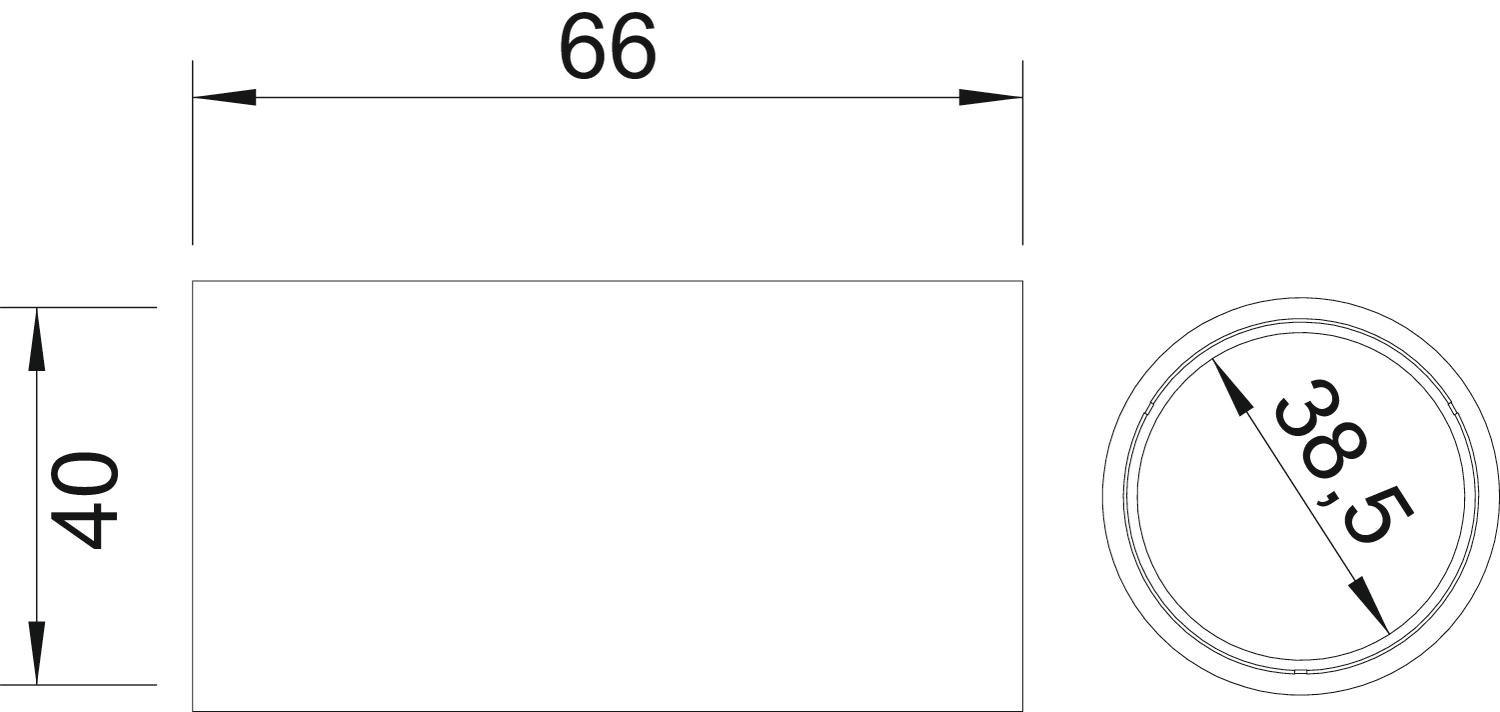

Dimension m (mm)	M40
Halogen-free	yes
Length	66 mm
Material	Polycarbonate/Acrylnitrile-butadiene-styrene
Size	M40

All types

All types

Types	Dimension A	Dimension D	Dimension m (mm)	Item no.	Quantity	SSU
KVH16 LGR	14.5 mm	16 mm	M16	2047728	piece	50 piece
KVH20 LGR	18.5 mm	20 mm	M20	2047729	piece	50 piece
KVH25 LGR	23.5 mm	25 mm	M25	2047730	piece	50 piece
KVH32 LGR	30.5 mm	32 mm	M32	2047731	piece	25 piece
KVH40 LGR	38.5 mm	40 mm	M40	2047732	piece	25 piece
KVH50 LGR	48.5 mm	50 mm	M50	2047733	piece	10 piece
KVH63 LGR	61.5 mm	63 mm	M63	2047734	piece	5 piece
