Plastic trunking cover, smooth 2000 | Stone grey; RAL 7030
morepic-1 morepic-2 video-1

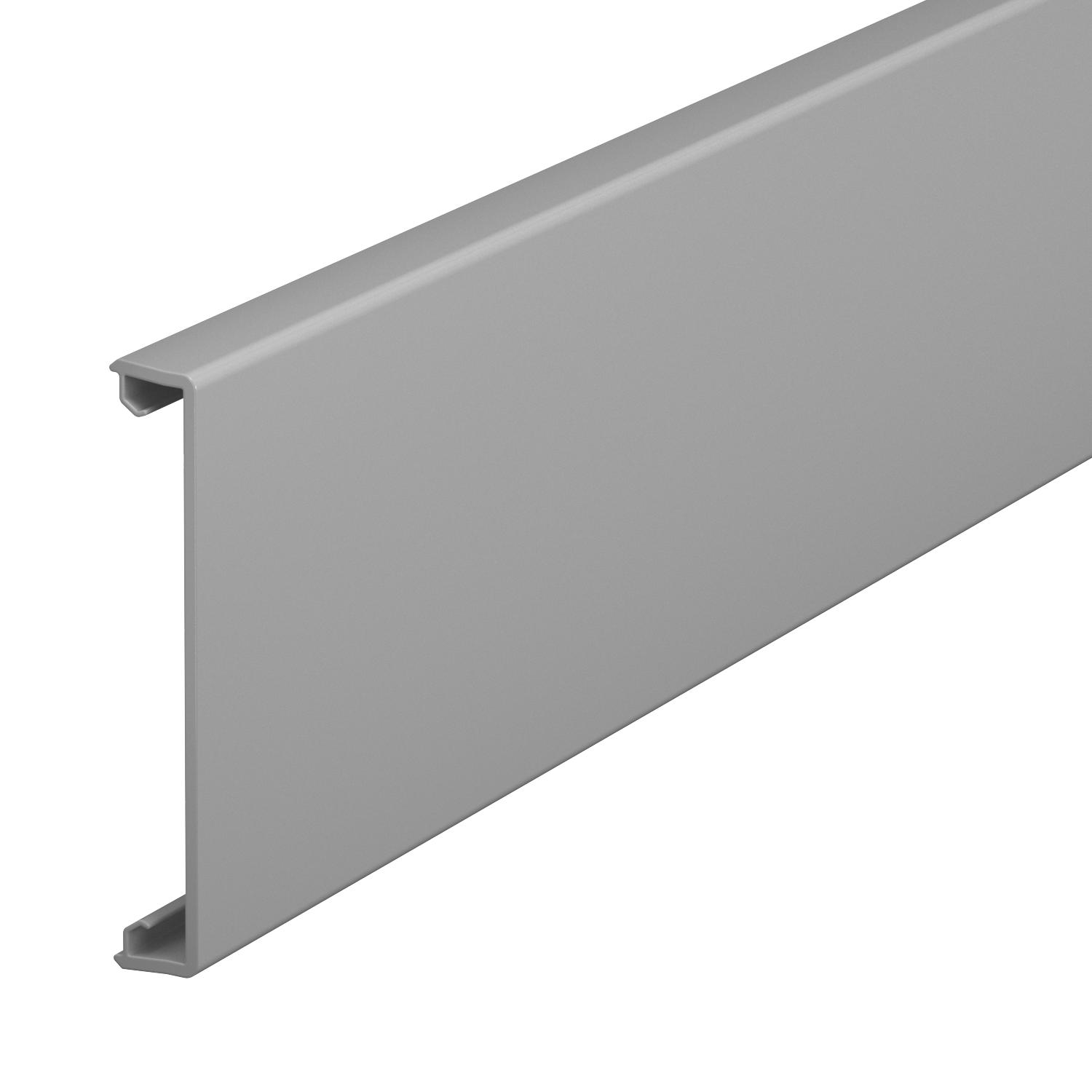

Plastic trunking cover, smooth

Item no. 6278686 | EAN 4012195666486

2000 mm
Product description
Product description

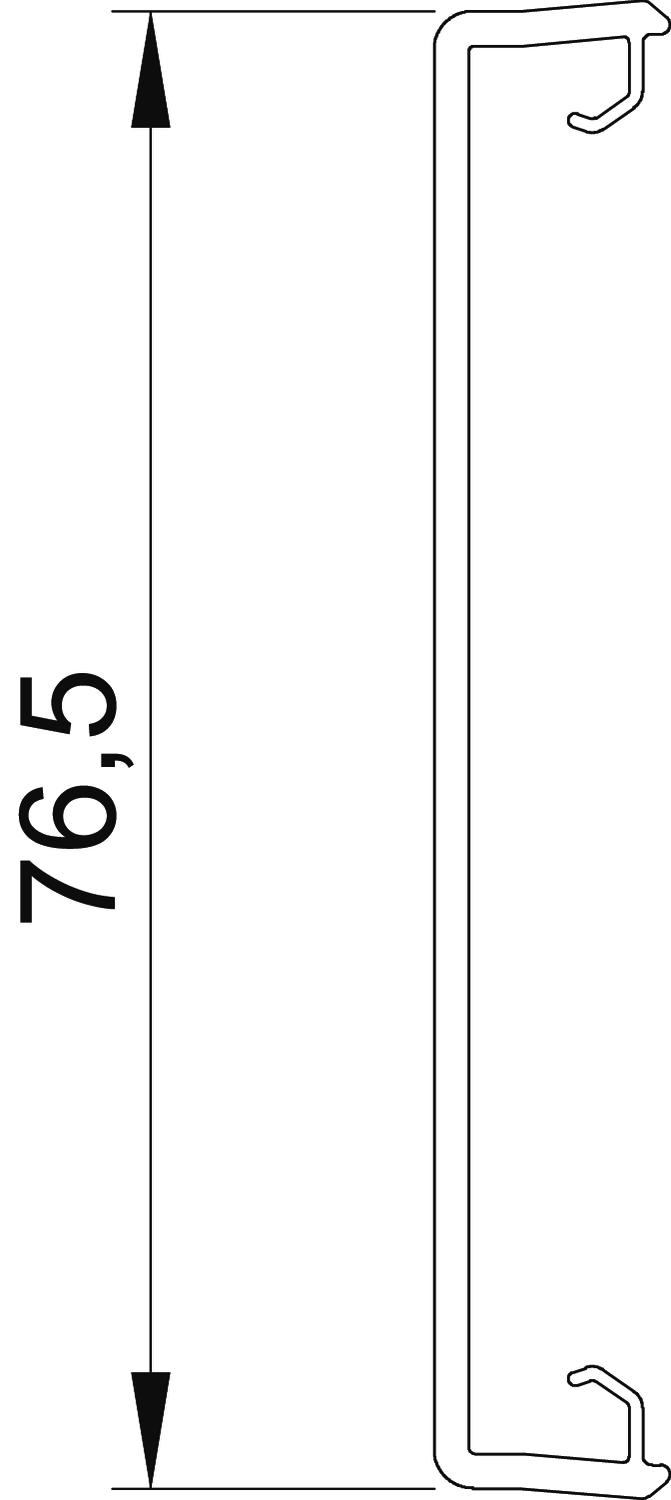

Smooth trunking cover, for closing device installation trunking with 76.5 mm system opening.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Stone grey; RAL 7030
Cover mounting type Internal
Dimension 80x2000mm
Height 12 mm
Length 2000 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -15 °C
Protection rating IP30
Protection rating IK code IK08
Version for Smooth
Width 76,5 mm
All types

All types

Types Length Colour Item no. Quantity SSU
GK-OTGRW 2000 mm Pure white; RAL 9010 6278680
16 m
GK-OTGCW 2000 mm Cream; RAL 9001 6278681
16 m
GK-OTGLGR 2000 mm Light grey; RAL 7035 6278682
16 m
GK-OTGGR 2000 mm Stone grey; RAL 7030 6278686
16 m
Downloads

Download

Download

EU declaration of conformity GK-OTGGR / 6278686 , 0.13MB , pdf
Download
UK Declaration of Conformity GK-OTGGR / 6278686 , 0.14MB , pdf
Download

Download

Download
Download

No invitation to tender text is available for this product.
