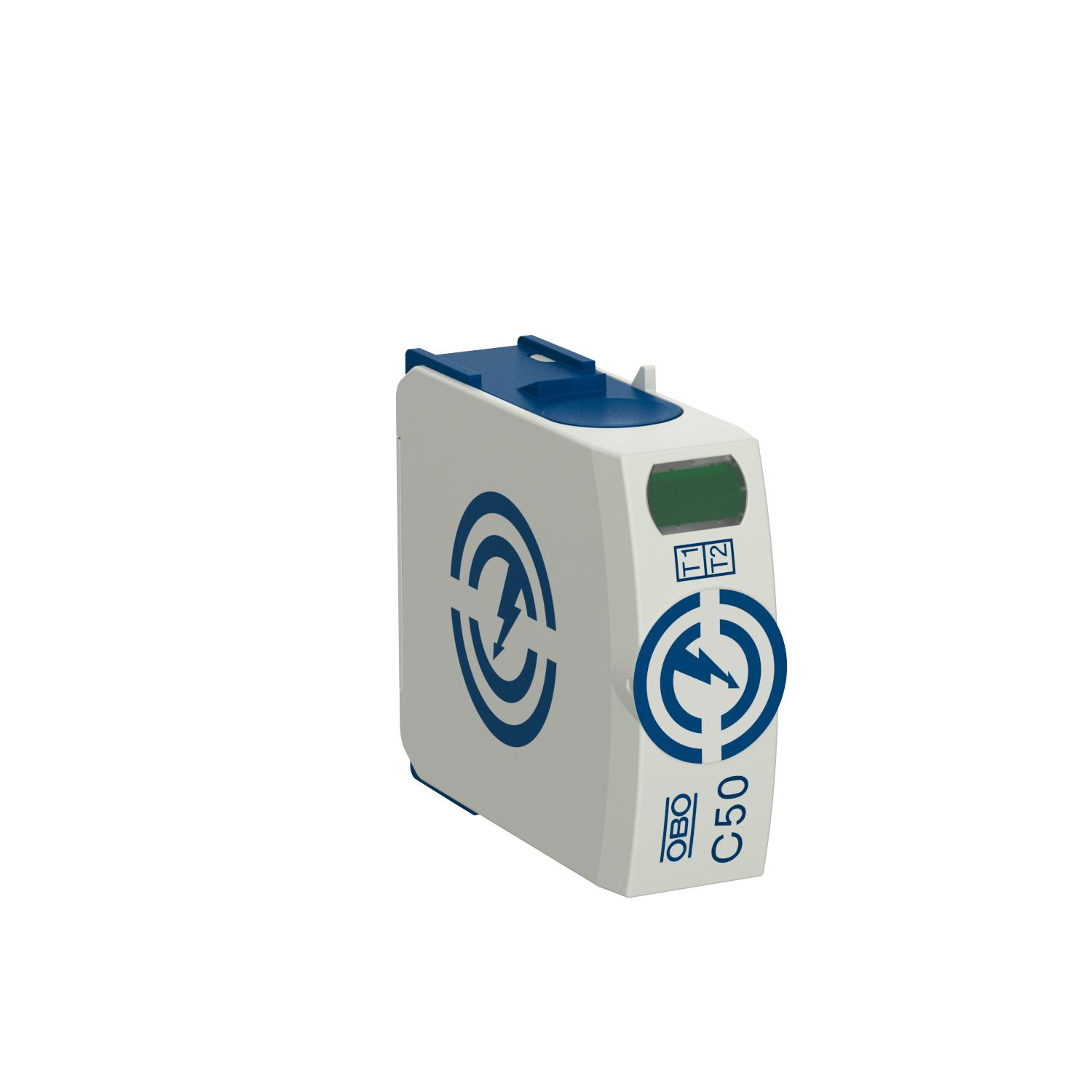

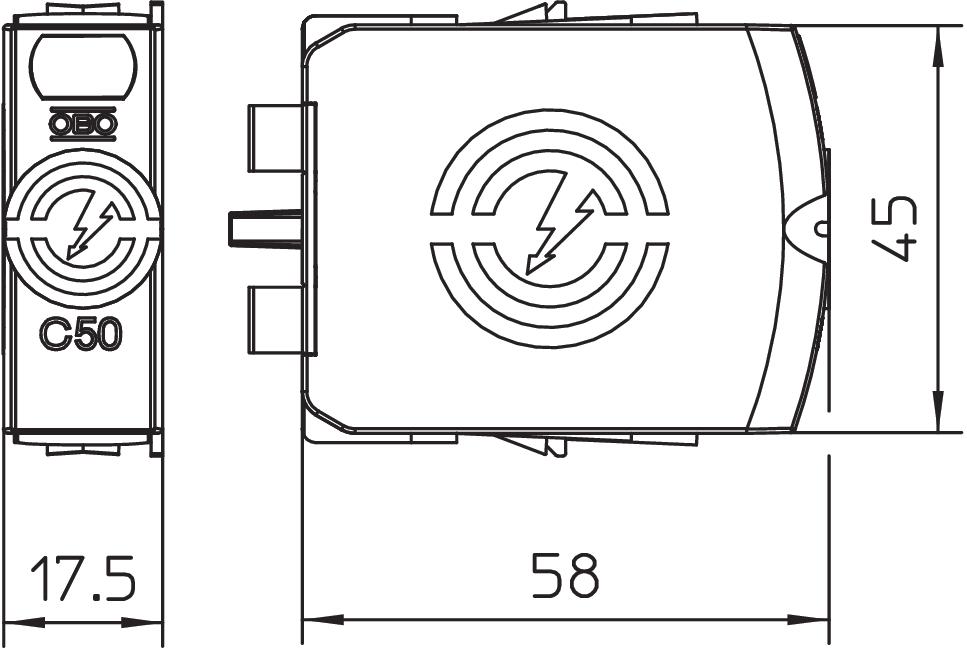

Plug-in arrester NPE-C50
Item no. 5095609 | EAN 4012196337620

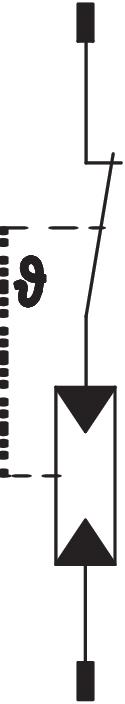

- Product description
-
Product descriptionUpper part NPE, lightning current combination arrester, type 1+2
• For lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• Lightning current discharge capacity up to 50 kA (10/350) in total
• Modular, plug-in arrester with dynamic cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Plastic according to UL 94 V-0
* Complete = Plug-in arrester and base
-
- Technical data
-
Technical data
Approvals VDE Blow-out no Conductor cross-section, flexible (fine-wire), max. 35 mm² Conductor cross-section, flexible (fine-wire), max. 2 AWG Conductor cross-section, flexible (fine-wire), min. 16 AWG Conductor cross-section, flexible (fine-wire), min. 1,5 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 2 AWG Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 1,5 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 16 AWG Dimension 255V Follow current quenching capacity (eff) [N-PE] 0,1 kA Housing material surge protection components PA UL 94 V-0 Installation type DIN rail 35 mm Integrated back-up fuse no Lightning surge current (10/350 μs) 50 kA Lightning surge current (10/350) 50 kA Maximum continuous voltage AC 255 V Maximum discharge current (8/20 μs) 50 kA Maximum discharge current (8/20 μs) [L-N] 50 kA Maximum discharge current (8/20 μs) [N-PE] 80 kA Minimum distance 1,5 mm Nominal discharge current (8/20 µs) 30 kA Nominal discharge current (8/20 µs) [L-N] 30 kA Nominal discharge current (8/20 µs) [N-PE] 50 kA Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole number 1 Pole version N/PE Protection rating IP20 Remote signalling no Response time <25 ns Short-circuit resistance for max. mains-side overcurrent protection 25 kA Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II SPD to UL 1449 Type 4 TN-C-S network form yes TN-S network form yes Torque 4 Nm TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms 1200 V TT network form yes - All types
- Downloads
-
Data sheet C50-0-255 / 5095609 , 0.25MB , pdfEU declaration of conformity C50-0-255 / 5095609 , 0.10MB , pdfREACH Declaration of conformity C50-0-255 / 5095609 , 0.28MB , pdfRoHS Declaration of conformity C50-0-255 / 5095609 , 0.28MB , pdfLabel approval VDE symbol approval, V50 , 0.12MB , pdfLabel approval ÖVE certificate V50 series, V80 series , 0.37MB , PDFLabel approval UL certificate, V20 and V50 , 0.26MB , pdfMounting instructions CombiController V50-...-280 , 2.23MB , pdf
