Plug-in arrester, total spark gap between N and PE 255 V

Item no. 5095599 | EAN 4012195027652

Product description
Product description

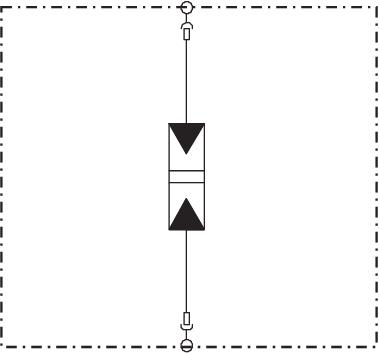

Plug-in total discharge gap for use between neutral lines (N) and protector (PE) Suitable for use in combination with:

• CombiController, type V 25-B+C
• SurgeController, type V 20-C
• SurgeController, type V 10-C
* Complete = Plug-in arrester and base
  • Russia, GOST The State Committee for Standards
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • Combination protection device made of type 1 and type 2
  • Transition from LPZ 0 to LPZ 2
Technical data

Connectivity options

Arrester surge current (8/20 µs) [total] 30 kA
Blow-out no
Dimension 255V
Follow current quenching capacity (eff) [N-PE] 0,1 kA
Lightning protection zone LPZ 0→2
Lightning surge current (10/350 μs) 25 kA
Max. mains-side overcurrent protection 160
Maximum back-up fuse 160 A
Maximum continuous voltage AC 255 V
Maximum discharge current (8/20 μs) 50 kA
Nominal discharge current (8/20 µs) 30 kA
Nominal discharge current (8/20 µs) [N-PE] 30 kA
Nominal voltage AC (50/60 Hz) 230 V
Operating temperature, max. 80 °C
Operating temperature, min. -40 °C
Pole version 1
Protection rating IP20
Response time <100 ns
Signalling on device Visual
SPD to EN 61643-11 Type 1+2
SPD to IEC 61643-1 Class I+II
All types

All types

Types Pole version Maximum continuous voltage AC Protection rating Item no. Quantity SSU
C25BCONPE 1 255 V IP20 5095599
30 piece
C 25-B+C 0 - - - 5095603
1 piece
