- Product description
-
Product description

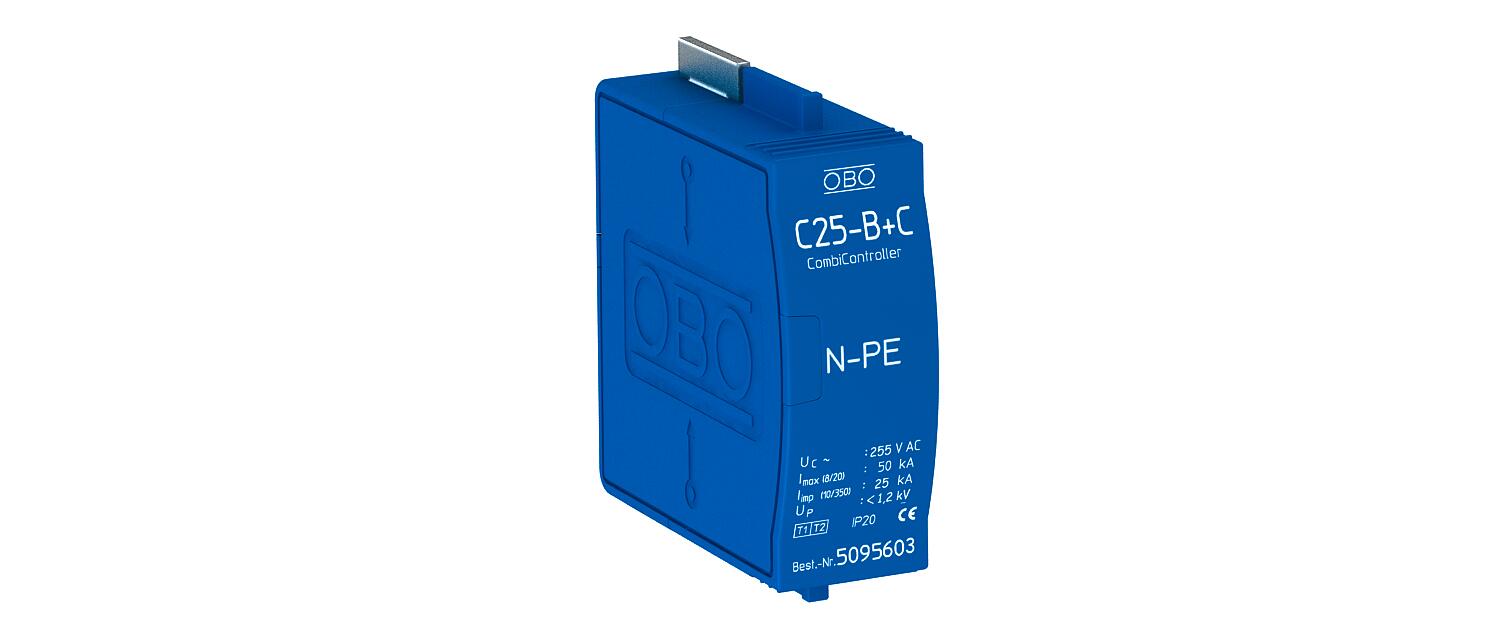

Plug-in total discharge gap for use between neutral lines (N) and protector (PE) Suitable for use in combination with:
• CombiController, type V 25-B+C
• SurgeController, type V 20-C
• SurgeController, type V 10-C
* Complete = Plug-in arrester and base
- Technical data
-
Connectivity options
Arrester surge current (8/20 µs) [total] 30 kA Blow-out no Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Dimension 255V Follow current quenching capacity (eff) [N-PE] 0,1 kA Installation type On basic element Lightning protection zone LPZ 0→2 Lightning surge current (10/350 μs) 25 kA Max. mains-side overcurrent protection 160 Maximum back-up fuse 160 A Maximum continuous voltage AC 255 Maximum discharge current (8/20 μs) 50 kA Network form Other Nominal discharge current (8/20 µs) 30 kA Nominal discharge current (8/20 µs) [N-PE] 30 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version N/PE Protection rating IP20 Remote signalling no Response time <100 ns Signalling on device None SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II Version for 1-pole cover; 255 V - All types
- Downloads
-
Data sheet C 25-B+C 0 / 5095603 , 0.18MB , pdfREACH Declaration of conformity C 25-B+C 0 / 5095603 , 0.12MB , pdfRoHS Declaration of conformity C 25-B+C 0 / 5095603 , 0.12MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdf
