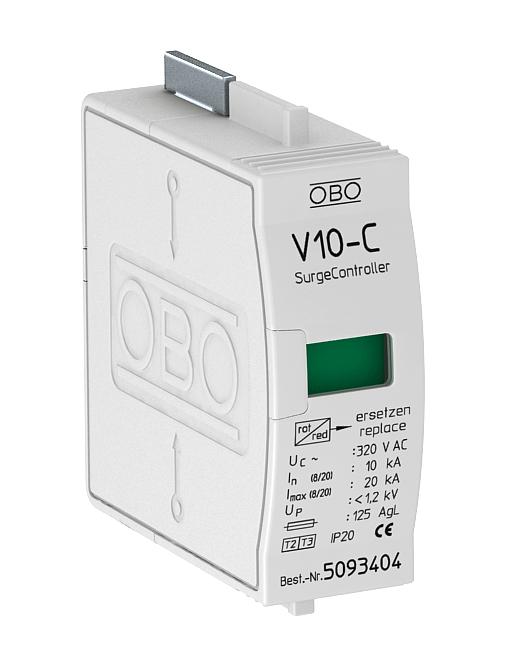

Plug-in arrester V10 320 V 1 | 320 | IP20

Plug-in arrester V10 320 V

Item no. 5093404 | EAN 4012195012832

Item no. / Types

Pole version	1

Maximum continuous voltage AC

Protection rating	IP20

Product description

Product description

Surge arrester, type 2+3 to EN 61643-11

• Plug-in upper part; upper part can be separated from base without tools
• Incl. thermal and dynamic cut-off unit and visual display of defects
• High current conductivity and long service life

Technical data

Connectivity options

Arrester surge current (8/20 µs) [total]	10 kA
Blow-out	no
Conductor cross-section, rigid (single-wire/multiwire), max.	35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	2,5 mm²
Dimension	320V
Installation type	On basic element
Lightning protection zone LPZ	1→3
Max. mains-side overcurrent protection	125
Maximum back-up fuse	125 A
Maximum continuous voltage AC	320 V
Maximum discharge current (8/20 μs)	20 kA
Network form	Other
Nominal discharge current (8/20 µs)	10 kA

Nominal voltage AC (50/60 Hz)	320 V
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Pole version	1
Protection level [L-N]	≤1,6
Protection rating	IP20
Remote signalling	no
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 2+3
SPD to IEC 61643-1	Class II+III
Version for	1-pole

All types

All types

Types	Pole version	Maximum continuous voltage AC	Protection rating	Item no.	Quantity	SSU
V10-C 0-150	1	150 V	IP20	5093400	piece	1 piece
V10-C 0-280	1	280 V	IP20	5093402	piece	1 piece
V10-C 0-320	1	320 V	IP20	5093404	piece	1 piece
V10-C 0-385	1	385 V	IP20	5093406	piece	30 piece
