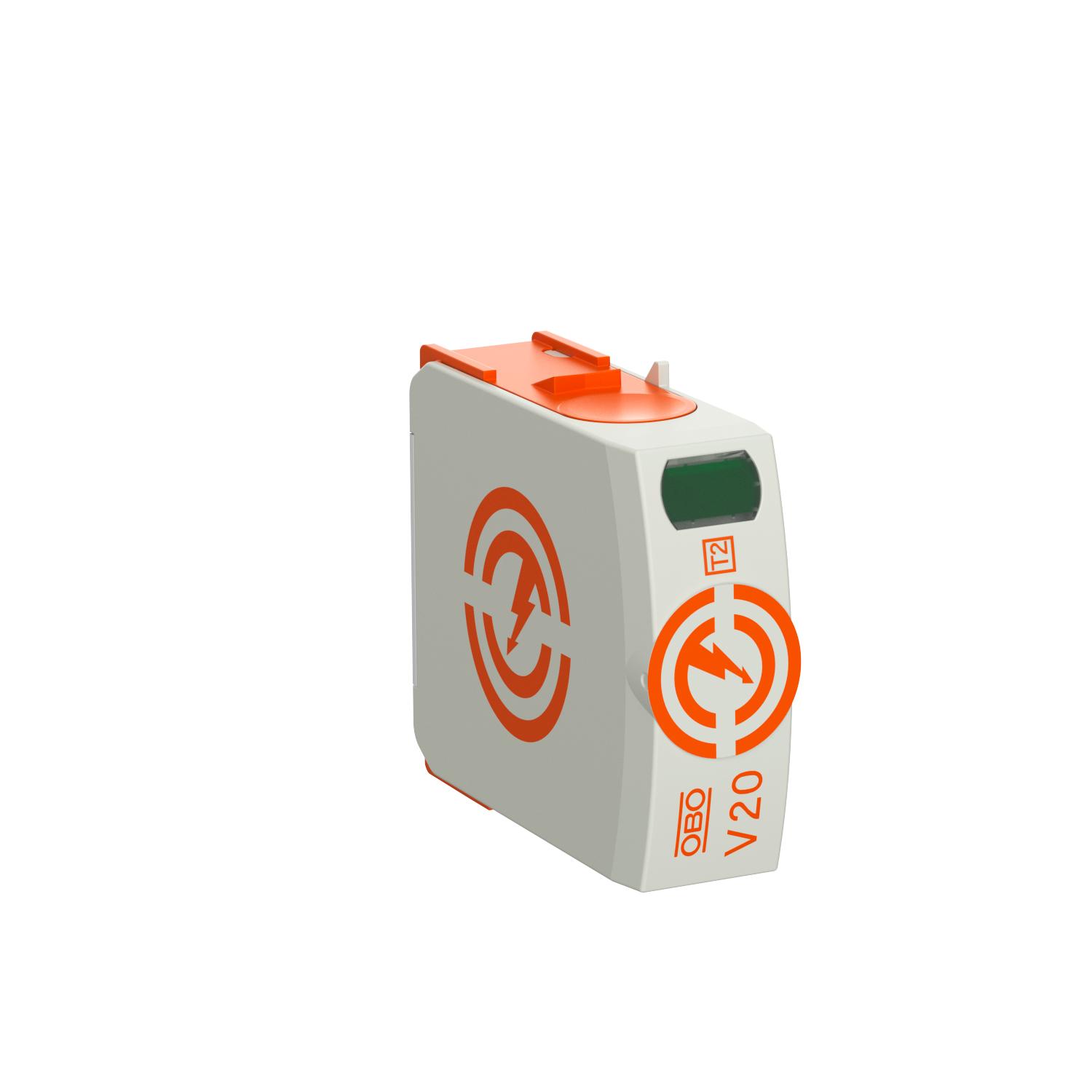

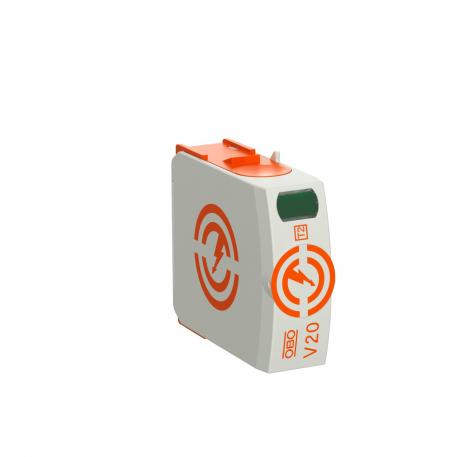

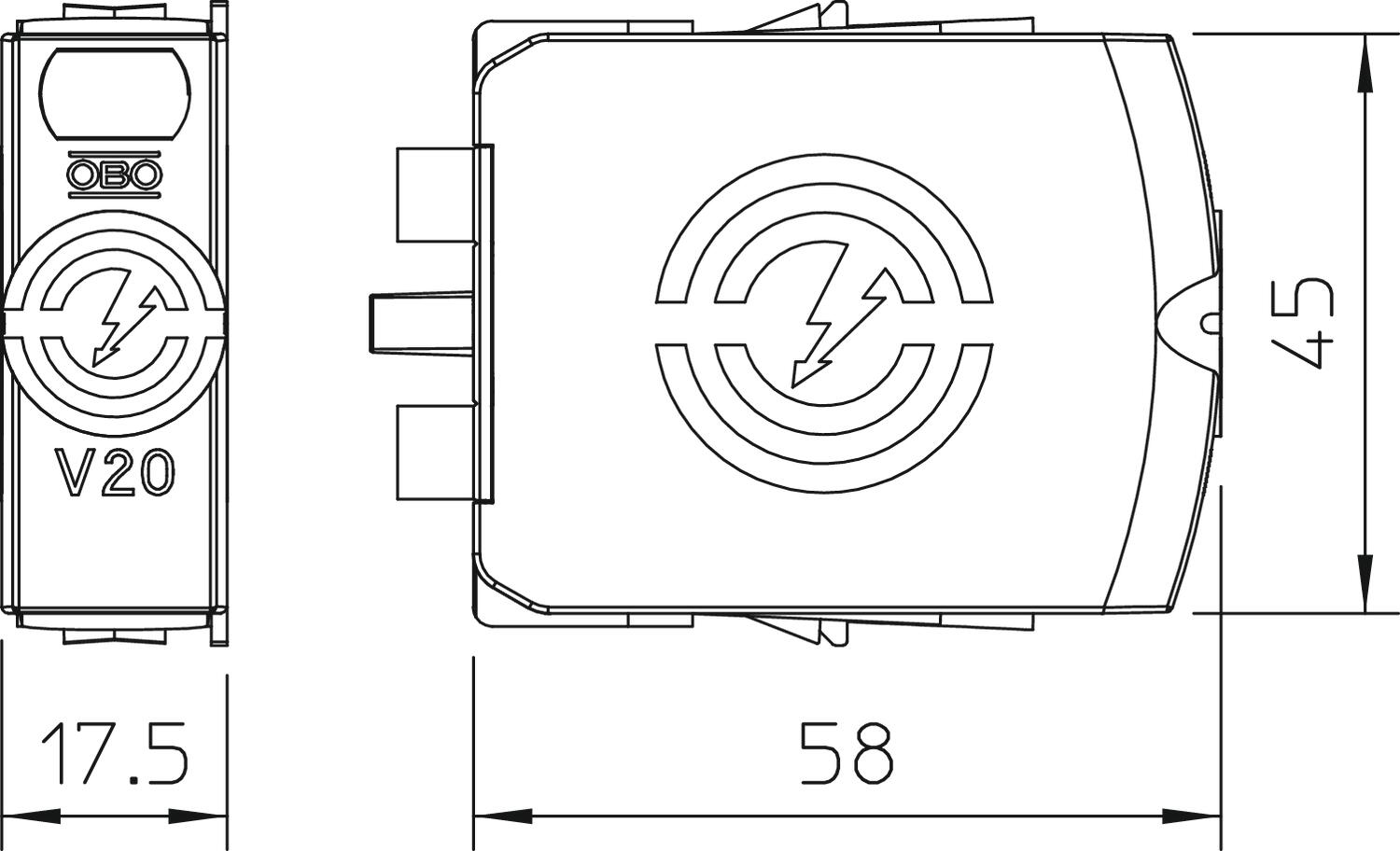

Plug-in arrester V20 550 V

Item no. 5095372 | EAN 4012196163625

1
IP20
Product description
Product description
Surge arrester, type 2


• For surge protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)

• Discharge capacity to 40 kA (8/20) per pole through high-performance varistors

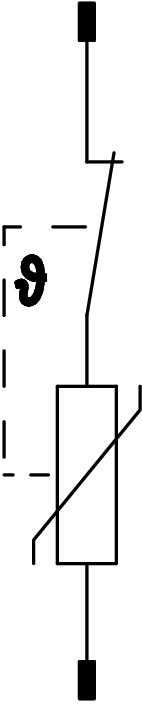

• Modular, plug-in arrester with dynamic cut-off unit and visual status display

• Locking mechanism with vibration protection and voltage keying

• Plastic (UL 94 V-0)
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • Protection device to DIN EN 61643-11 or IEC 61643-11
  • Transition from LPZ 1 to LPZ 2
  • Installation electrotechnical expertise
Technical data

Technical data

Approvals UL
Blow-out no
Dimension 550V
Housing material surge protection components PA UL 94 V-0
Installation type On basic element
Integrated back-up fuse no
Maximum continuous voltage (L-N) 550 V
Maximum continuous voltage AC 550 V
Maximum discharge current (8/20 μs) 40 kA
Maximum discharge current (8/20 μs) [L-N] 40 kA
Minimum distance 1,5 mm
Network form Other
Nominal discharge current (8/20 µs) 20 kA
Nominal discharge current (8/20 µs) [L-N] 20 kA
Nominal voltage AC (50/60 Hz) 400 V
Operating temperature, max. 80 °C
Operating temperature, min. -40 °C
Pole number 1
Pole version 1
Protection level [L-N] ≤2,4
Protection rating IP20
Remote signalling no
Short-circuit resistance for max. mains-side overcurrent protection 50 kA eff
Short-circuit resistant yes
Signalling on device Visual
SPD to EN 61643-11 Type 2
SPD to IEC 61643-1 Class II
SPD to UL 1449 Type 4
Test class, type 2 yes
All types

All types

Types Pole version Maximum continuous voltage AC Protection rating Item no. Quantity SSU
V20-0-75 1 75 V IP20 5095360
1 piece
V20-0-150 1 150 V IP20 5095362
1 piece
V20-0-280 1 280 V IP20 5095364
1 piece
V20-0-320 1 320 V IP20 5095366
1 piece
V20-0-440 1 440 V IP20 5095370
1 piece
V20-0-550 1 550 V IP20 5095372
1 piece
