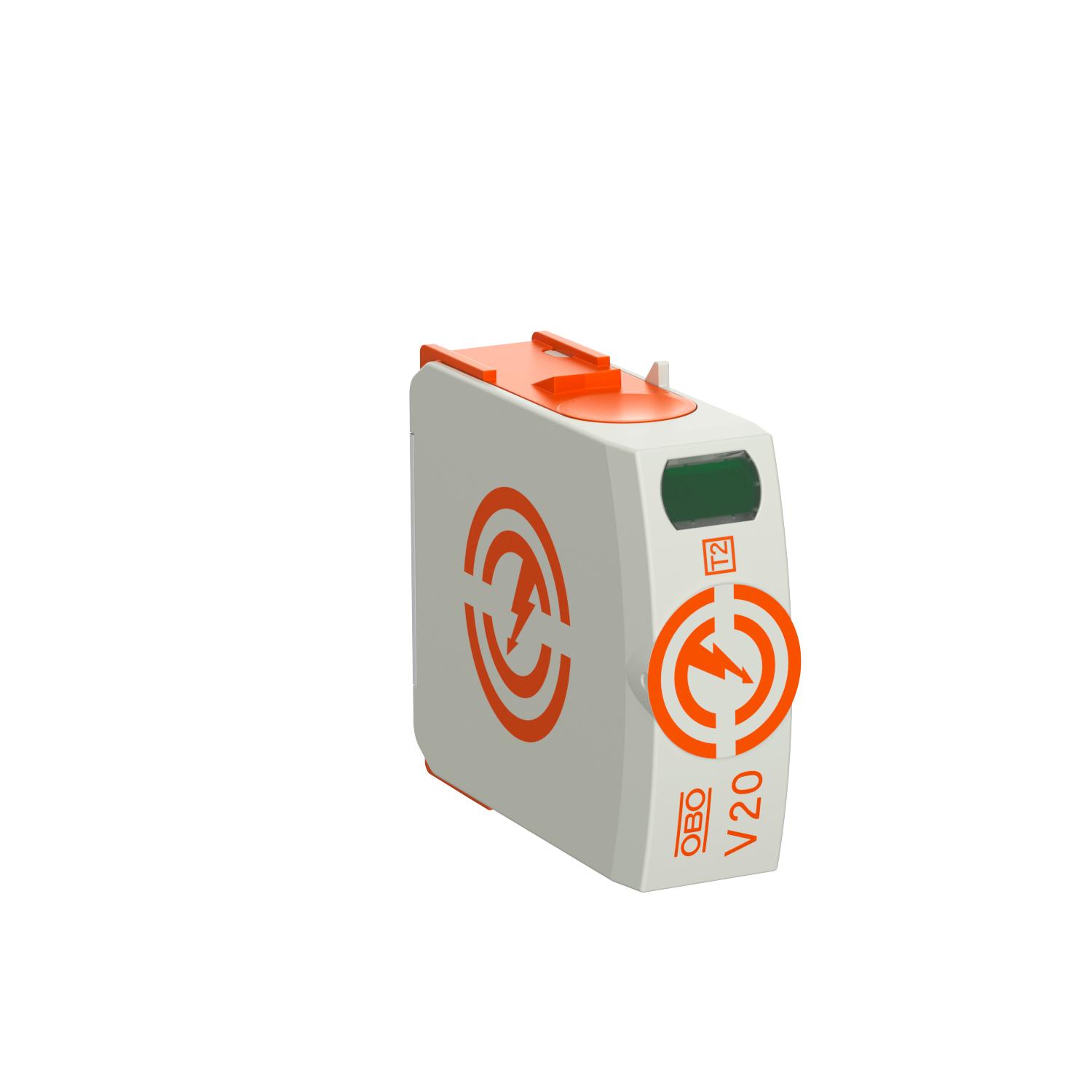

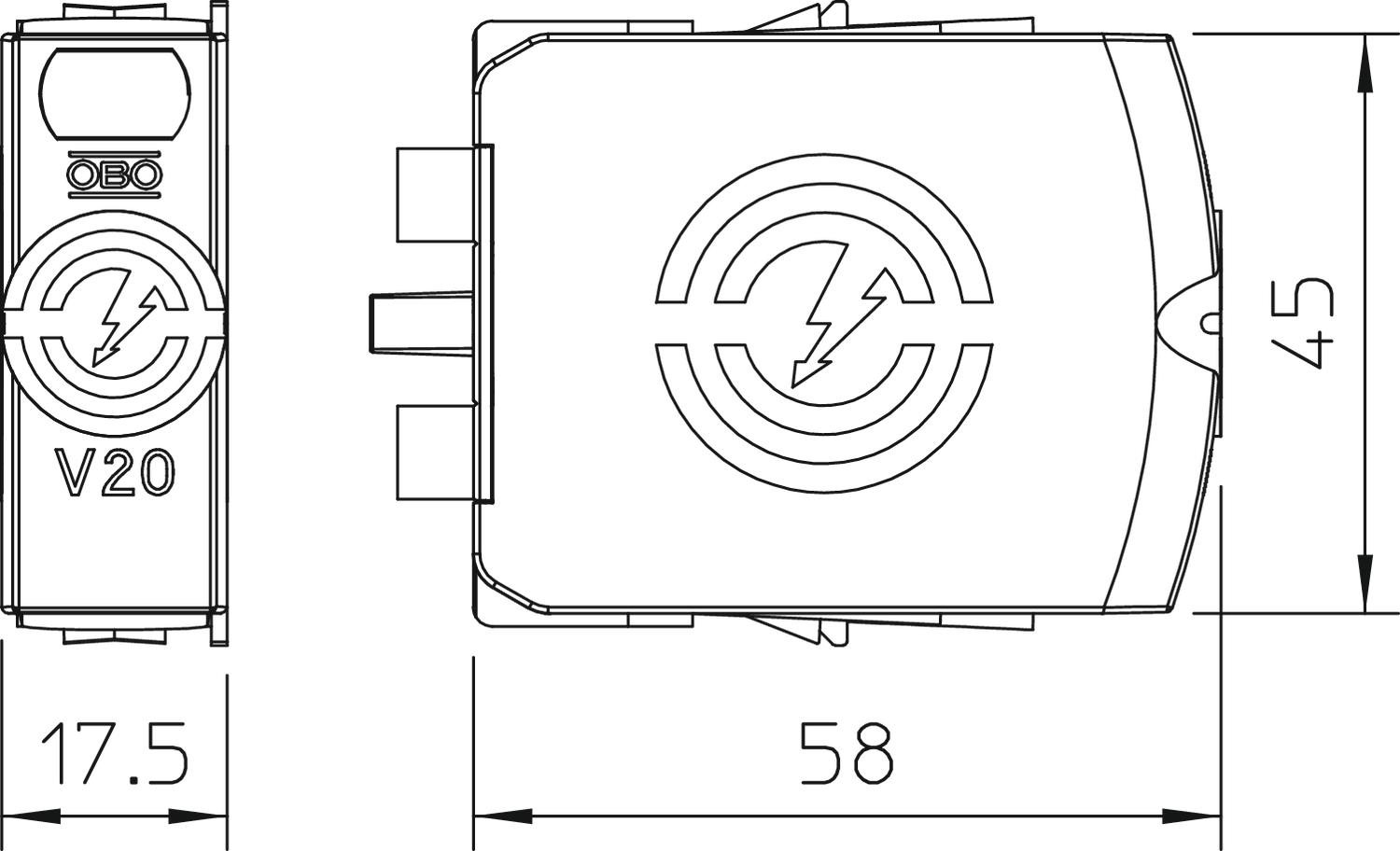

Plug-in arrester V20 75 V

Item no. 5095360 | EAN 4012196163533

Item no. / Types

Pole version	1

Maximum continuous voltage AC

Protection rating	IP20

Product description

Product description

Surge arrester, type 2

• For surge protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)

• Discharge capacity to 40 kA (8/20) per pole through high-performance varistors

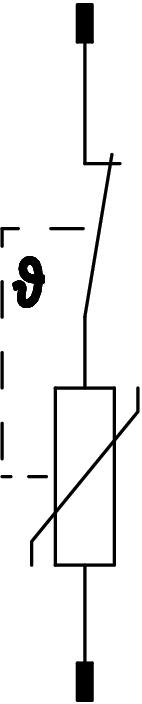

• Modular, plug-in arrester with dynamic cut-off unit and visual status display

• Locking mechanism with vibration protection and voltage keying

• Plastic (UL 94 V-0)

Technical data

Technical data

Approvals	VDE
Blow-out	no
Dimension	75V
Housing material surge protection components	PA UL 94 V-0
Installation type	On basic element
Integrated back-up fuse	no
Maximum continuous voltage (L-N)	75 V
Maximum continuous voltage AC	75 V
Maximum discharge current (8/20 μs)	40 kA
Maximum discharge current (8/20 μs) [L-N]	40 kA
Minimum distance	1,5 mm
Network form	Other
Nominal discharge current (8/20 µs)	20 kA
Nominal discharge current (8/20 µs) [L-N]	20 kA
Nominal voltage AC (50/60 Hz)	60 V
Operating temperature, max.	80 °C

Operating temperature, min.	-40 °C
Pole number	1
Pole version	1
Protection level [L-N]	≤0,5
Protection rating	IP20
Remote signalling	no
Residual voltage [L-N] @ 1 kA	0,3 kV
Residual voltage [L-N] @ 5 kA	0,4 kV
Short-circuit resistance for max. mains-side overcurrent protection	50 kA eff
Short-circuit resistant	yes
Signalling on device	Visual
SPD to EN 61643-11	Type 2
SPD to IEC 61643-1	Class II
SPD to UL 1449	Type 4
Test class, type 2	yes

All types

All types

Types	Pole version	Maximum continuous voltage AC	Protection rating	Item no.	Quantity	SSU
V20-0-75	1	75 V	IP20	5095360	piece	1 piece
V20-0-150	1	150 V	IP20	5095362	piece	1 piece
V20-0-280	1	280 V	IP20	5095364	piece	1 piece
V20-0-320	1	320 V	IP20	5095366	piece	1 piece
V20-0-440	1	440 V	IP20	5095370	piece	1 piece
V20-0-550	1	550 V	IP20	5095372	piece	1 piece
