Plug-in arrester V50 320 V 1 | 320 | IP20

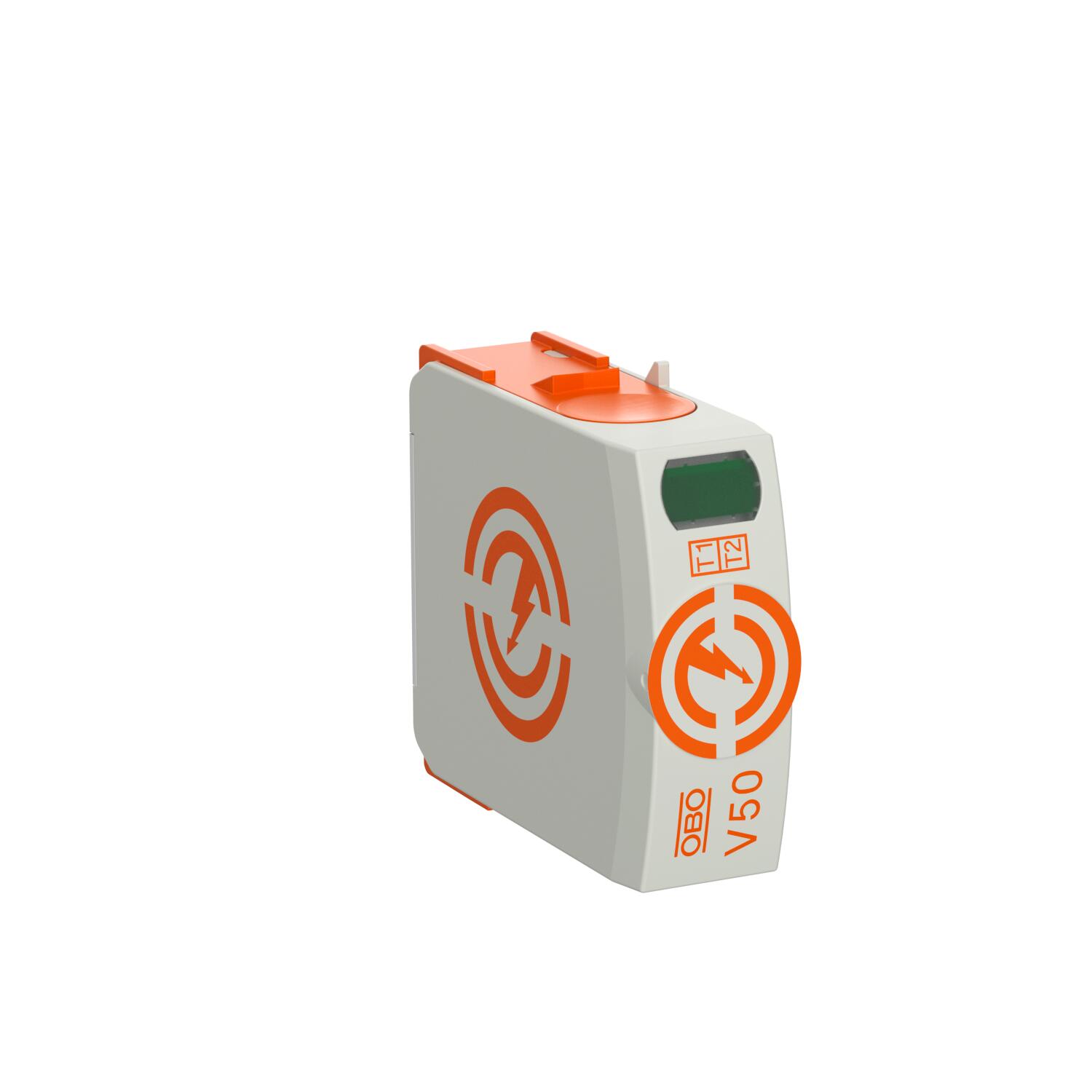

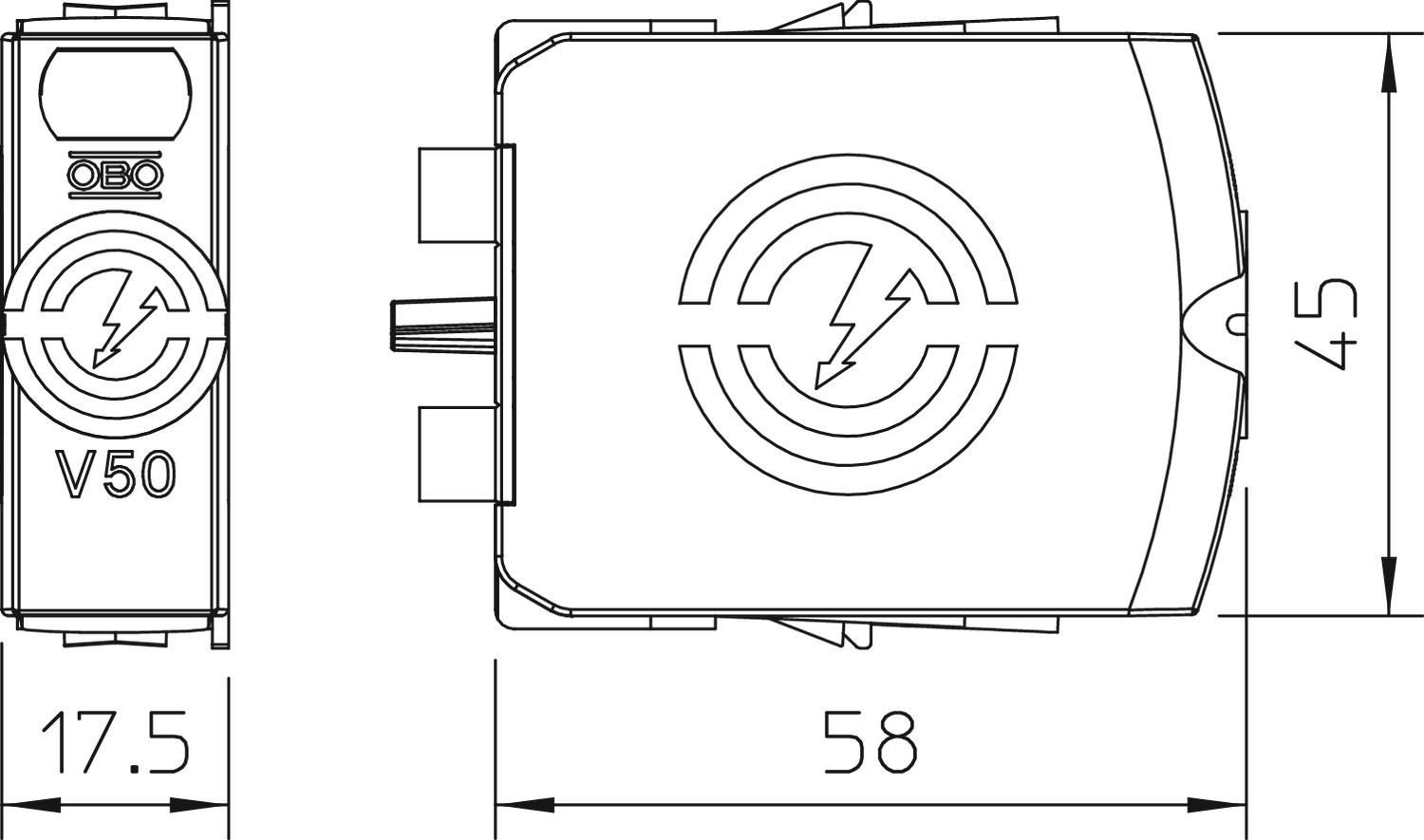

Plug-in arrester V50 320 V

Item no. 5093509 | EAN 4012196334674

Item no. / Types

Pole version	1

Maximum continuous voltage AC

Protection rating	IP20

Product description

Product description

Combination arrester, type 1+2

• For lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)

• Lightning current discharge capacity of 12.5 kA (10/350) per pole

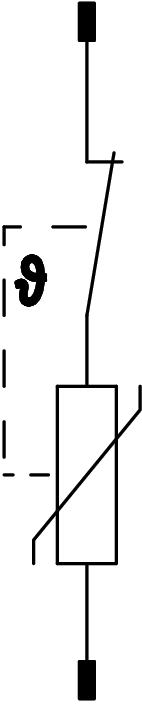

• Modular, plug-in arrester with dynamic cut-off unit and visual status display

• Locking mechanism with vibration protection and voltage keying

• Plastic (UL 94 V-0)

Technical data

Technical data

Approvals	VDE
Blow-out	no
Conductor cross-section, flexible (fine-wire), max.	35 mm²
Conductor cross-section, flexible (fine-wire), max.	2 AWG
Conductor cross-section, flexible (fine-wire), min.	16 AWG
Conductor cross-section, flexible (fine-wire), min.	1,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	35 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	2 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.	16 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.	1,5 mm²
Connection cross-section, FM terminals, max.	16 AWG
Connection cross-section, FM terminals, max.	1,5 mm²
Connection cross-section, FM terminals, min.	21 AWG
Connection cross-section, FM terminals, min.	0,5 mm²
Dimension	320V
Housing material surge protection components	PA UL 94 V-0
Installation type	DIN rail 35 mm
Integrated back-up fuse	no
Lightning surge current (10/350 μs)	12,5 kA
Max. mains-side overcurrent protection	160 A gL/gG
Maximum back-up fuse	160 A
Maximum continuous voltage (L-N)	320 V
Maximum continuous voltage AC	320 V
Maximum discharge current (8/20 μs)	50 kA
Maximum discharge current (8/20 μs) [L-N]	50 kA

Minimum distance	1,5 mm
Network form	All
Nominal discharge current (8/20 µs)	30 kA
Nominal discharge current (8/20 µs) [L-N]	30 kA
Nominal voltage AC (50/60 Hz)	230 V
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Pole number	1
Pole version	1
Protection level [L-N]	≤1,4
Protection rating	IP20
Remote signalling	no
Residual voltage [L-N] @ 1 kA	0,9 kV
Residual voltage [L-N] @ 12.5 kA	1,1 kV
Residual voltage [L-N] @ 5 kA	1 kV
Response time	<25 ns
Short-circuit resistance for max. mains-side overcurrent protection	50 kA eff
Signalling on device	Visual
SPD to EN 61643-11	Type 1+2
SPD to IEC 61643-1	Class I+II
SPD to UL 1449	Type 4
Torque	4 Nm
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min.	440 V
TOV voltage [L-N] ‒ withstand mode ‒ 5 s	335 V

All types

All types

Types	Pole version	Maximum continuous voltage AC	Protection rating	Item no.	Quantity	SSU
V50-0-150	1	150 V	IP20	5093505	piece	1 piece
V50-0-280	1	280 V	IP20	5093508	piece	1 piece
V50-0-320	1	320 V	IP20	5093509	piece	1 piece
V50-0-385	1	385 V	IP20	5093510	piece	1 piece
