Plug-in seal EDK pure white 5 | 32 | M40 | Pure white; RAL 9010
morepic-1 morepic-2

Plug-in seal EDK pure white

Item no. 2011700 | EAN 4012195303220

5 mm
Product description
Product description
The plug-in seal can be cut back to suit the relevant cable diameter.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 55
  • M40 entry
Technical data

Technical data

Colour Pure white; RAL 9010

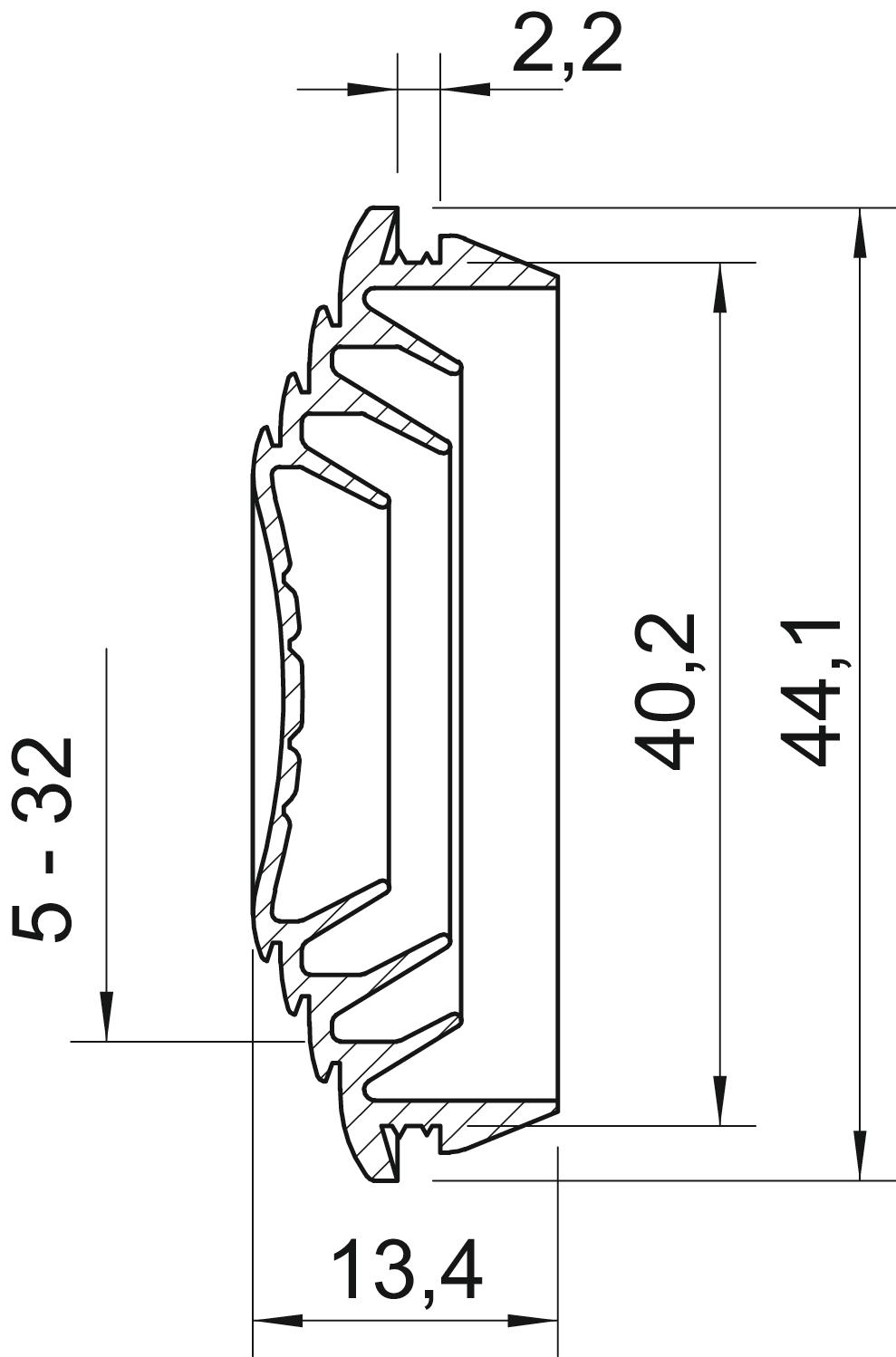

Dimension Ø40/5-32
Dimension A 2,2 mm
Dimension D1 44,1 mm
Dimension D2 40,2 mm
Dimension D3 5 mm
Dimension D4 14 mm
Dimension D5 15 mm
Dimension L 13,4 mm
for diameter, max. 32 mm
for diameter, min. 5 mm
for wall thickness, max. 2,2
for wall thickness, min. 2,2
Halogen-free yes
Material Thermoplastic elastomer
Nominal diameter 40 mm
Protection rating IP55
Size M40
Version for Cuttable
All types

All types

Types for diameter, min. for diameter, max. Size Colour Item no. Quantity SSU
EDK 25 LGR 5 mm 20 mm M25 Light grey; RAL 7035 2011638
100 piece
EDK 32 LGR 5 mm 25 mm M32 Light grey; RAL 7035 2011646
50 piece
EDK 40 LGR 5 mm 32 mm M40 Light grey; RAL 7035 2011654
25 piece
EDK 25 RW 5 mm 20 mm M25 Pure white; RAL 9010 2011689
100 piece
EDK 32 RW 5 mm 25 mm M32 Pure white; RAL 9010 2011697
50 piece
EDK 40 RW 5 mm 32 mm M40 Pure white; RAL 9010 2011700
25 piece
