Plug-in seal EDVS, light grey | 22 | M25 | Light grey; RAL 7035
morepic-1 morepic-2

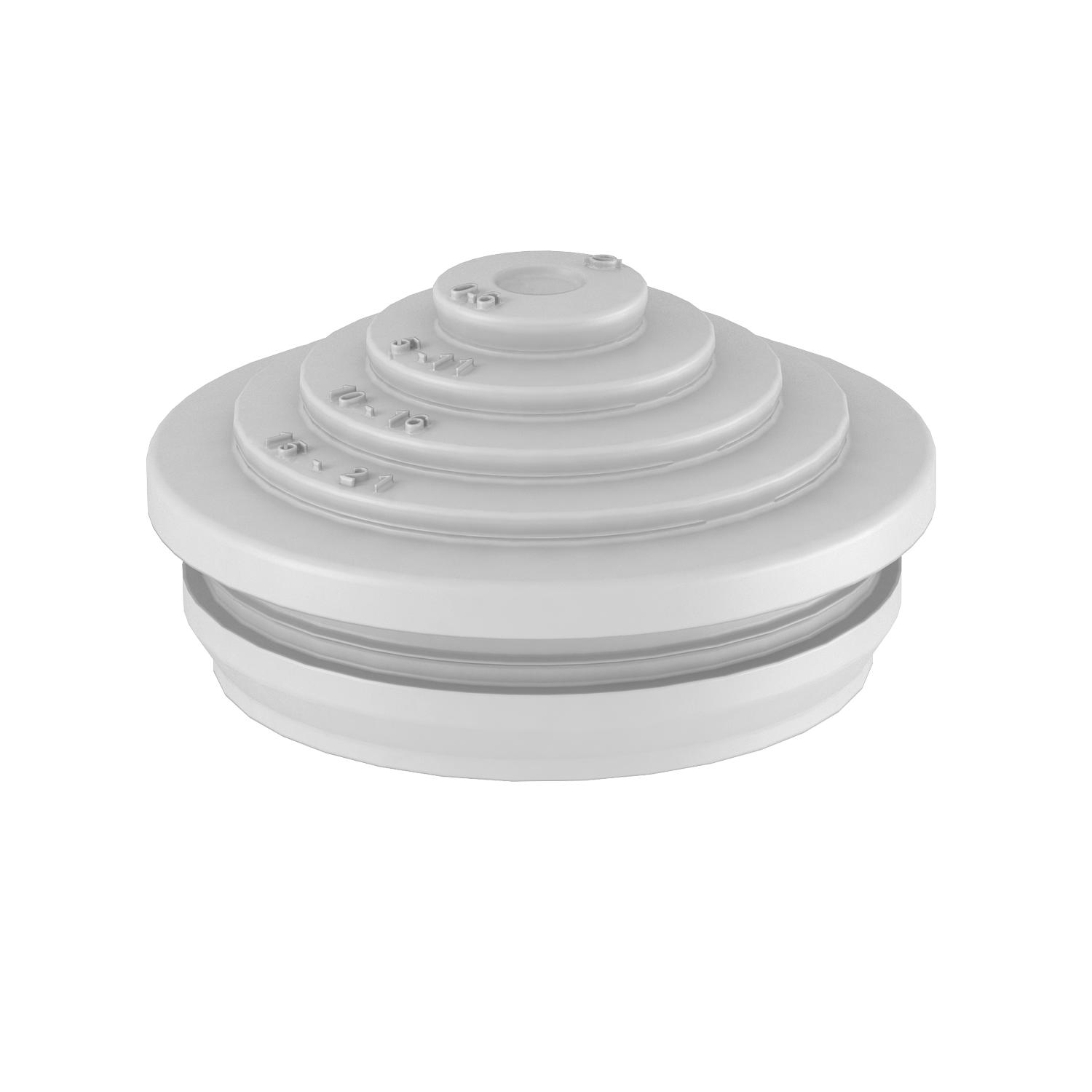

Plug-in seal EDVS, light grey

Item no. 2012383 | EAN 4012195105190

Light grey; RAL 7035
Product description
Product description
The push-in nipple can be cut back to suit the relevant cable diameter.
  • Indication of metric products
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Thread metric
Technical data

Technical data

Colour Light grey; RAL 7035

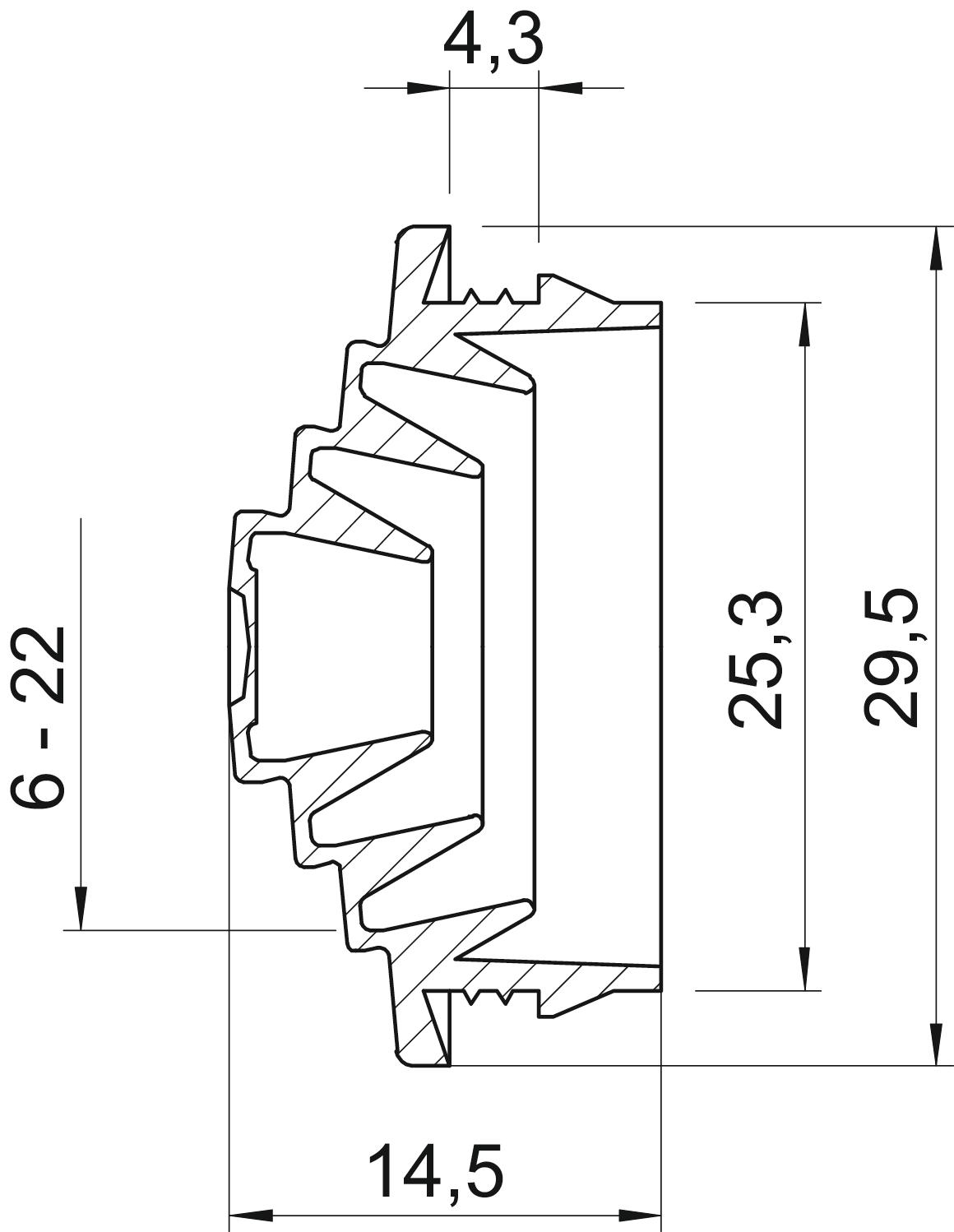

Dimension M25
Dimension A 4,3 mm
Dimension D1 29,5 mm
Dimension D2 25,3 mm
Dimension D3 6 mm
Dimension D4 10 mm
Dimension D5 15 mm
Dimension L 14,5 mm
Dimension t 4,3 mm
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
for diameter, max. 22 mm
for wall thickness, max. 4,3
for wall thickness, min. 3,9
Halogen-free yes
Material Ethylene vinyl acetate
Nominal diameter 25 mm
Protection rating IP54
Size M25
Version for Cuttable
All types

All types

Types for diameter, max. Size Colour Item no. Quantity SSU
EDVS M20 LGR 17 mm M20 Light grey; RAL 7035 2012375
100 piece
EDVS M25 LGR 22 mm M25 Light grey; RAL 7035 2012383
100 piece
EDVS M32 LGR 28 mm M32 Light grey; RAL 7035 2012391
50 piece
