- Product description
-
Product descriptionThe soft plug-in seal can be cut back step by step to suit the relevant cable diameter.
Colour: Pastel orange.
- Technical data
-
Technical data

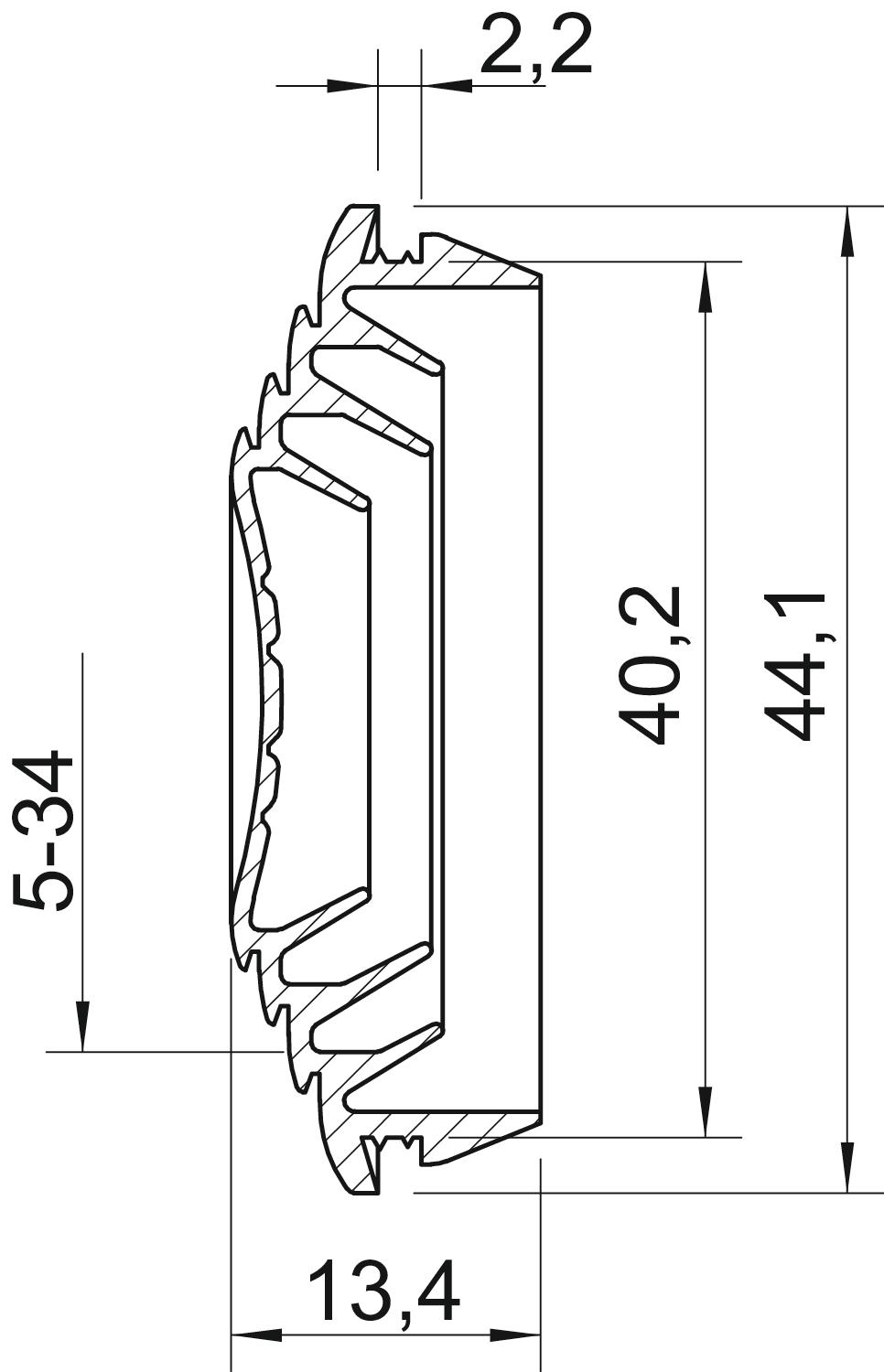

Colour Pastel orange; RAL 2003 Dimension M40 Dimension A 2,2 mm Dimension D1 44,1 mm Dimension D2 40,2 mm Dimension D3 5 mm Dimension D4 10 mm Dimension D5 15 mm Dimension L 13,4 mm for diameter, max. 34 mm for wall thickness, min. 2,2 Halogen-free no Material Thermoplastic elastomer Nominal diameter 40 mm Size M40 Version for Cuttable - All types
- Downloads
-
Data sheet EDK 40 OR / 7205679 , 0.17MB , pdfBrochure Brochure The Experts , 2.10MB , pdfREACH Declaration of conformity EDK 40 OR / 7205679 , 0.12MB , pdfRoHS Declaration of conformity EDK 40 OR / 7205679 , 0.12MB , pdf
