Plug-in seal for pipes, light grey 16 | 20 | M25 | Light grey; RAL 7035
morepic-1 morepic-2

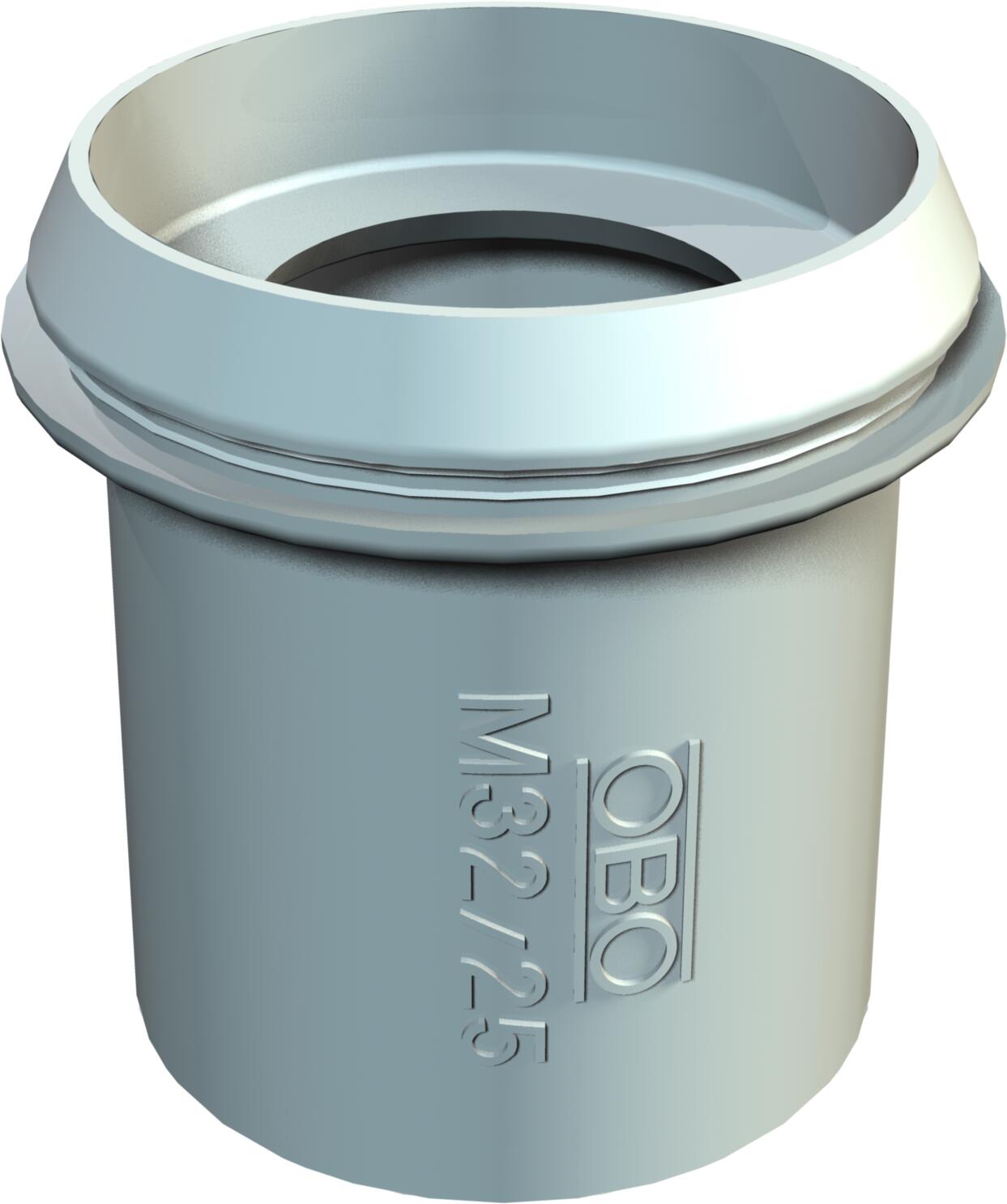

Plug-in seal for pipes, light grey

Item no. 2011506 | EAN 4012195246909

Light grey; RAL 7035
Product description
Product description
Plug-in seal for junction boxes for direct insertion of metric pipes
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 55
  • M25 entry
  • M32 entry
  • M40 entry
Technical data

Technical data

Colour Light grey; RAL 7035

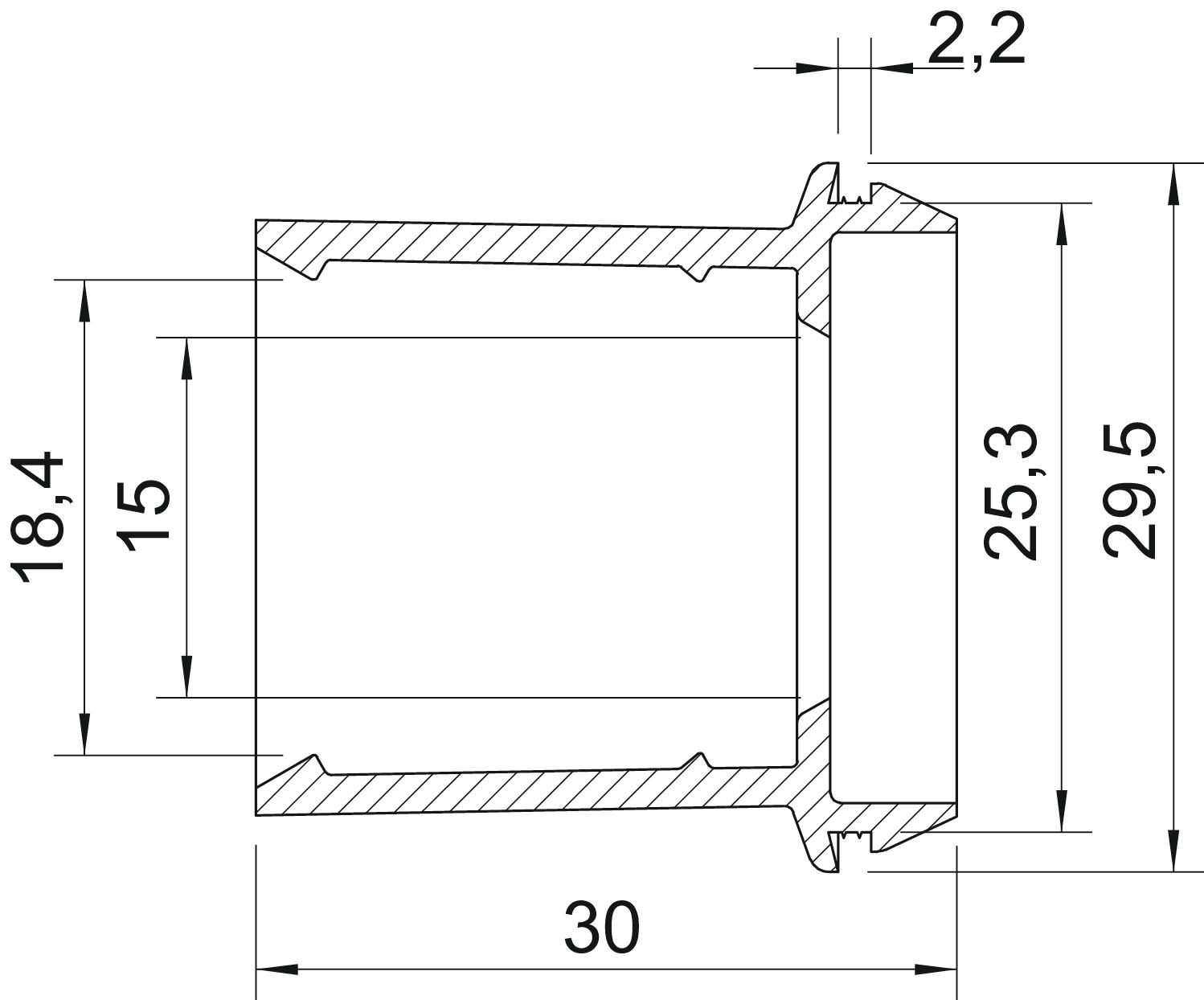

Dimension Ø25/16-20
Dimension A 2,2 mm
Dimension D1 29,5 mm
Dimension D2 25,3 mm
Dimension D3 15 mm
Dimension D4 18,4 mm
Dimension L 30 mm
for diameter, max. 20 mm
for diameter, min. 16 mm
for wall thickness, max. 2,2
for wall thickness, min. 2,2
Halogen-free yes
Material Thermoplastic elastomer
Nominal diameter 25 mm
Protection rating IP55
Size M25
Version for Open
All types

All types

Types for diameter, min. for diameter, max. Size Colour Item no. Quantity SSU
EDR 25 16-20 LGR 16 mm 20 mm M25 Light grey; RAL 7035 2011506
50 piece
EDR 25 20-25 LGR 20 mm 25 mm M25 Light grey; RAL 7035 2011514
50 piece
EDR 32 25-32 LGR 25 mm 32 mm M32 Light grey; RAL 7035 2011530
50 piece
EDR 40 32-40 LGR 32 mm 40 mm M40 Light grey; RAL 7035 2011546
25 piece
