Pluggable cover, equipped, Modul 45

Name: Pluggable cover, equipped, Modul 45
Brand: OBO Bettermann
SKU: 2006116

Item no. 2006116 | EAN 4012197419837

Back to overview

Product description

Product description

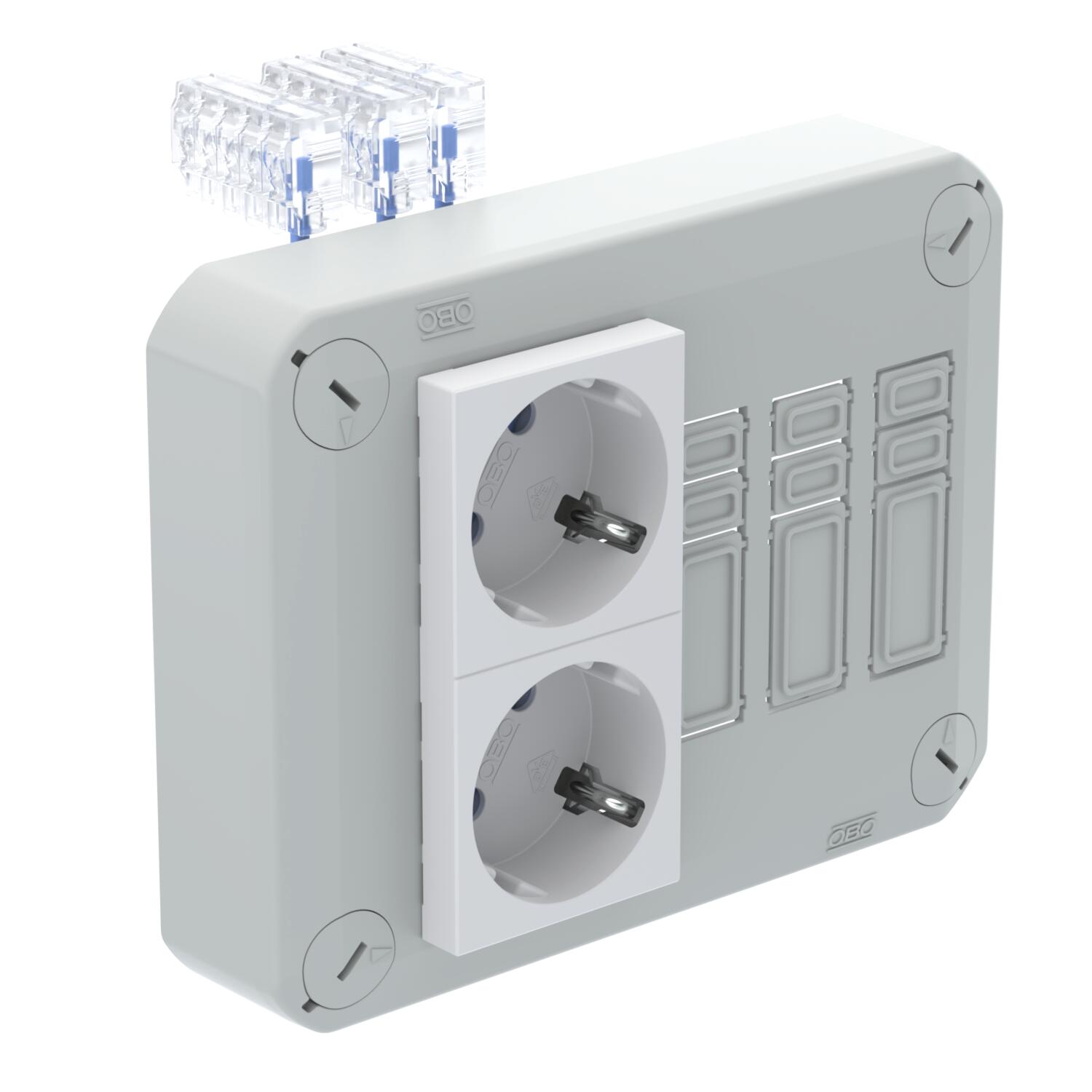

Pluggable cover for the closing of junction boxes, equipped with 2 Module 45 sockets, prewired with lever plug-in connector With quick lock in cover, sealable. Halogen-free material, UV-resistant Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection class IP30.

Technical data

Technical data

Colour	Light grey; RAL 7035

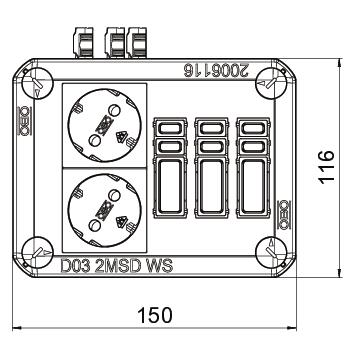

Dimension	150x116x60
Fastening type	Screw fastening
Halogen-free	yes
Height	60 mm
Length	150 mm

Material	Polypropylene
Protection rating	IP30
Shape	Rectangular
Version, concealed and cavity wall cover	Lid with sockets
Width	116 mm

All types

All types

Types	Number of sockets	Number of 3-pole sockets	Number of 4-pole sockets	Number of 5-pole sockets	Item no.	Quantity	SSU
D03 2MSD WS					2006116	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Lower part junction box, with fastening element	UT01+SB BE	2006010	piece	1 piece
T 100 junction box, with strain relief entries IP 31	T 100 ZE IP30	2007805	piece	1 piece
Fastening element for junction boxes	SB BE	2006150	piece	10 piece
Separating element juncion box	SB TR	2006156	piece	5 piece
Pluggable cover, unequipped	D01 L	2006040	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 2x3p WD	2006042	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 2x3p WD(1+1)	2006044	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 3x3p WD	2006046	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 4x3p WD	2006048	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 4x3p WD(2+2)	2006050	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 6x3p WD	2006058	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 6x3p WD(4+2)	2006060	piece	1 piece
Pluggable cover, unequipped	D02 L	2006080	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 3x3p+1x4p WD	2006082	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 2x4p WD	2006084	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 2x5p WD	2006086	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 4x5p WD	2006088	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 4x5p DALI WD	2006094	piece	1 piece
Pluggable cover, equipped, OBO WINSTA MIDI	D02 2x5p DALI WG	2006096	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 3x5p DALI WD	2006098	piece	1 piece
Junction box T100, 2 Modul 45 sockets in cover, 1-pin	T 100 2MSD WS	2007821	piece	5 piece
Junction box T100, 4 Modul 45 sockets in cover, 2-pin	T 100 4MSD WS	2007825	piece	5 piece
Pluggable cover, unequipped	D04 L	2006130	piece	1 piece
DATA module, pluggable cover	SB DT1	2006180	piece	1 piece
DATA module, pluggable cover	SB DT2	2006182	piece	1 piece
DATA module, pluggable cover	SB DT3	2006184	piece	1 piece
DATA module, pluggable cover	SB DT4	2006186	piece	1 piece
DATA module, pluggable cover	SB DT5	2006188	piece	1 piece
