Pluggable cover, equipped, OBO WINSTA MIDI | | | 2

Pluggable cover, equipped, OBO WINSTA MIDI

Item no. 2006096 | EAN 4012197448691

Item no. / Types

Number of 5-pole sockets

Back to overview

Product description

Product description

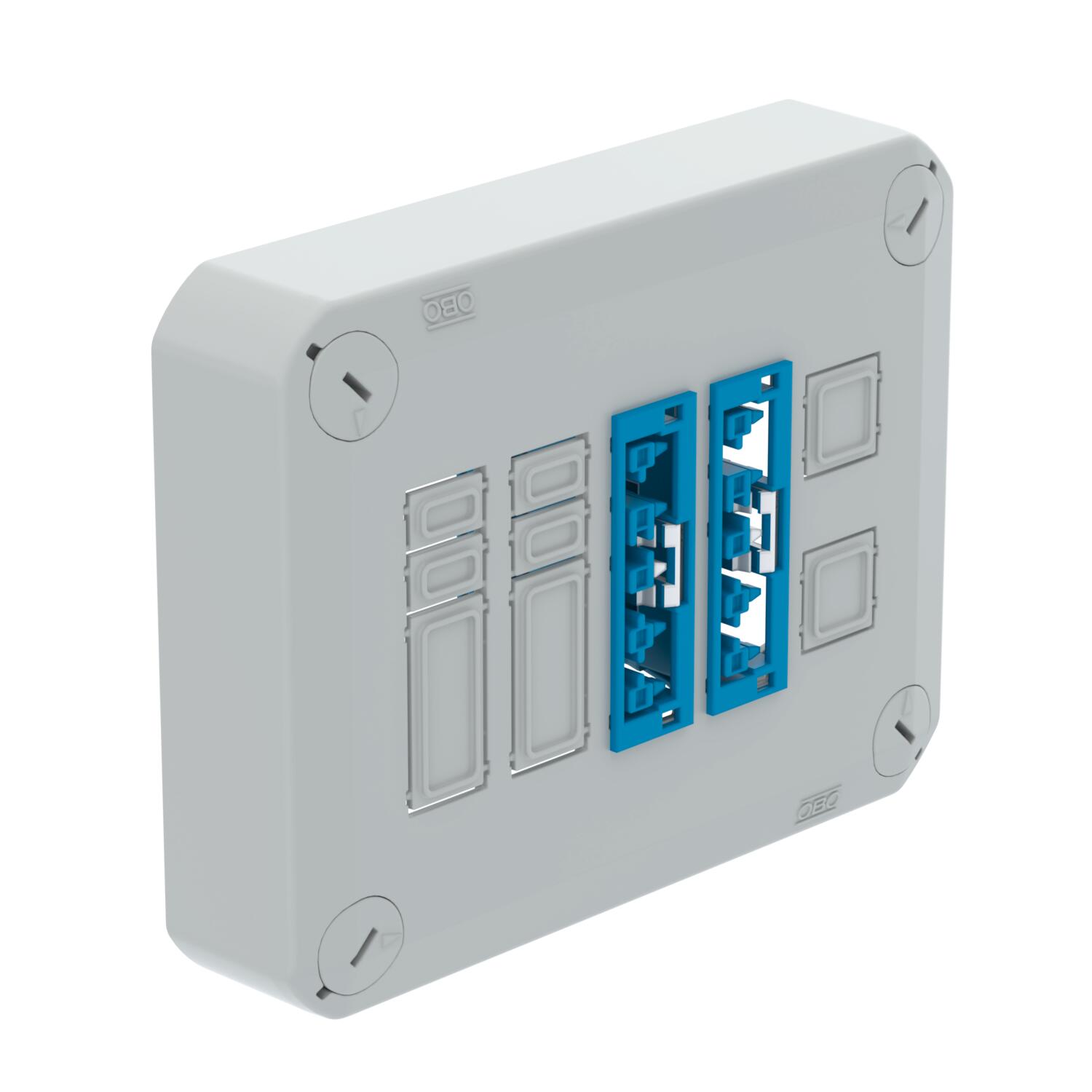

Pluggable cover for the closing of junction boxes, equipped with 2 Wago WINSTA MIDI plug systems, prewired with lever plug-in connector With quick lock in cover, sealable. Halogen-free material, UV-resistant Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 at room temperature. Protection class IP30.

Technical data

Technical data

Colour	Light grey; RAL 7035

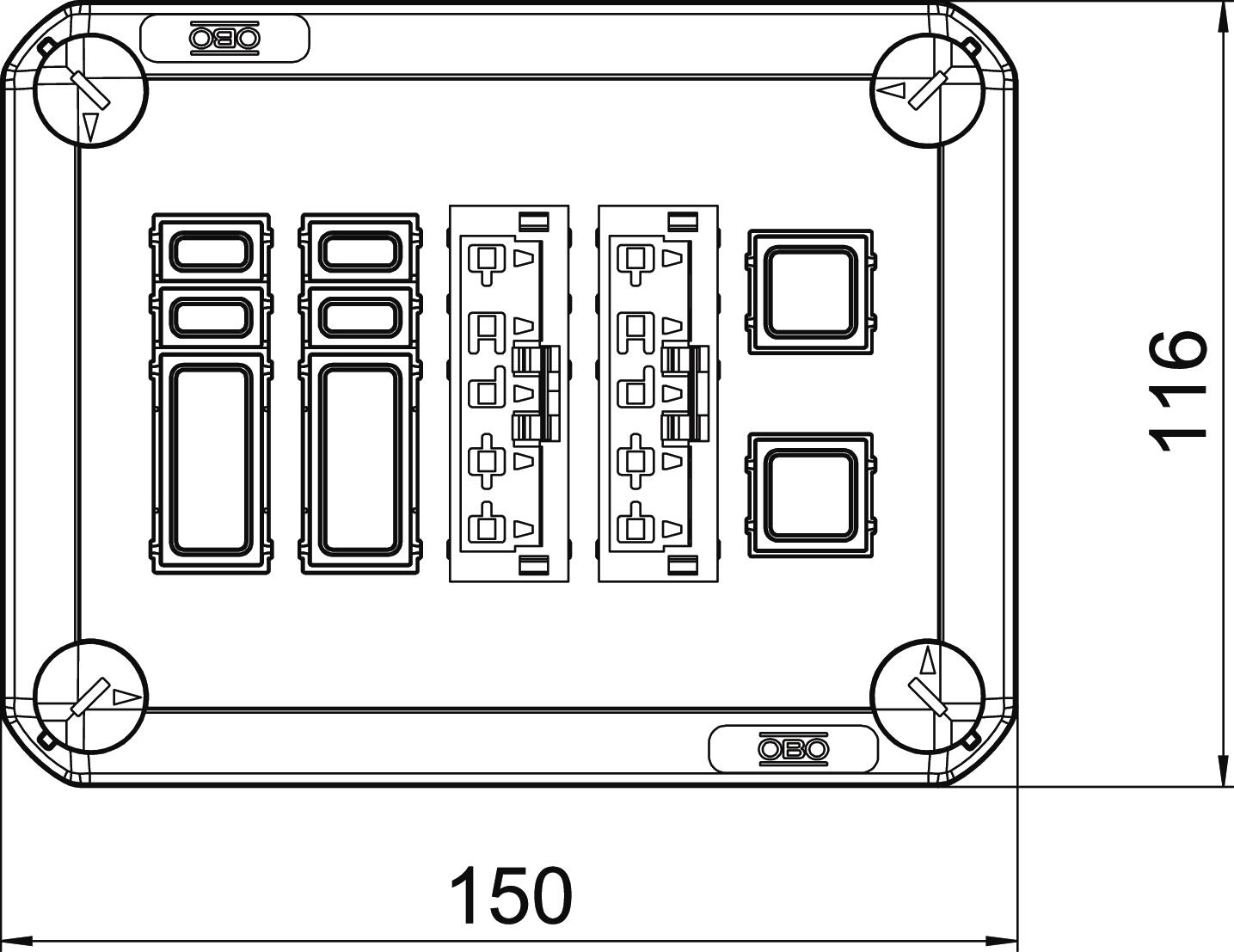

Dimension	150x116x60
Fastening type	Screw fastening
Halogen-free	yes
Height	60 mm
Length	150 mm

Material	Polypropylene
Number of 5-pole sockets	2
Protection rating	IP30
Shape	Rectangular
Version, concealed and cavity wall cover	Lid with sockets
Width	116 mm

All types

All types

Types	Number of 5-pole sockets	Item no.	Quantity	SSU
D02 2x5p DALI WG	2	2006096	piece	1 piece
D02 3x5p DALI WD	3	2006098	piece	1 piece
D02 4x5p DALI WD	4	2006094	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Lower part junction box, with fastening element	UT01+SB BE	2006010	piece	1 piece
T 100 junction box, with strain relief entries IP 31	T 100 ZE IP30	2007805	piece	1 piece
Fastening element for junction boxes	SB BE	2006150	piece	10 piece
Separating element juncion box	SB TR	2006156	piece	5 piece
Pluggable cover, unequipped	D01 L	2006040	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 2x3p WD	2006042	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 2x3p WD(1+1)	2006044	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 3x3p WD	2006046	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 4x3p WD	2006048	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 4x3p WD(2+2)	2006050	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 6x3p WD	2006058	piece	1 piece
Pluggable cover, equipped, OBO GST18	D01 6x3p WD(4+2)	2006060	piece	1 piece
Pluggable cover, unequipped	D02 L	2006080	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 3x3p+1x4p WD	2006082	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 2x4p WD	2006084	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 2x5p WD	2006086	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 4x5p WD	2006088	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 4x5p DALI WD	2006094	piece	1 piece
Pluggable cover, equipped, OBO GST18	D02 3x5p DALI WD	2006098	piece	1 piece
Pluggable cover, equipped, Modul 45	D03 2MSD WS	2006116	piece	1 piece
Junction box T100, 2 Modul 45 sockets in cover, 1-pin	T 100 2MSD WS	2007821	piece	5 piece
Junction box T100, 4 Modul 45 sockets in cover, 2-pin	T 100 4MSD WS	2007825	piece	5 piece
Pluggable cover, unequipped	D04 L	2006130	piece	1 piece
DATA module, pluggable cover	SB DT1	2006180	piece	1 piece
DATA module, pluggable cover	SB DT2	2006182	piece	1 piece
DATA module, pluggable cover	SB DT3	2006184	piece	1 piece
DATA module, pluggable cover	SB DT4	2006186	piece	1 piece
DATA module, pluggable cover	SB DT5	2006188	piece	1 piece
