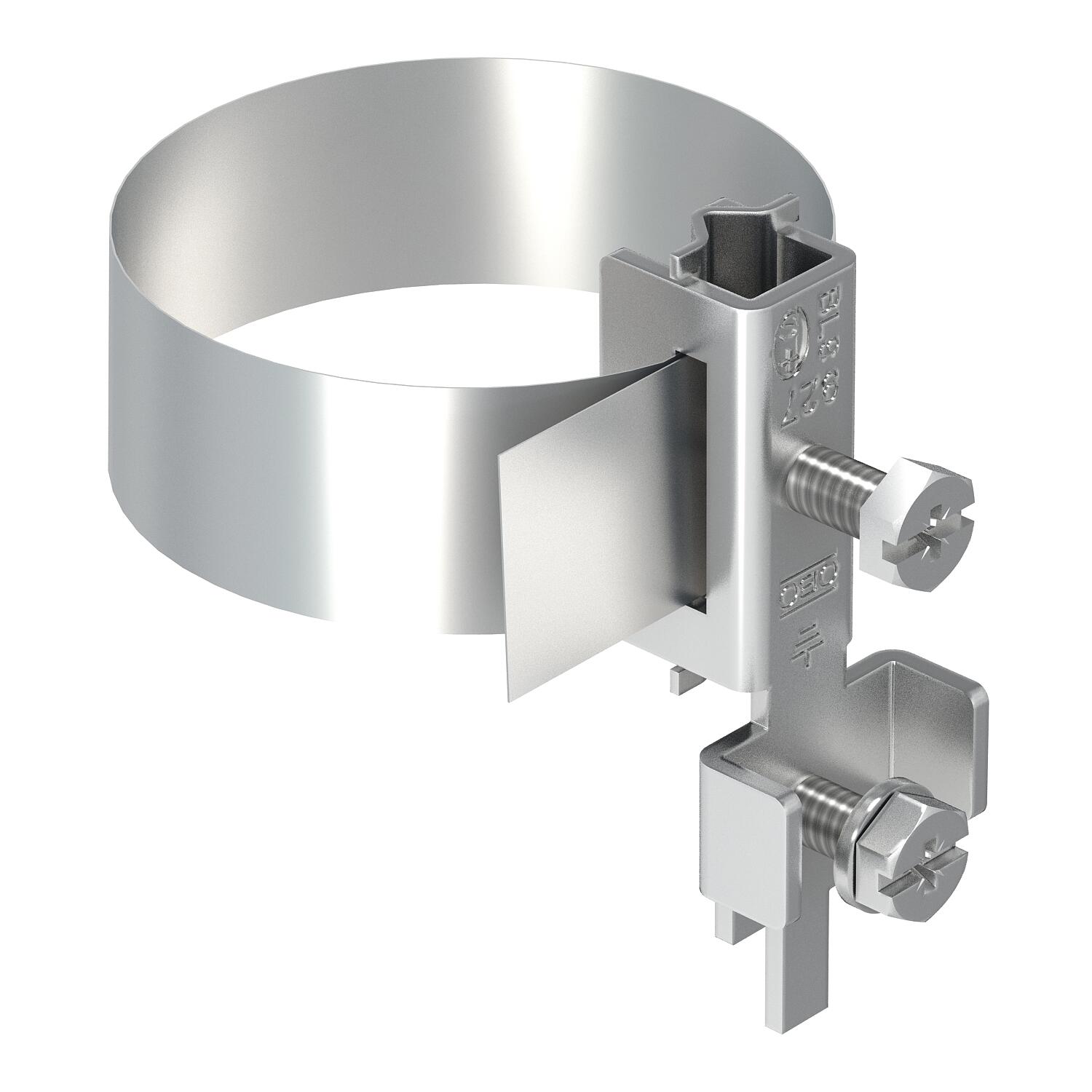

Potential connection clip for mounting on isFang
Item no. 5057599 | EAN 4012195699651
- Product description
-
Product description
Potential connection for isCon® conductor for mounting on insulated air-termination rods of type isFang.
- Technical data
-
Technical data
Cross-section of cable to be connected, max. 25 mm² Cross-section of cable to be connected, min. 2,5 mm² Dimension 3/8-4" Fit 3_8-4mm mm For pipe diameter, max. 114 mm For pipe diameter, min. 17,2 mm Material Stainless steel Dimensions

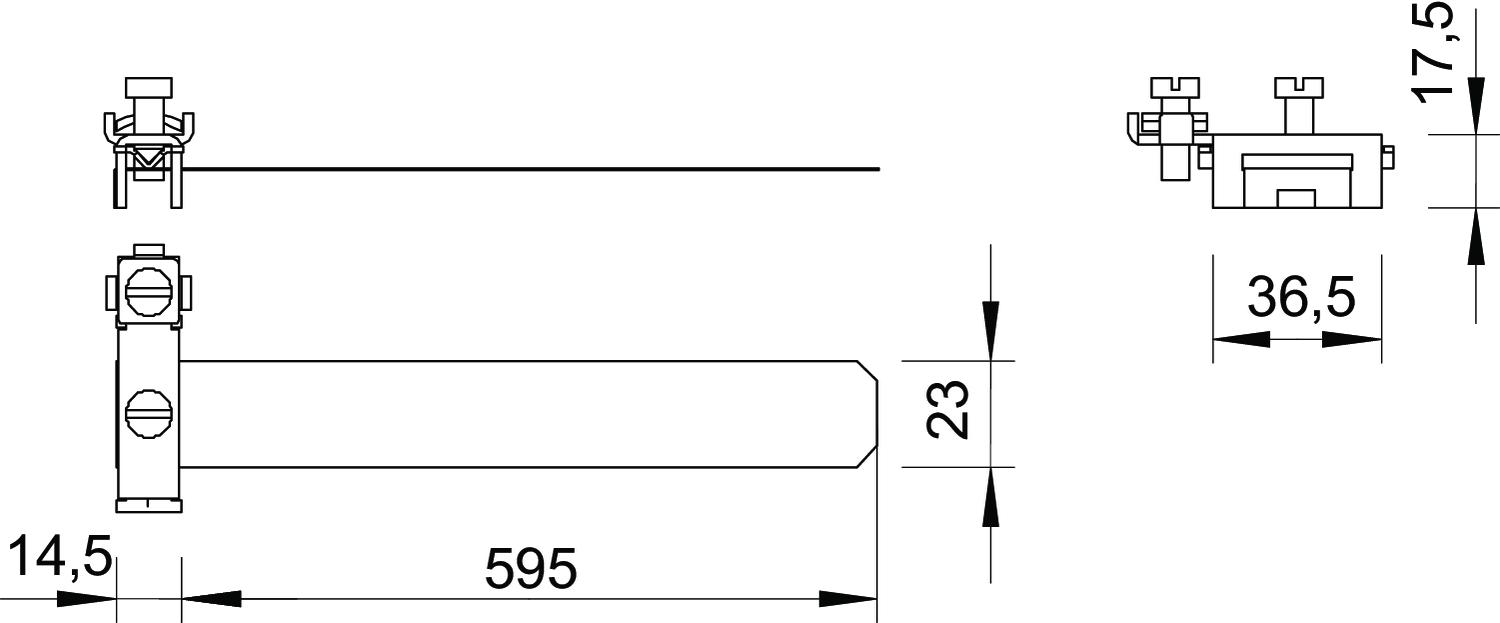

Dimension L 595 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Pre-tensioner bit for earthing pipe clamps
927 BES VSW 25 A 5057694 1 piece - Downloads
-
Data sheet 927 2 6-K / 5057599 , 0.19MB , pdfREACH Declaration of conformity 927 2 6-K / 5057599 , 0.12MB , pdfRoHS Declaration of conformity 927 2 6-K / 5057599 , 0.12MB , pdfMounting instructions Extended mounting instructions, long isCon® , 11.88MB , pdf
