Pre-tensioning tool 153 | 73

morepic-1

morepic-2

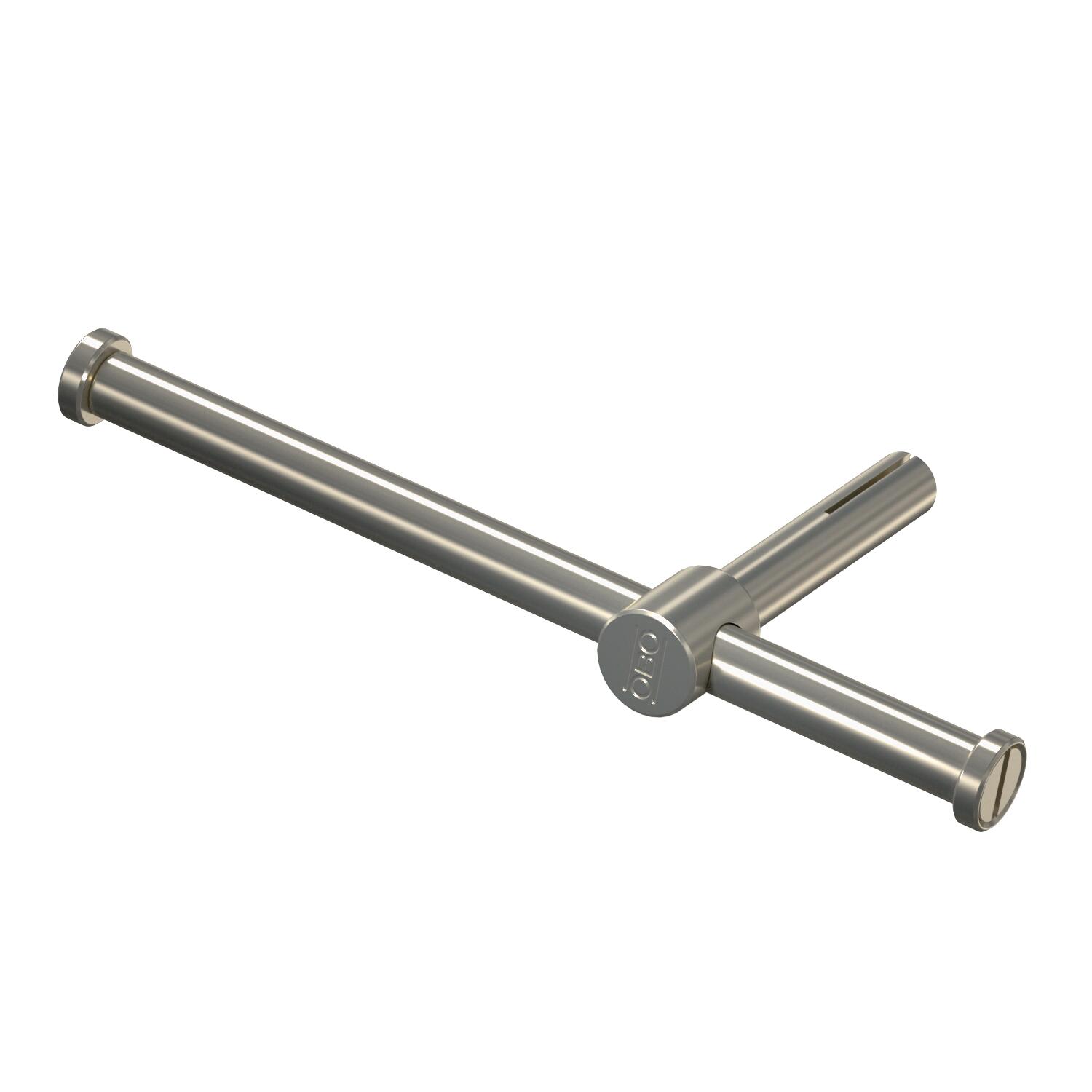

Pre-tensioning tool

Item no. 5057690 | EAN 4012196672844

Item no. / Types	5057690 / 927 BES VSW 25

Length	153 mm

Width	73 mm

Product description

Product description

To tension earthing pipes and earthing pipe clamps.

Technical data

Technical data

Material	Stainless steel

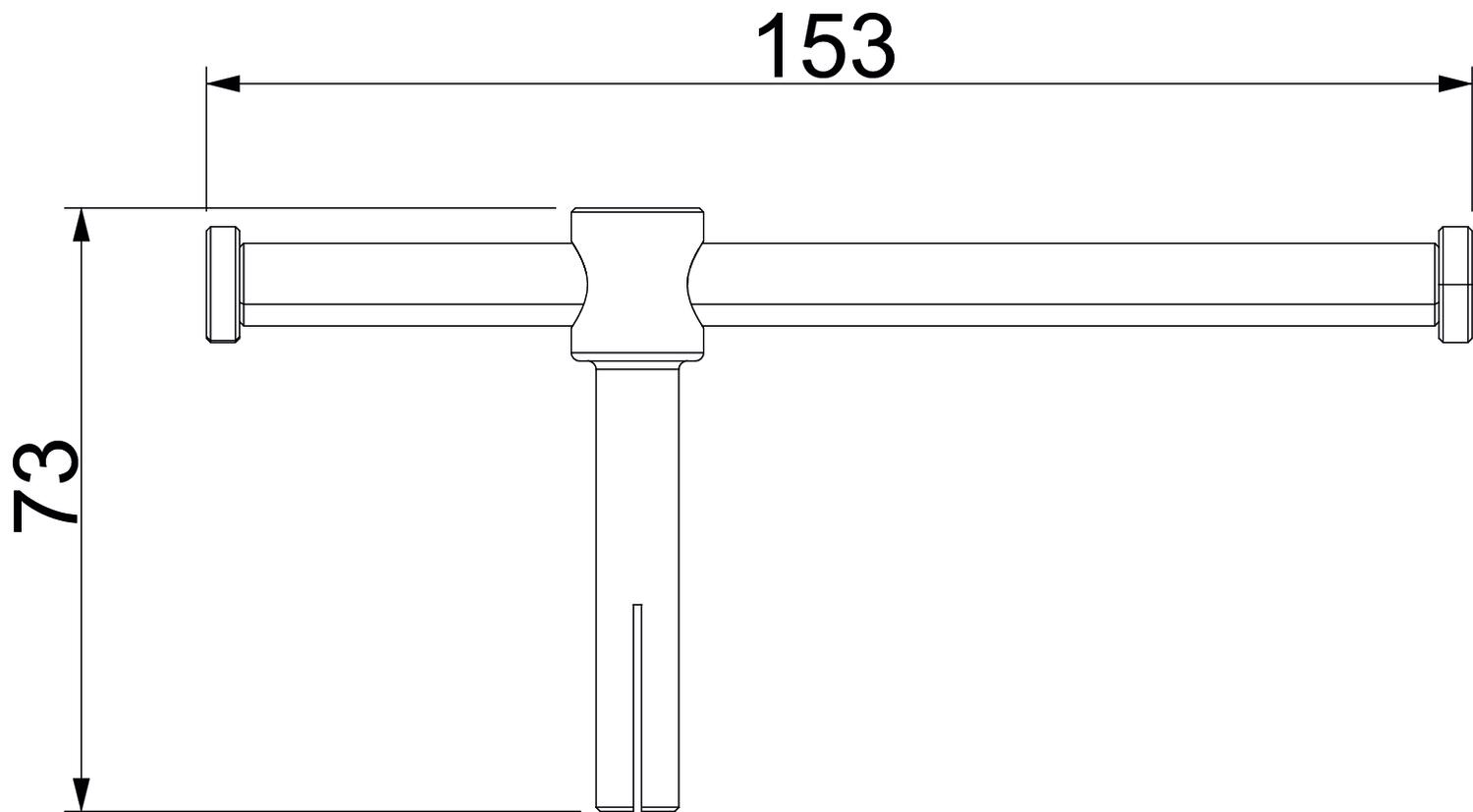

Dimensions

Dimension b	73 mm
Dimension L	153 mm

Length	153 mm
Width	73 mm

All types

All types

Types	Length	Width	Item no.	Quantity	SSU
927 BES VSW 25	153 mm	73 mm	5057690	piece	1 piece

Downloads

Data sheet 927 BES VSW 25 / 5057690 , 0.14MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Flyer Earthing pipe clamp for Ex areas , 2.00MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

Declaration of conformity 927 BES VSW 25 / 5057690 , 0.11MB , pdf

REACH Declaration of conformity 927 BES VSW 25 / 5057690 , 0.12MB , pdf

Download

RoHS Declaration of conformity 927 BES VSW 25 / 5057690 , 0.12MB , pdf

Download

Product graphic 927 BES VSW 25 / 5057690, 51.23 kB, jpg

Scale drawing 927 BES VSW 25 / 5057690, 33.33 kB, jpg

927 BES VSW 25 / 5057690

5057690_KSTP1.stp, 279.58 kB

Vorspannwerkzeug - 927 BES VSW 25.rfa, 376.00 kB
