Pressure clip for 10 cables 10
morepic-1 morepic-2

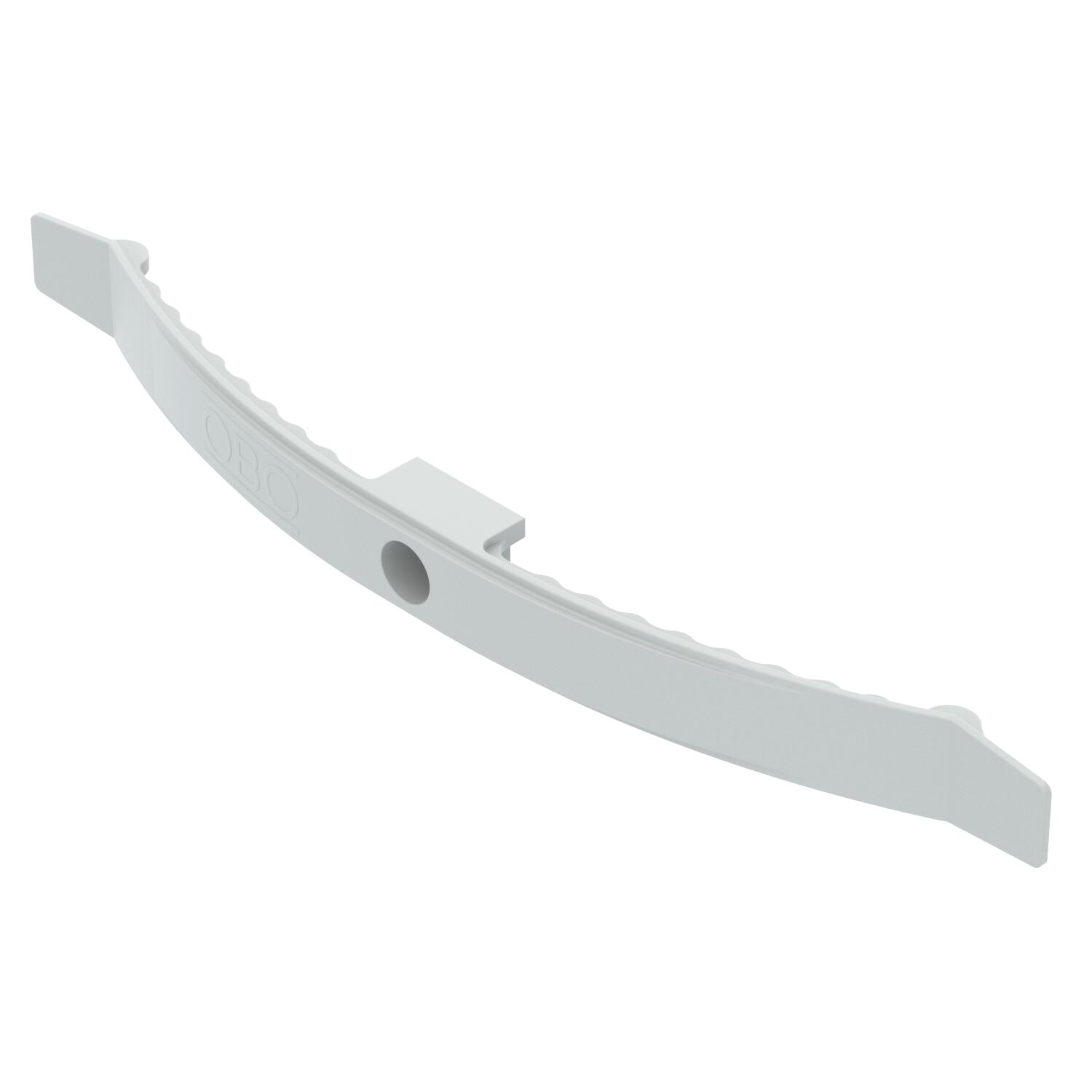

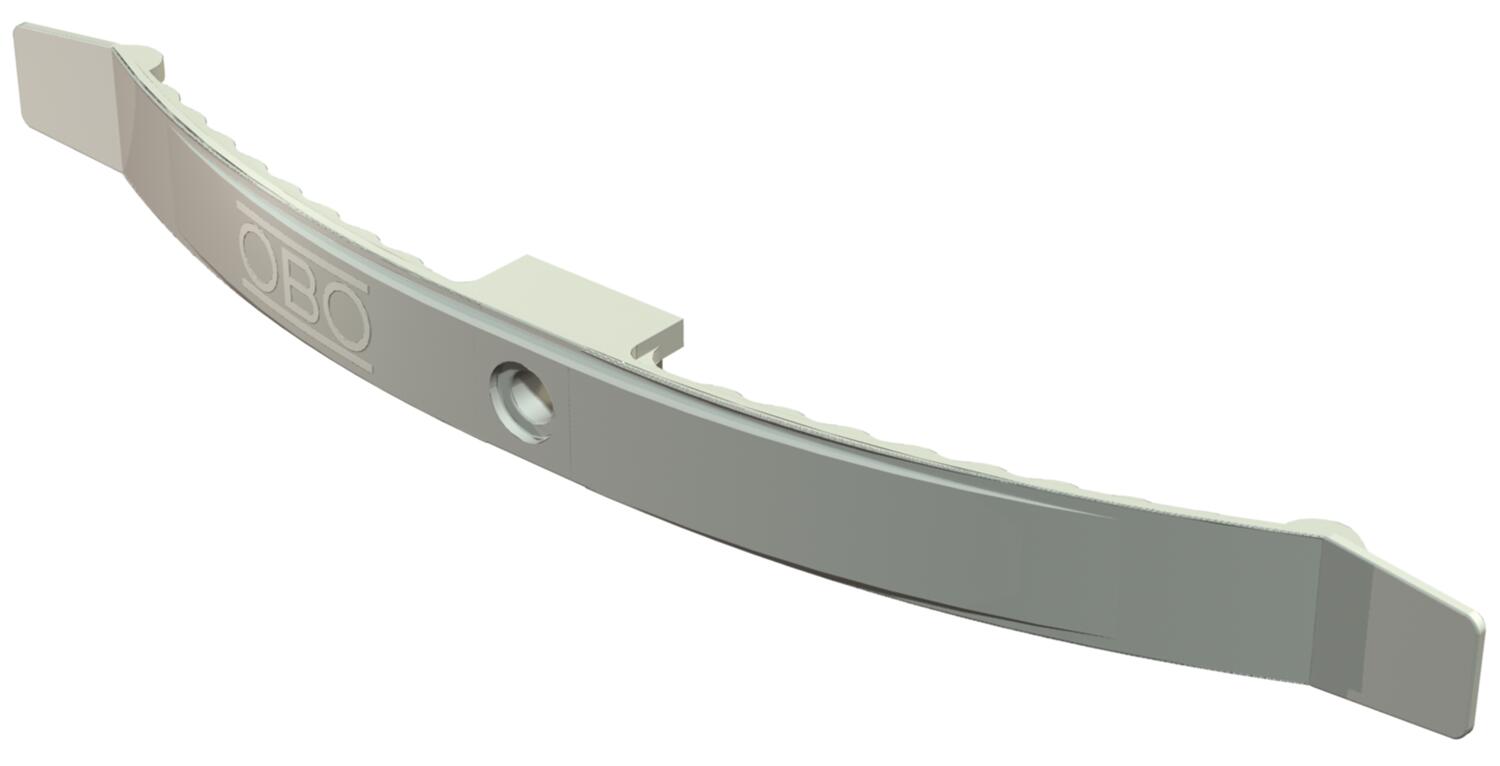

Pressure clip for 10 cables

Item no. 2205041 | EAN 4012195211396

10
Product description
Product description
Standard version for general use, e.g. on intermediate ceilings and partition walls.

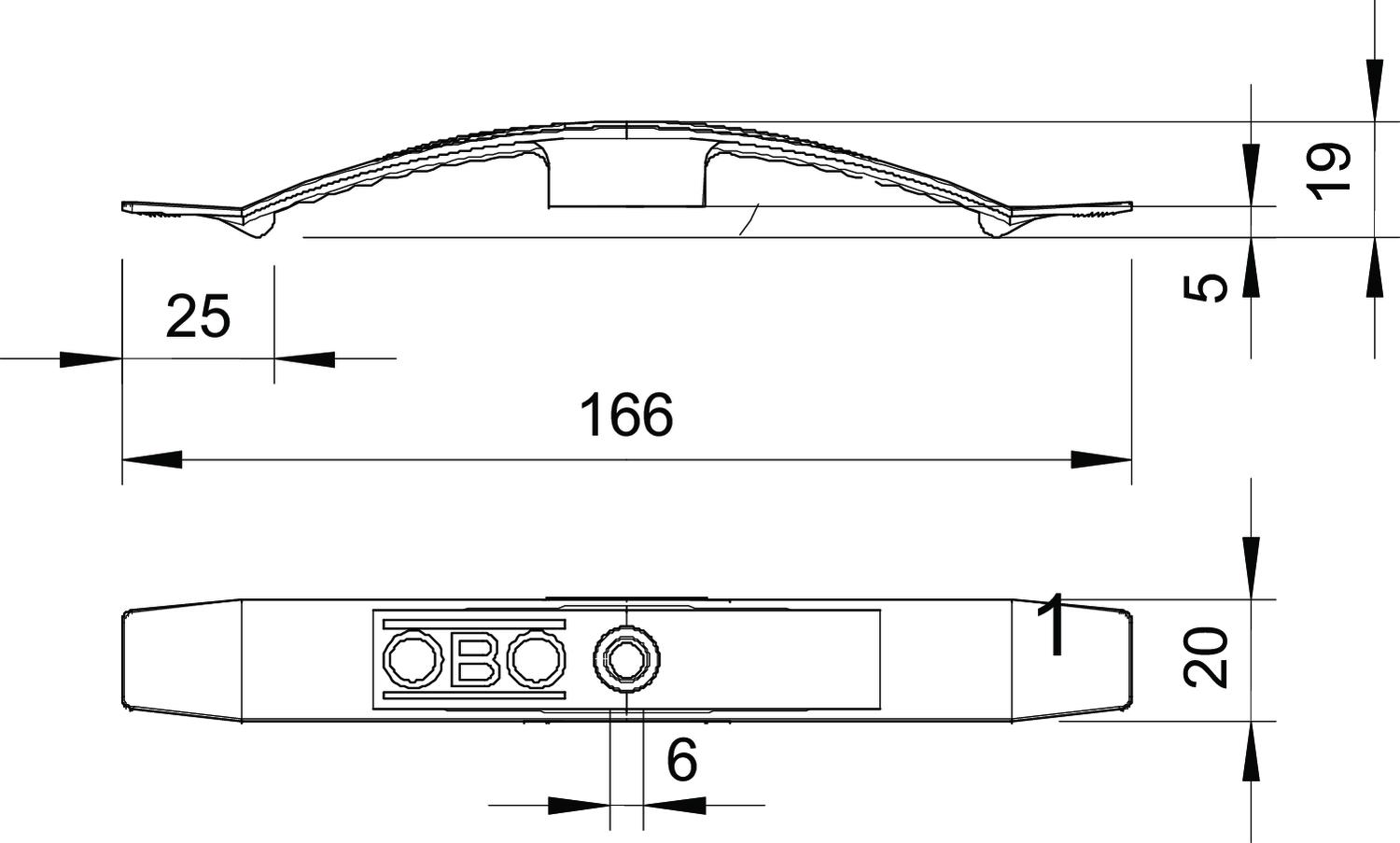

Clamping height 9 mm – with spacer 13 mm.
Fastening hole: 6 mm Ø.
2034 for max. 10 cables NYM 3 x 1.5 mm²
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 2x5 NYM3x1,5
Flame-resistant version no
Halogen-free yes
Maintain electrical functions no
Material Polyamide
No. of conductors NYM 3 x 1.5 10
With anchor no
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2034 SP 10 2204991

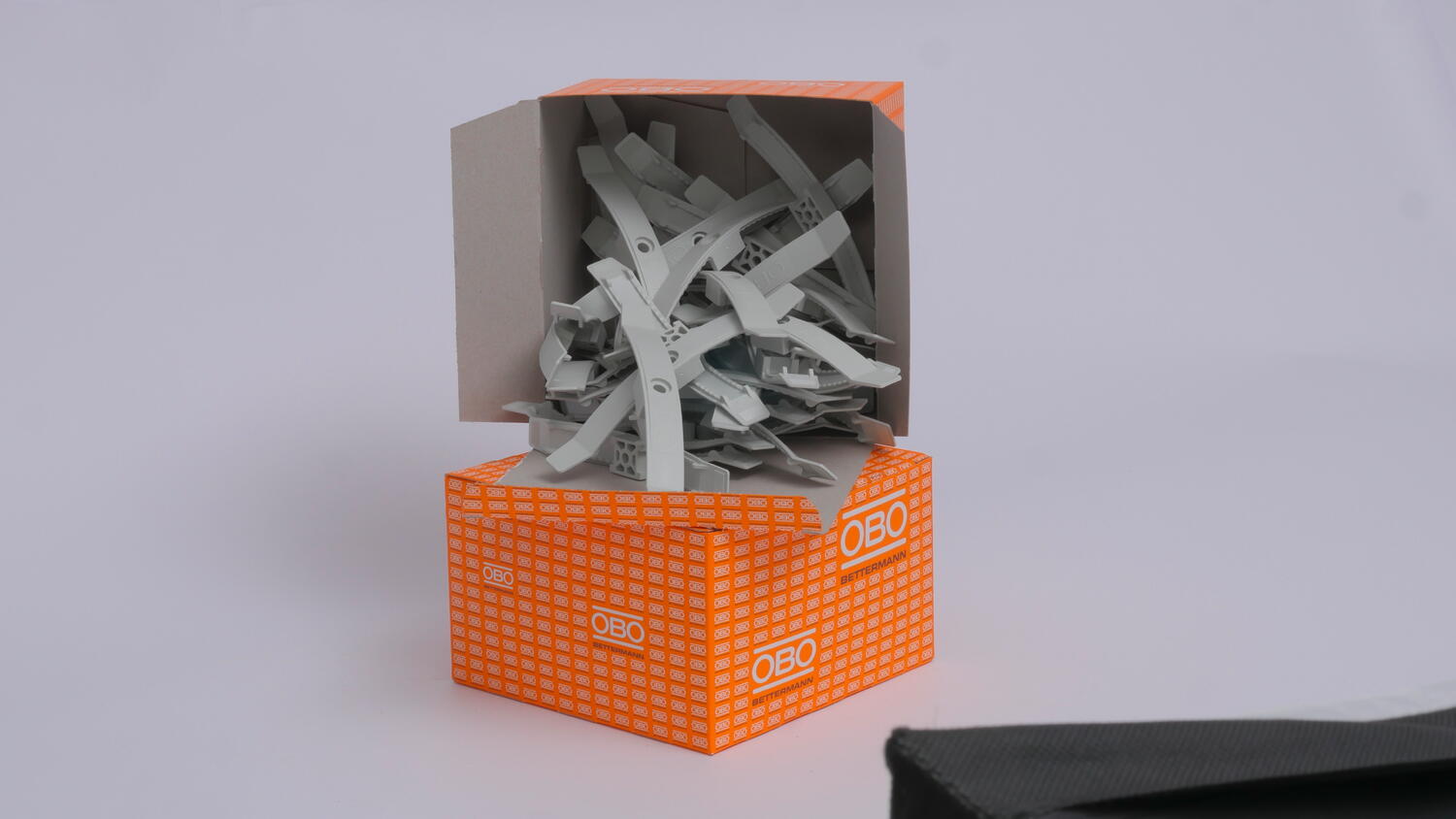

100 piece
2034 10 2205041
50 piece
Downloads

Download

Download

EU declaration of conformity 2034 / 2205041 , 0.06MB , pdf
Download
REACH Declaration of conformity 2034 / 2205041 , 0.12MB , pdf
Download
RoHS Declaration of conformity 2034 / 2205041 , 0.12MB , pdf
Download

2034 / 2205041
