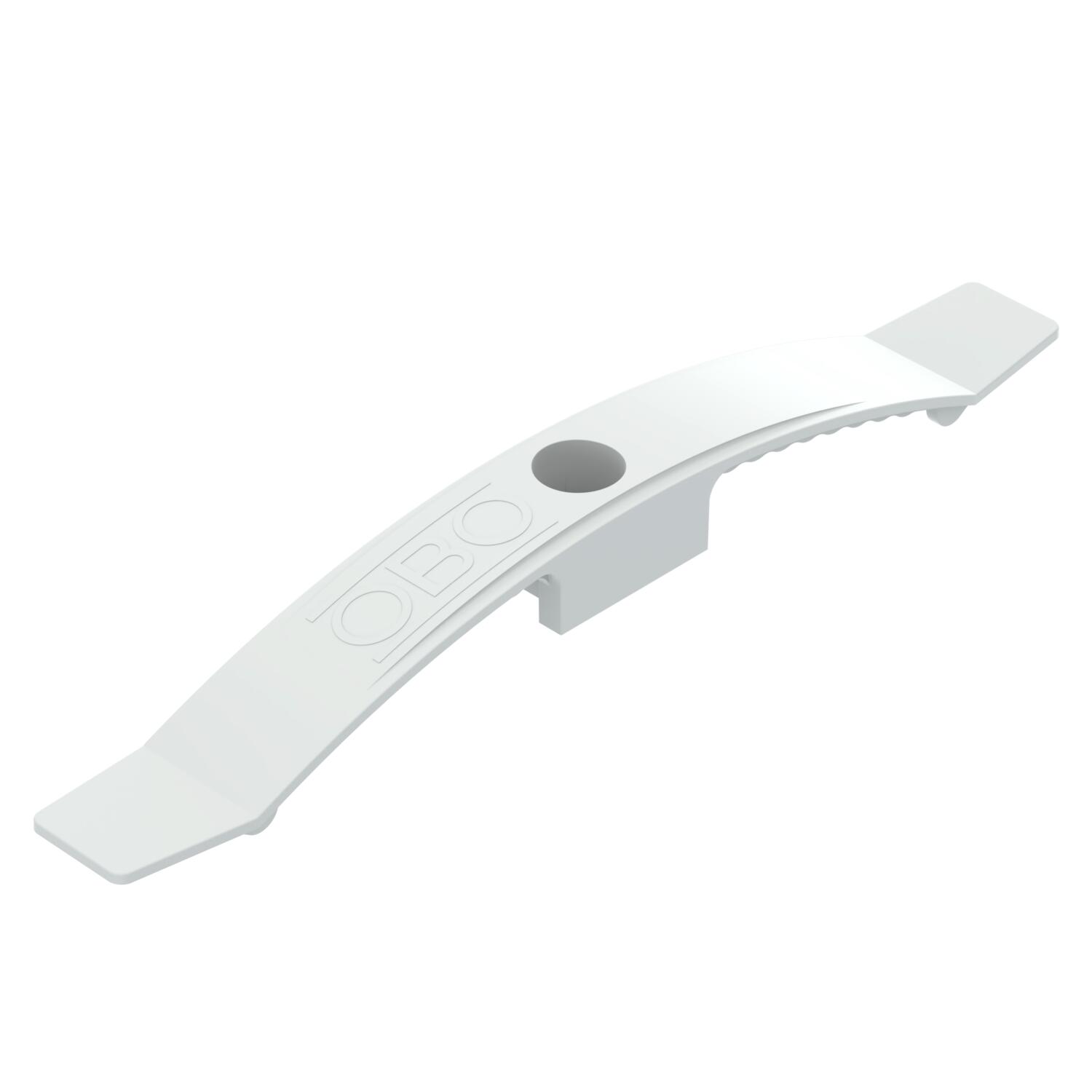

Pressure clip for 10 cables, connectable

Item no. 2205054 | EAN 4012195710042

2205054 / 2034 AS
10
Product description
Product description
The quicker, the better – this also applies to installations in false ceilings.
OBO pressure clips simplify the routing of cables under the ceiling. OBO pressure clip is the perfect installation partner for areas in which every centimetre counts. Mounting is carried out simply using an M6 knock-in anchor. The striking surface on the top guarantees high striking accuracy in the screw. After assembly, the cables are passed under the clips in a "lasso technique" hand movement – and that's all there is to it!
The pressure clip is made of high-quality polyamide.

2034 for max. 10 cables NYM 3 x 1.5 mm²
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • gas-/battery-actuated setting tool
Technical data

Technical data

Colour Light grey; RAL 7035

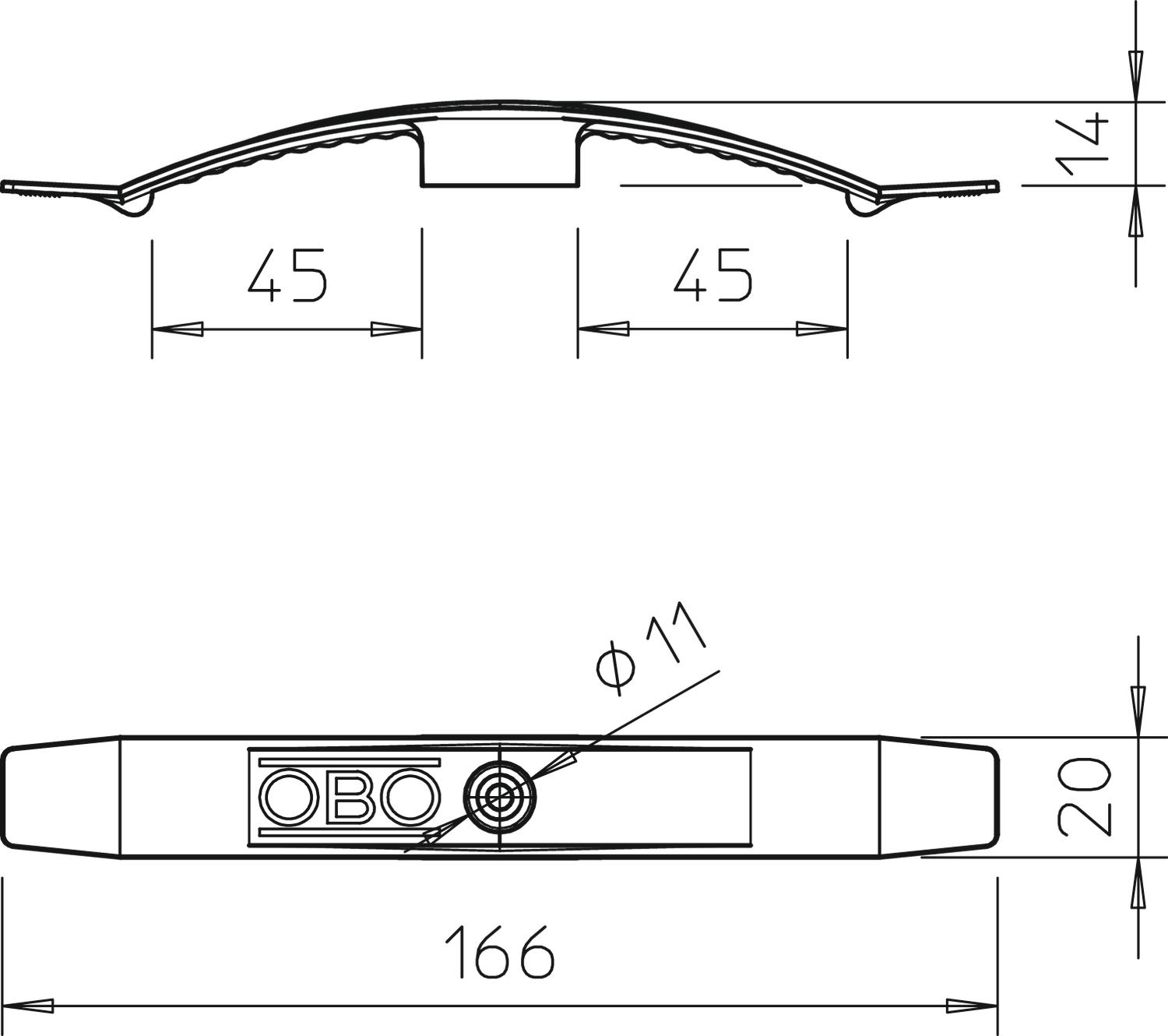

Dimension 2x5 NYM3x1,5
Flame-resistant version no
Halogen-free yes
Maintain electrical functions no
Material Polyamide
No. of conductors NYM 3 x 1.5 10
With anchor no
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2034 AS 10 2205054
50 piece
Downloads

Download

REACH Declaration of conformity 2034 AS / 2205054 , 0.12MB , pdf
RoHS Declaration of conformity 2034 AS / 2205054 , 0.12MB , pdf

2034 AS / 2205054
Download
