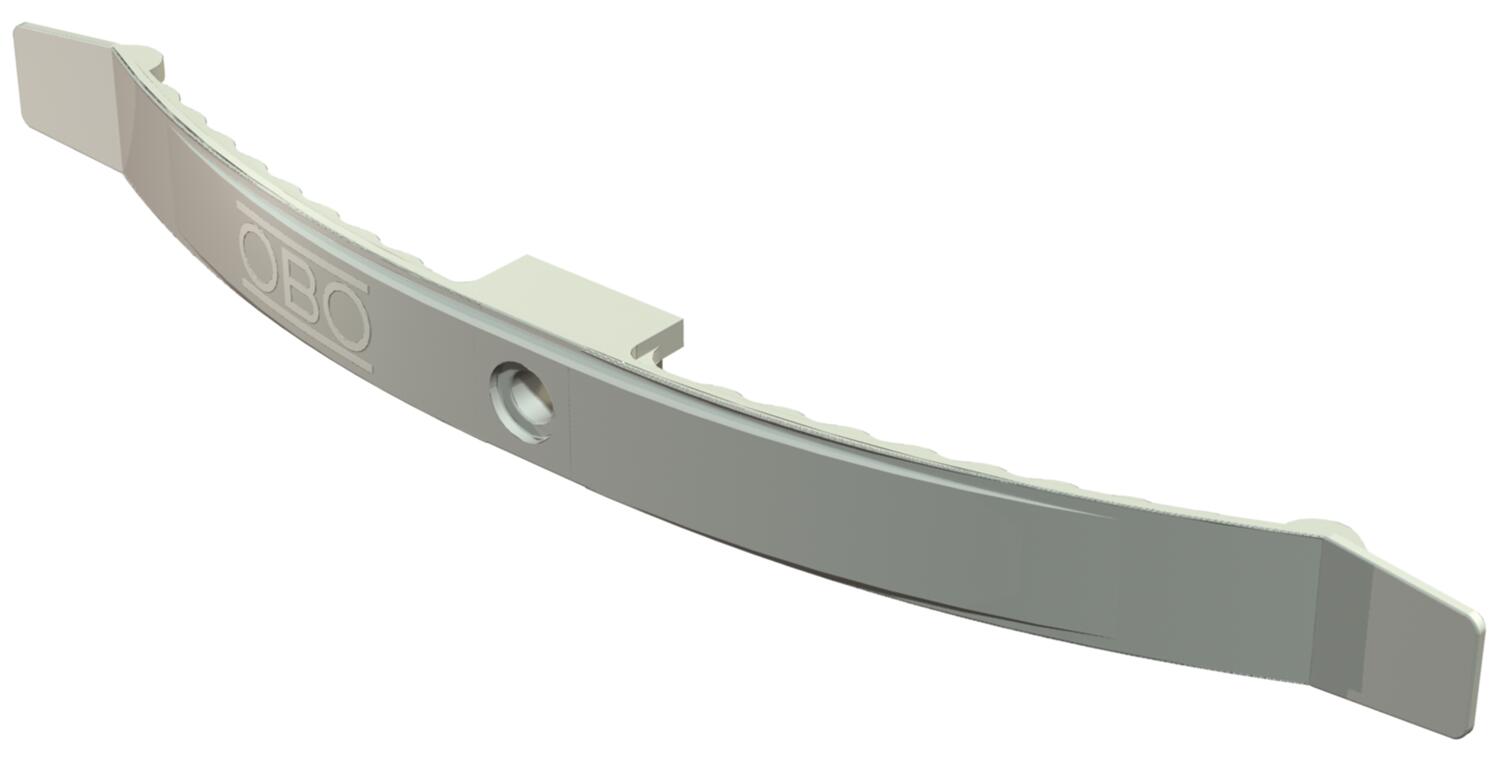

Pressure clip for 10 cables, flame resistant

Item no. 2204924 | EAN 4012195211211

2204924 / 2034 F
10
Product description
Product description
Flame-resistant version, specially for use in suspended ceilings.

Thermoplast. Polyester, stone grey RAL 7030, flame-resistant to VDE 0471/DIN IEC 695 Part 2-1, Test temperature 960 °C, respectively V-O to UL 94, halogen-free.

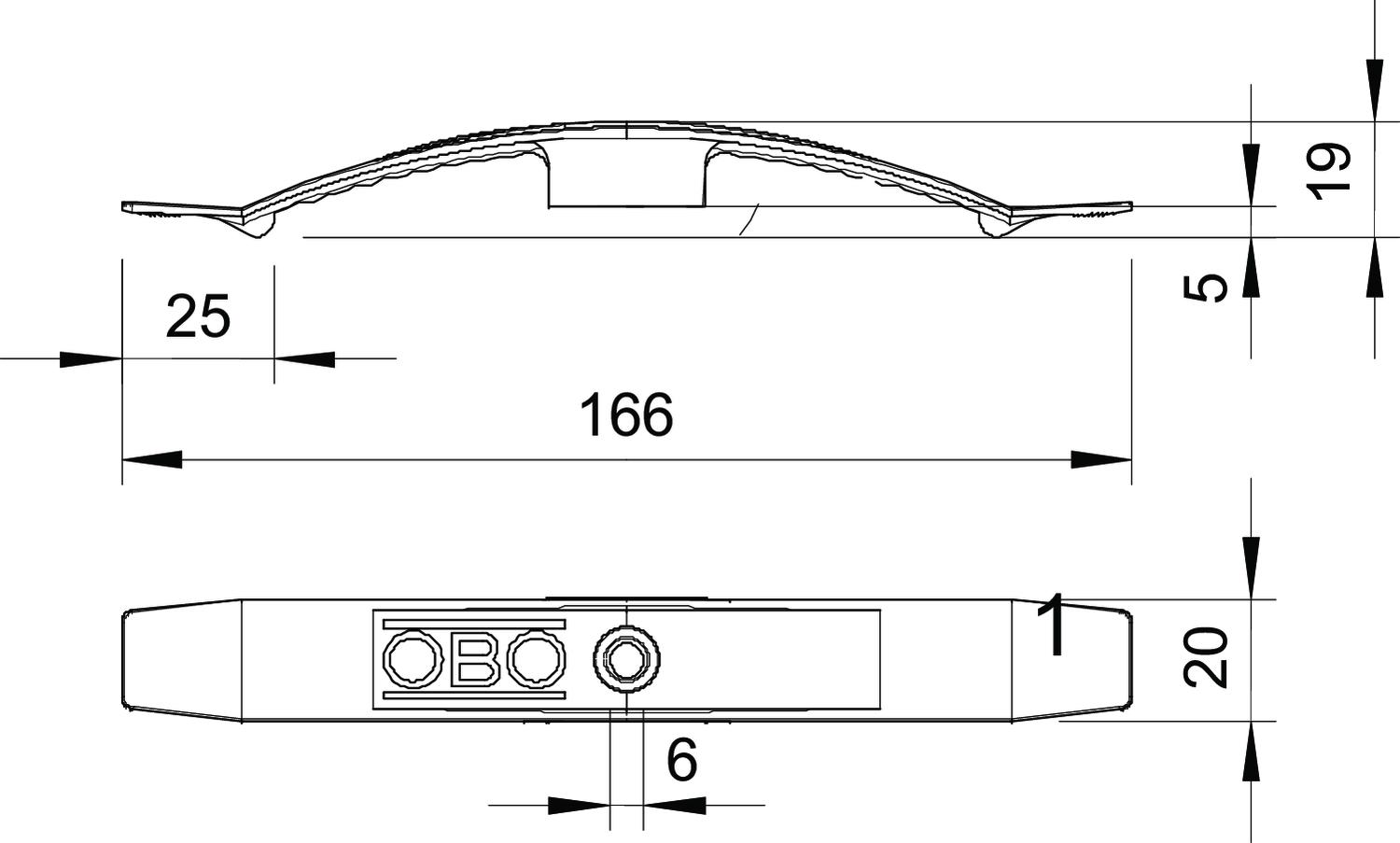

Clamping height: 9 mm, with spacer 13 mm.

Fastening hole: 6 mm Ø.
2034/F for max. 10 conductors NYM 3 x 1.5 mm²
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 960 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Stone grey; RAL 7030
Dimension 2x5 NYM3x1,5
Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C
Flame-resistant version no
Halogen-free yes
Maintain electrical functions no
Material Polybutylene terephthalate
No. of conductors NYM 3 x 1.5 10
With anchor no
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2034 F 10 2204924
50 piece
Downloads

Download

REACH Declaration of conformity 2034 F / 2204924 , 0.12MB , pdf
RoHS Declaration of conformity 2034 F / 2204924 , 0.12MB , pdf

2034 F / 2204924
