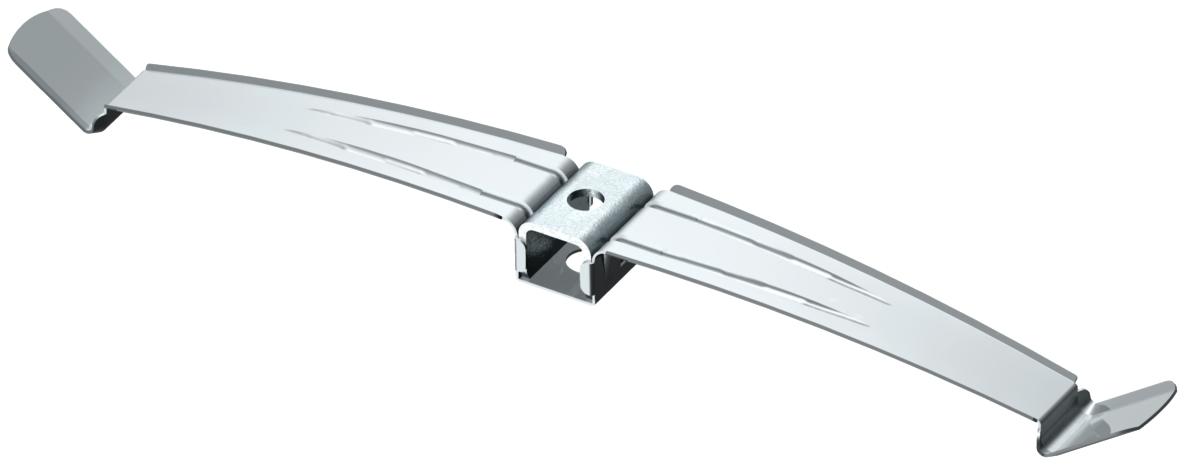

Pressure clip for 16 cables

Item no. 2204000 | EAN 4012195036616

2204000 / 2033 M A2
16
Product description

Product description

The metal pressure clip is halogen and fire load-free, and maintains a good mechanical stability even in fires. The pressure clip is also approved as a cable-specific variant for the maintenance of electrical functionality to DIN 4102 Part 12. The spacer 2033 D 15 x 3 G (must be ordered separately) increases the clamping height of pressure clips from 10 to 13 mm. The pressure clips are suitable for fireproof mounting above suspended fire protection ceilings in accordance with DIN 4102.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Bolt-firing tool
  • Nail device
  • Escape route ceiling mounting with pressure clip
  • Pressure clip, function maintenance, ceiling mounting
  • Function maintenance class E30
Technical data

Technical data

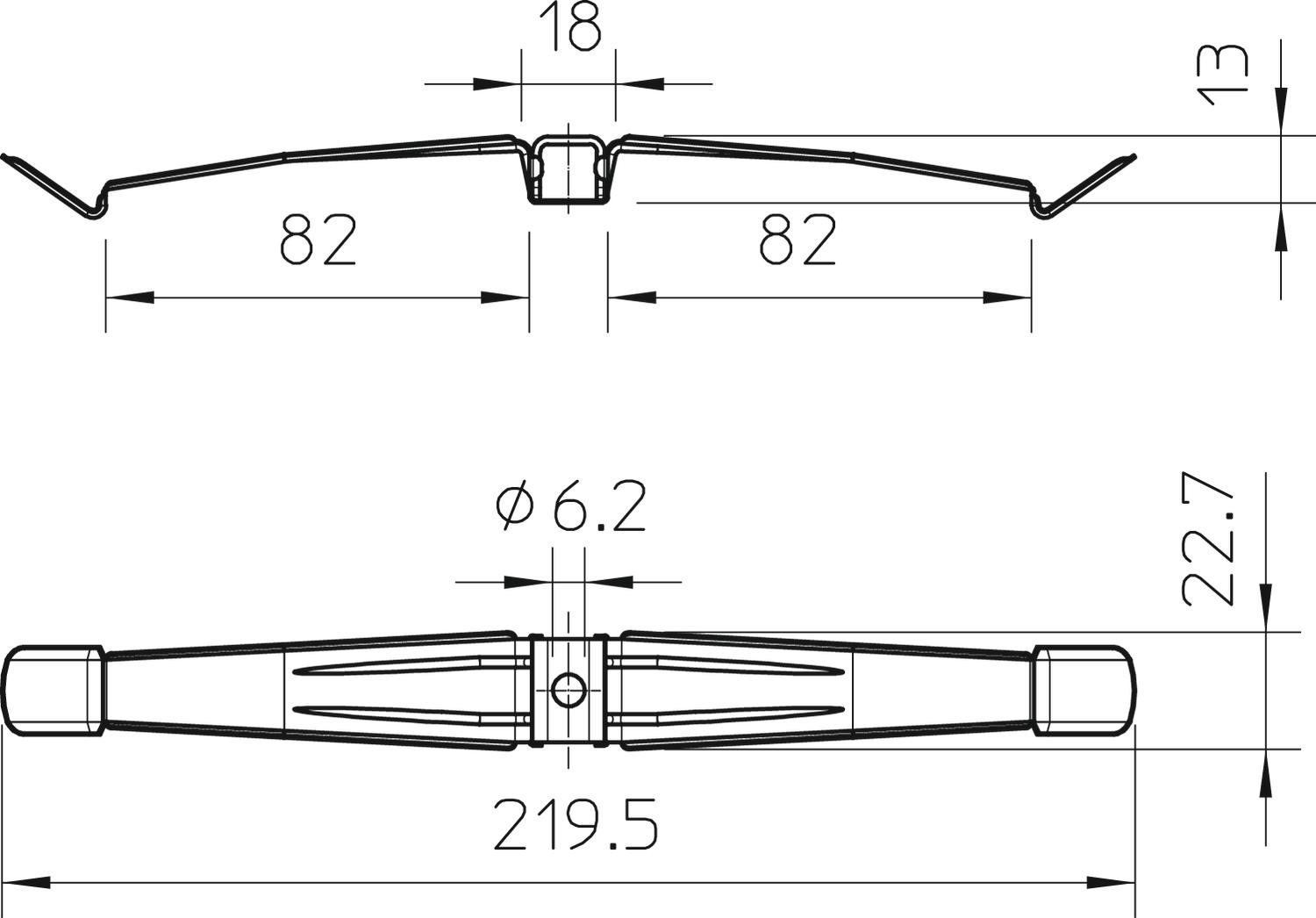

Dimension 2x8 NYM3x1,5
Flame-resistant version no
Halogen-free yes
Maintain electrical functions yes
Material Stainless steel
No. of conductors NYM 3 x 1.5 16
Surface Bright, treated
With anchor no
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2033 M A2 16 2204000
25 piece
