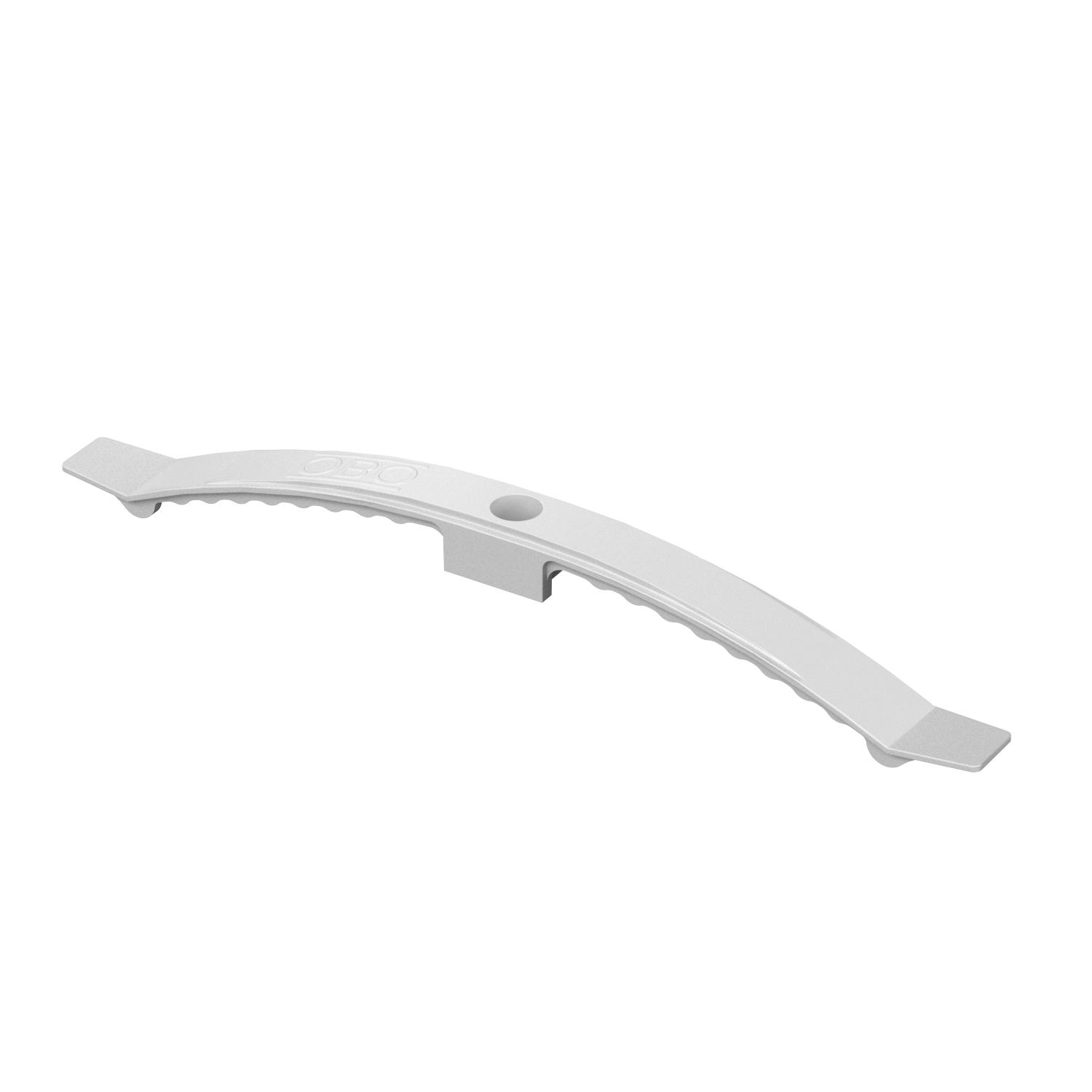

Pressure clip for 16 cables, connectable

Item no. 2205053 | EAN 4012195710035

2205053 / 2033 AS
16
Product description

Product description

The quicker, the better – this also applies to installations in false ceilings.
OBO pressure clips simplify the routing of cables under the ceiling. OBO pressure clip is the perfect installation partner for areas in which every centimetre counts. Mounting is carried out simply using an M6 knock-in anchor. The striking surface on the top guarantees high striking accuracy in the screw. After assembly, the cables are passed under the clips in a "lasso technique" hand movement – and that's all there is to it!
The pressure clip is made of high-quality polyamide.

2033 for max. 16 cables NYM 3 x 1.5 mm²

  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nail device
Technical data

Technical data

Colour Light grey; RAL 7035

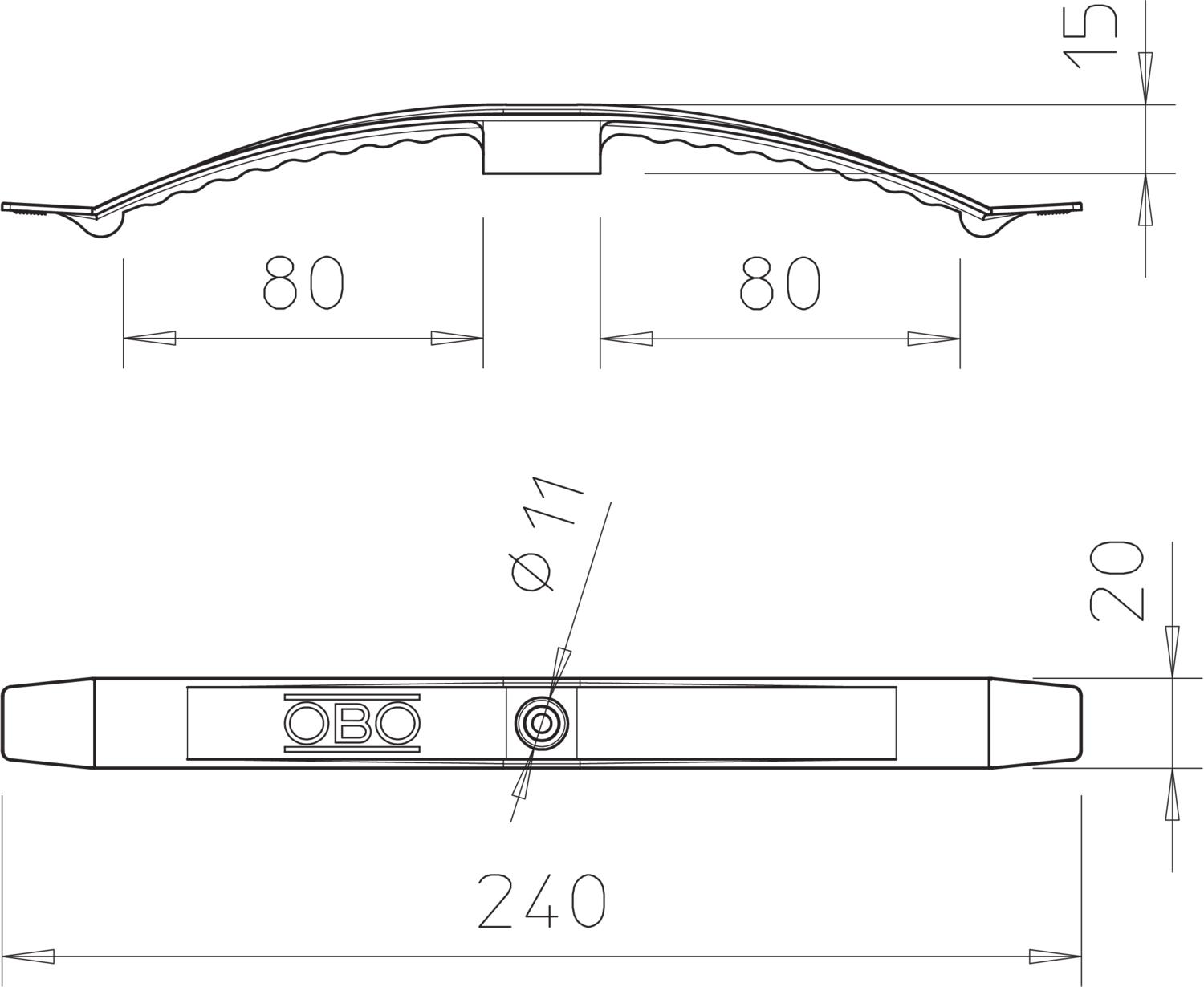

Dimension 2x8 NYM3x1,5
Flame-resistant version no
Halogen-free yes
Maintain electrical functions no
Material Polyamide
No. of conductors NYM 3 x 1.5 16
With anchor no
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2033 AS 16 2205053
25 piece
