Pressure clip for 8 cables, connectable 8
morepic-1 morepic-2

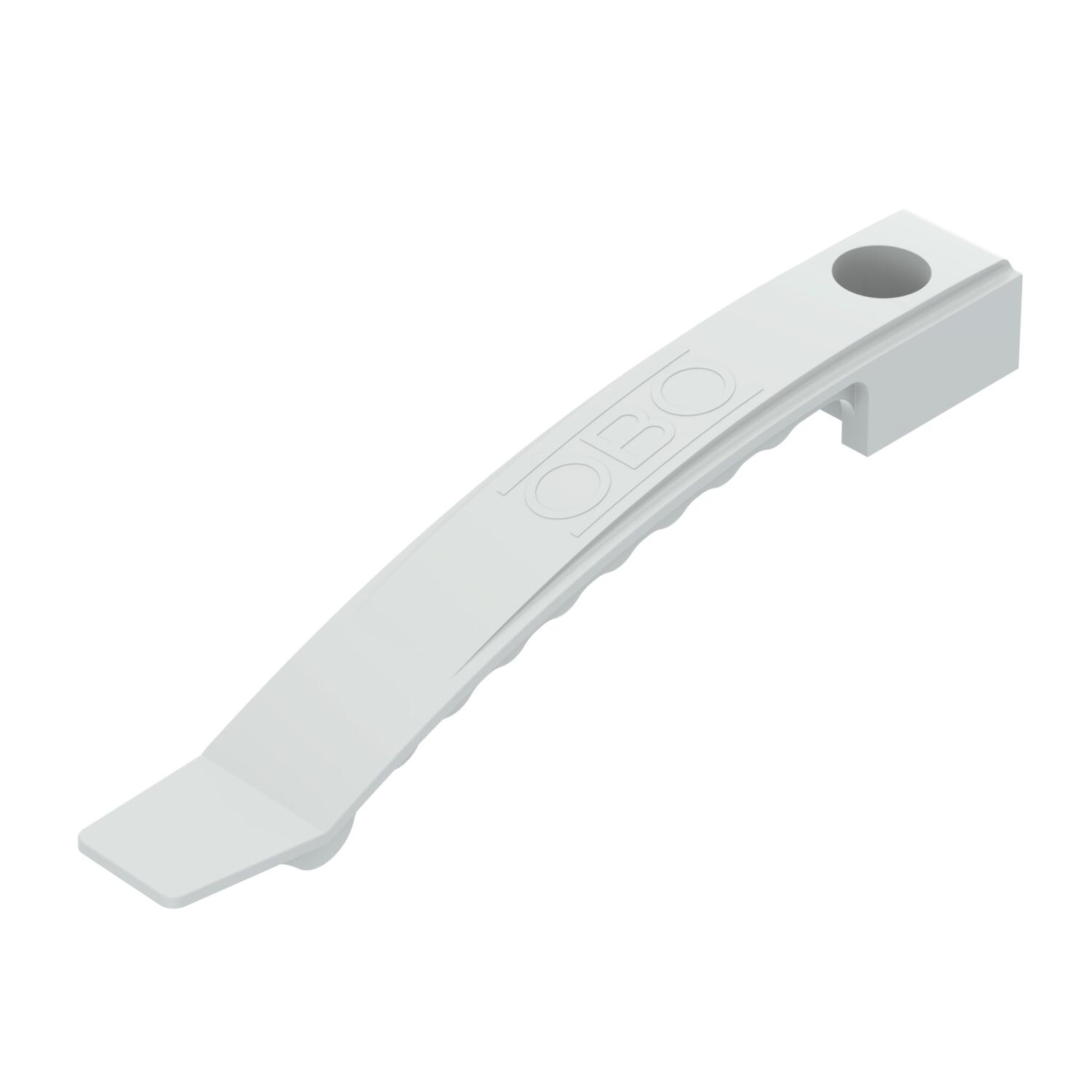

Pressure clip for 8 cables, connectable

Item no. 2205052 | EAN 4012195710028

2205052 / 2032 AS
8
Product description

Product description

Version suitable for fixing with gas pressure nail gun (i.e. by SPIT), for example for use on intermediate ceilings and partition walls.

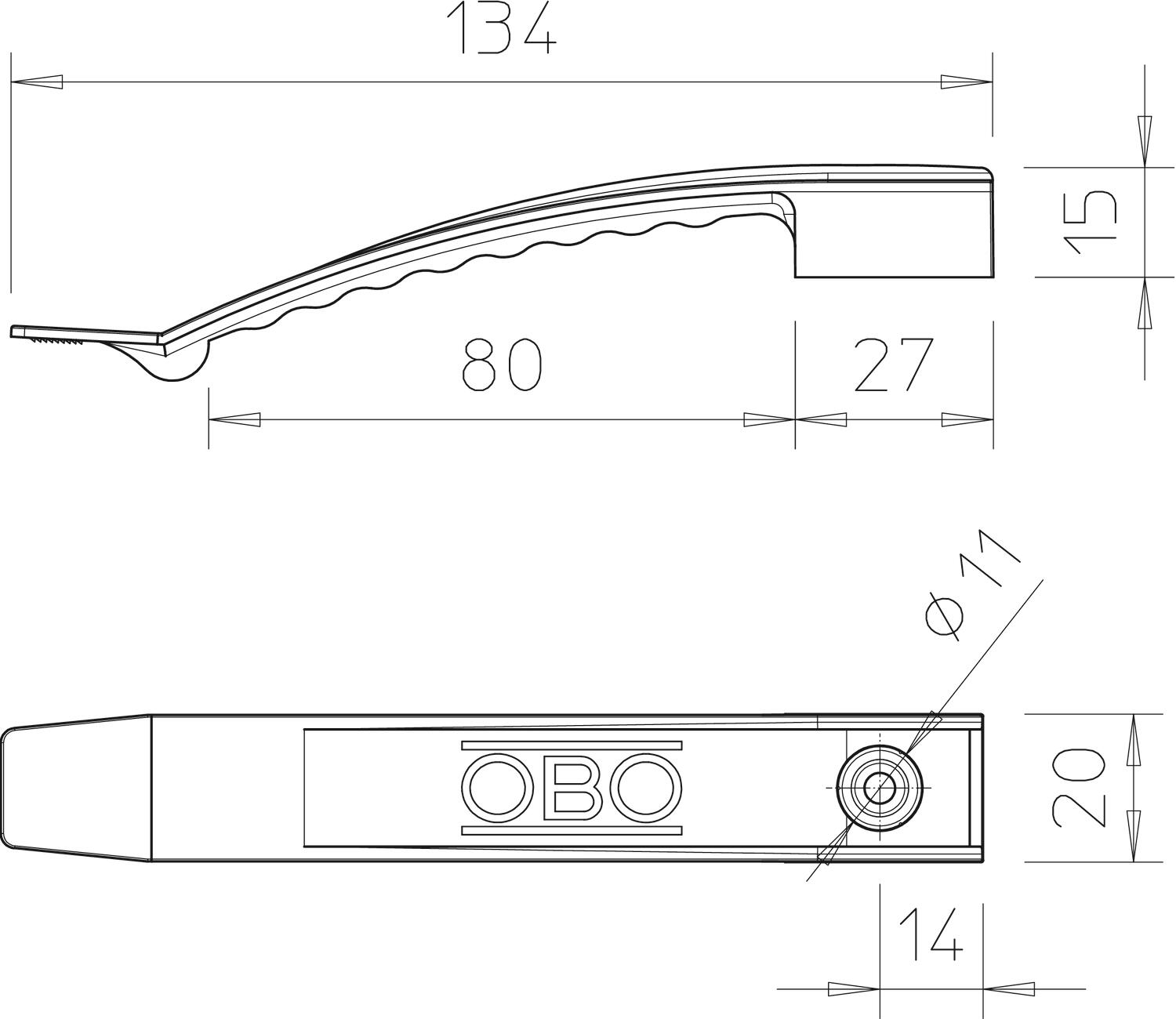

Clamping height: 9 mm, with spacer 13 mm.

Fastening hole: 7 mm Ø.
2032 for max. 8 cables NYM 3 x 1.5 mm²
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nail device
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 1x8 NYM3x1,5
Flame-resistant version no
Halogen-free yes
Maintain electrical functions no
Material Polyamide
No. of conductors NYM 3 x 1.5 8
With anchor no
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2032 AS 8 2205052
50 piece
