- Product description
-
Product description

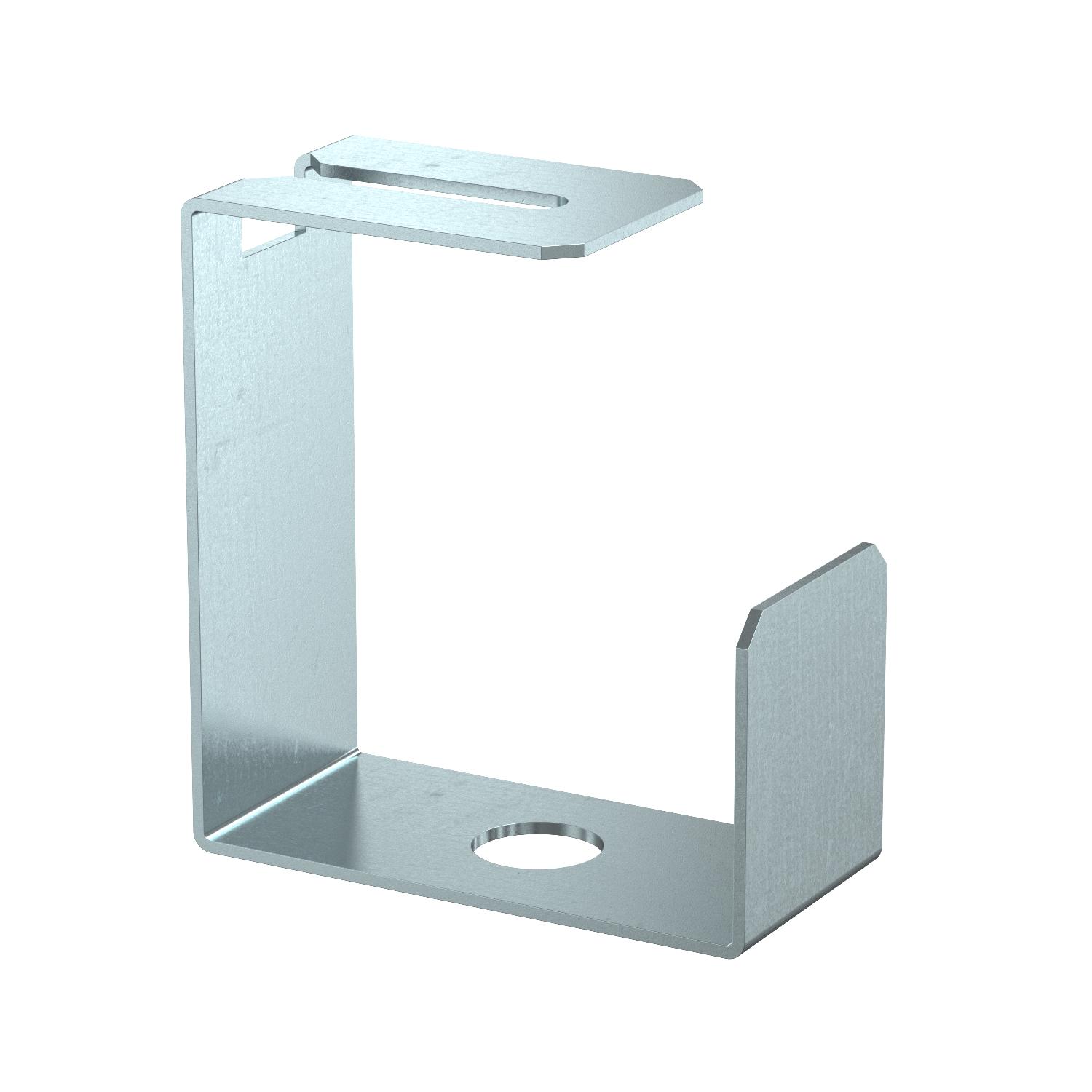

Installation aid against cables falling out during ceiling mounting of the PLM D 1220 installation duct.
- Technical data
-
Technical data

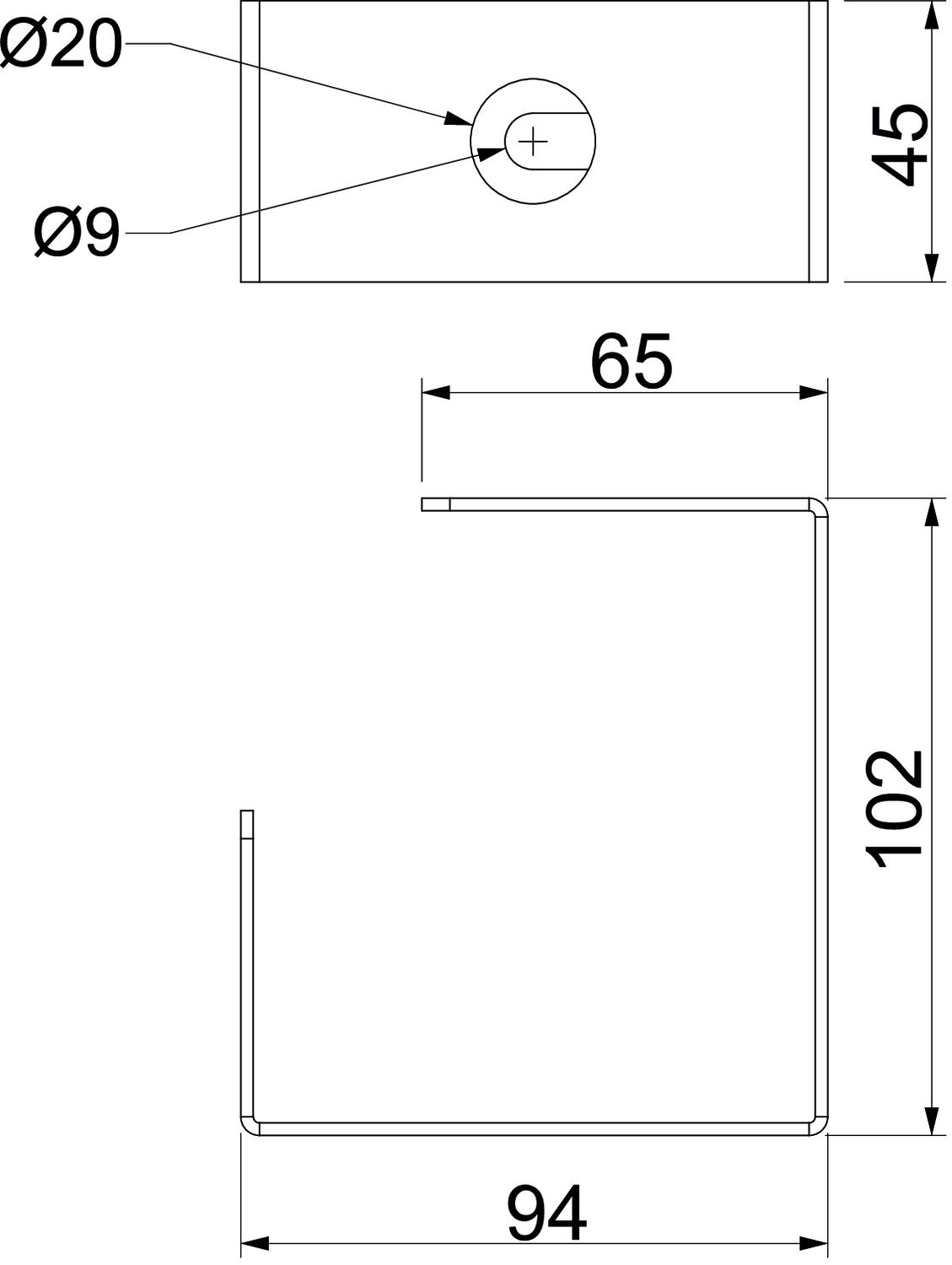

Accessories yes Dimension 94x45x102 Dimension b 65 mm Dimension B 94 mm Dimension H 102 mm Dimension t 45 mm Fastening type Screw-on Material Steel Spare part no Surface Strip galvanized Type of accessory Miscellaneous - All types
- Downloads
-
Data sheet PLM CB 1220 FS / 7218150 , 0.16MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfDeclaration of conformity PLM CB 1220 FS / 7218150 , 0.11MB , pdf
