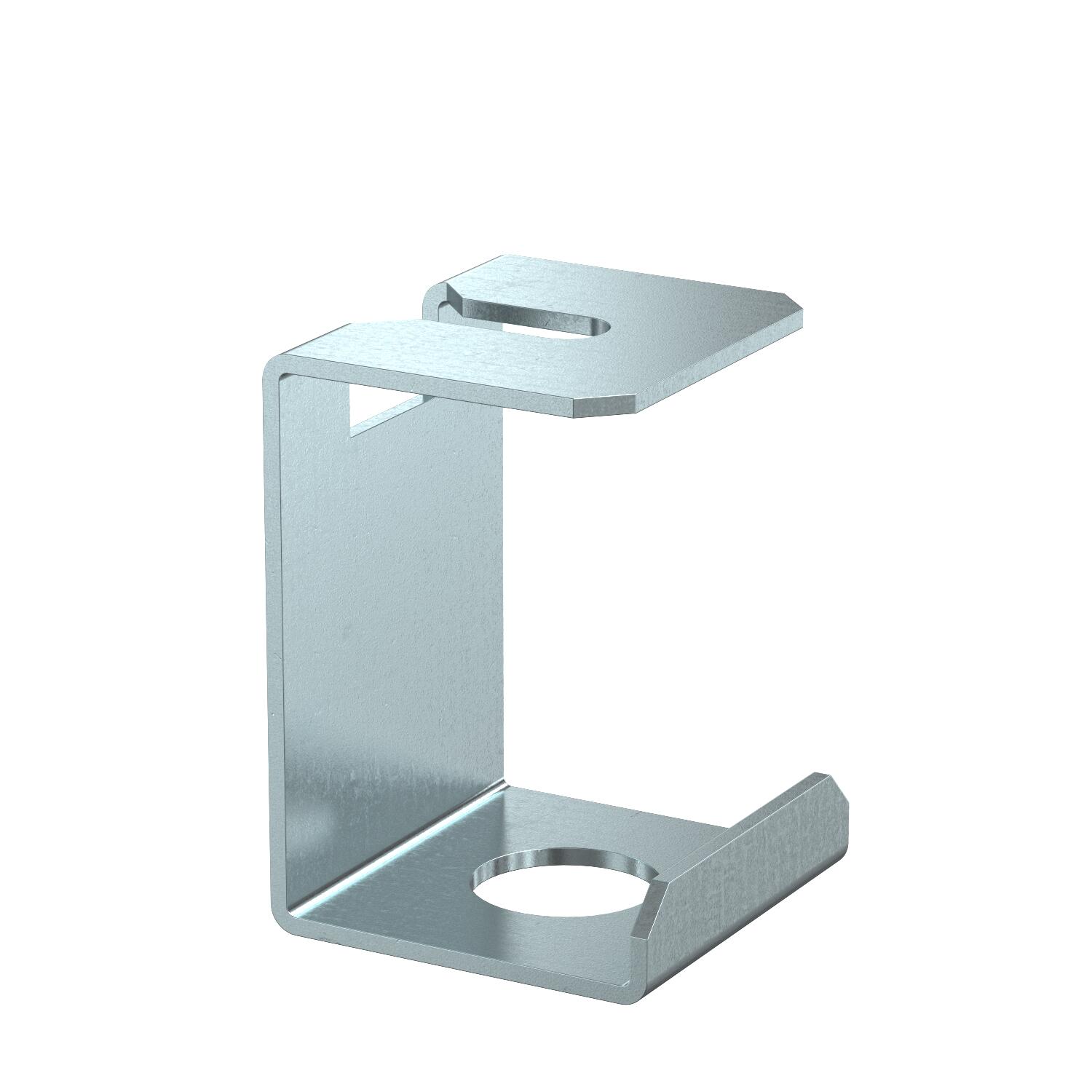

Pressure clip for ceiling mounting, duct height 80 mm

Item no. 7218148 | EAN 4012197310455

Product description

Product description

Installation aid against cables falling out during ceiling mounting of the PLM D 0810 installation duct.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Accessories yes

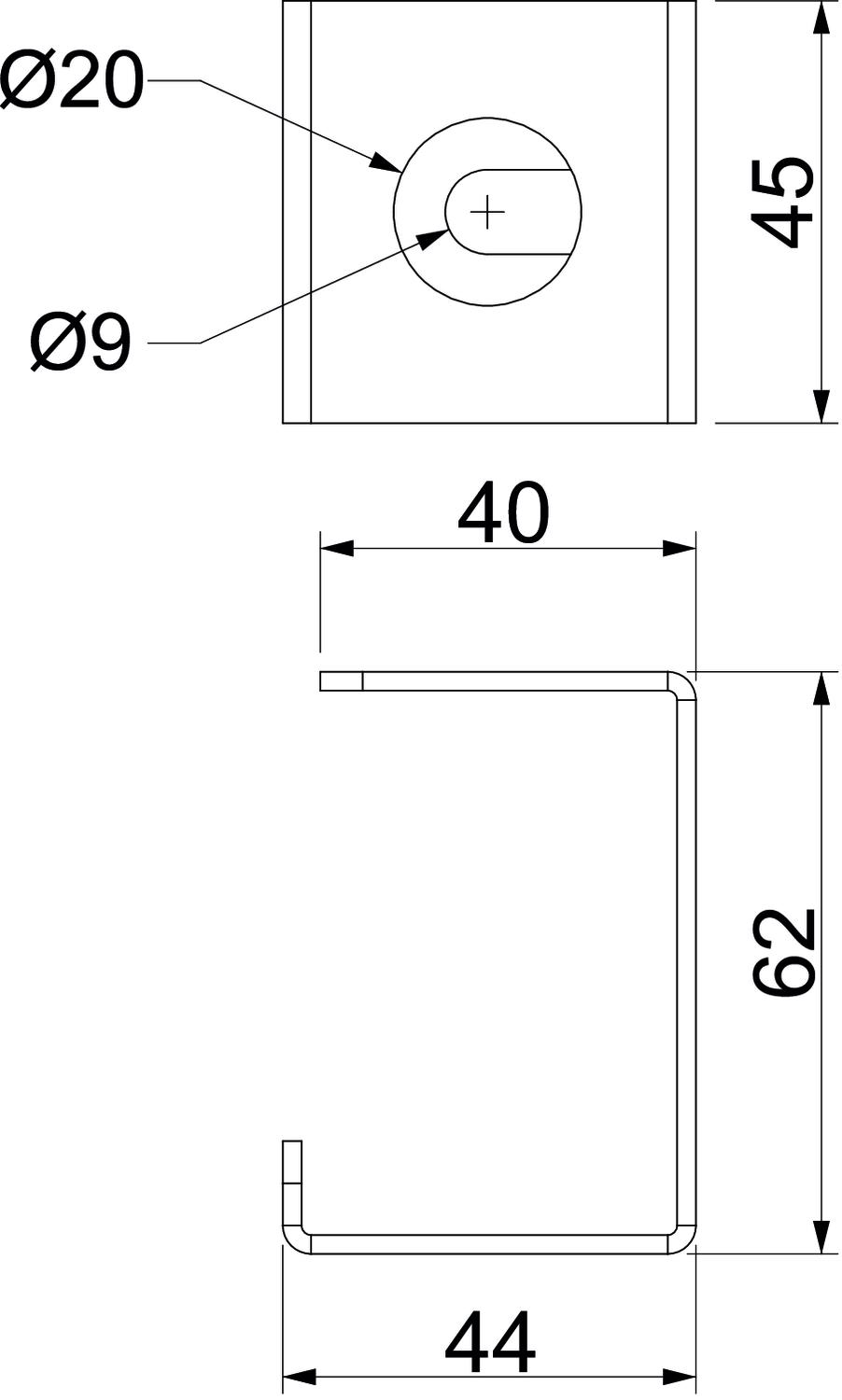

Dimension 44x45x62
Dimension b 40 mm
Dimension B 44 mm
Dimension H 62 mm
Dimension t 45 mm
Fastening type Screw-on
Material Steel
Spare part no
Surface Strip galvanized
Type of accessory Miscellaneous
All types

All types

Types Dimension A Item no. Quantity SSU
PLM CB 0810 FS 7218148
10 piece
Downloads

Download

Download

No invitation to tender text is available for this product.
