Pressure clip with knock-in anchor, for 16 cables 16
morepic-1 morepic-2

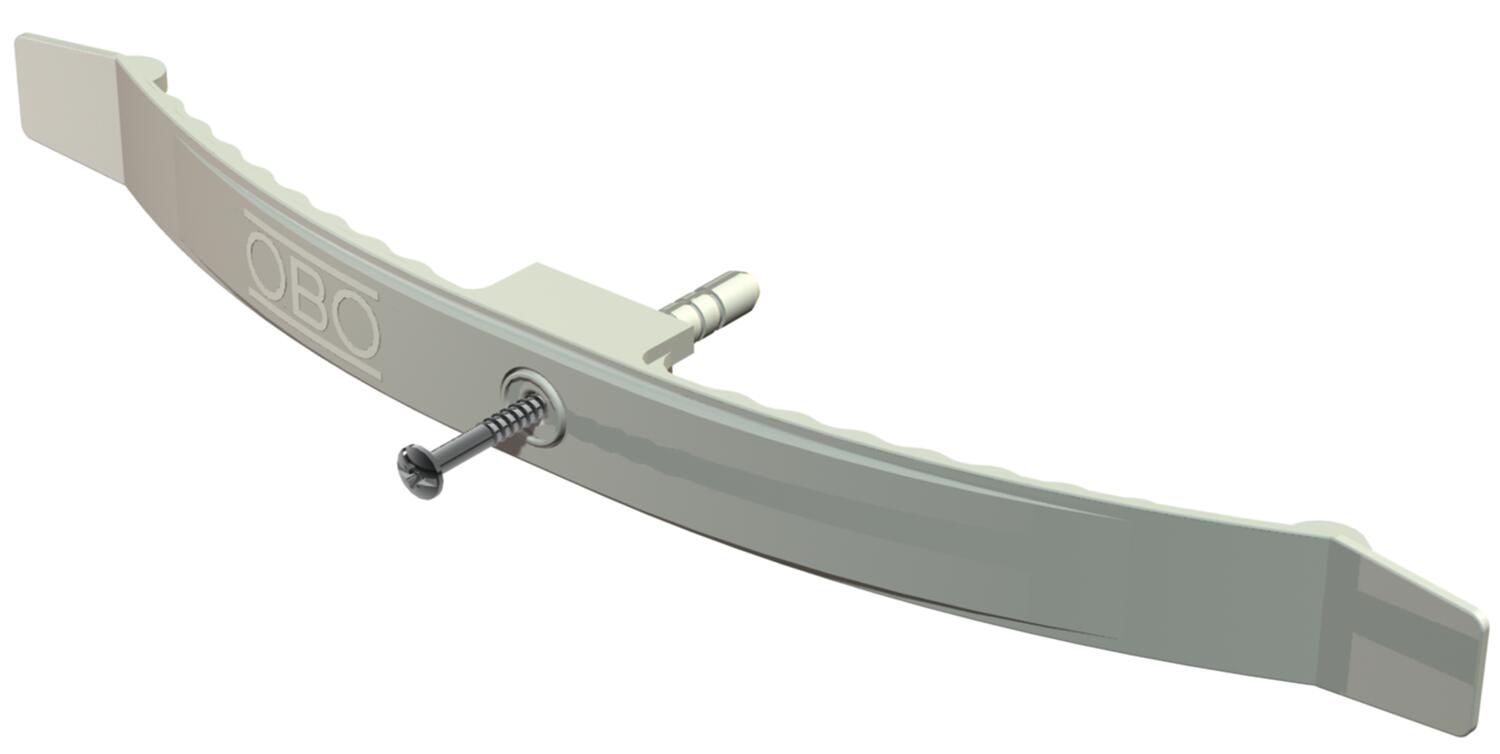

Pressure clip with knock-in anchor, for 16 cables

Item no. 2204819 | EAN 4012195210979

16
Product description
Product description
With pre-mounted knock-in anchor, 6 mm Ø.
Required drill hole depth 50 mm.
Clamping height 9 mm – with spacer 13 mm.
Fastening hole 6 mm Ø.
2033/SD for max. 16 cables NYM 3 x 1.5 mm²
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 2x8 NYM3x1,5
Flame-resistant version no
Halogen-free yes

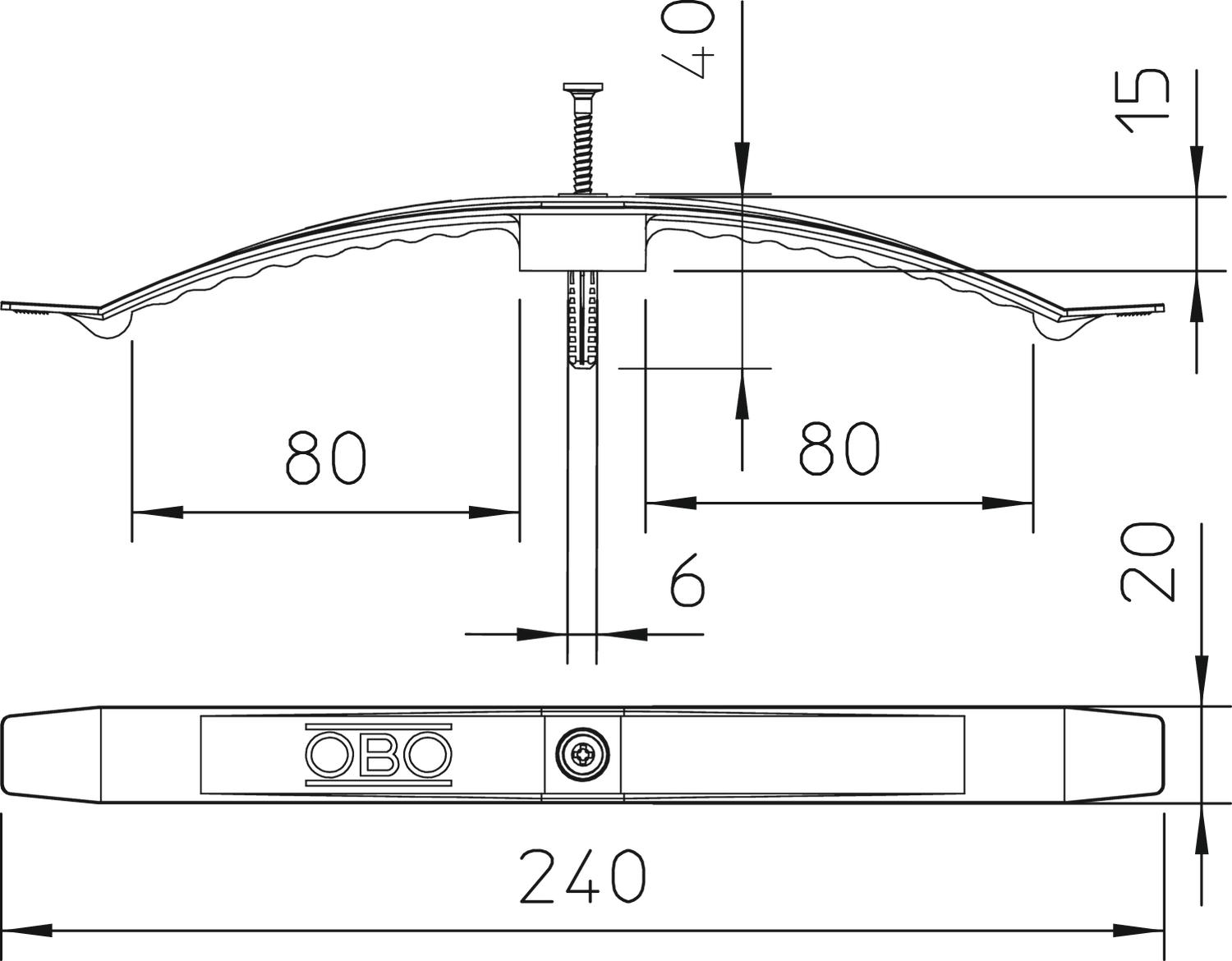

Height 64 mm
Length 240 mm
Maintain electrical functions no
Material Polyamide
No. of conductors NYM 3 x 1.5 16
Width 20 mm
With anchor yes
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2033 SD 16 2204819
25 piece
2033 SD SP 16 2204878
100 piece
Downloads

Download

Download

EU declaration of conformity 2033 SD / 2204819 , 0.06MB , pdf
Download
REACH Declaration of conformity 2033 SD / 2204819 , 0.12MB , pdf
Download
RoHS Declaration of conformity 2033 SD / 2204819 , 0.12MB , pdf
Download

2033 SD / 2204819
Download
