Pressure clip with push-fit anchor 16
morepic-1 morepic-2

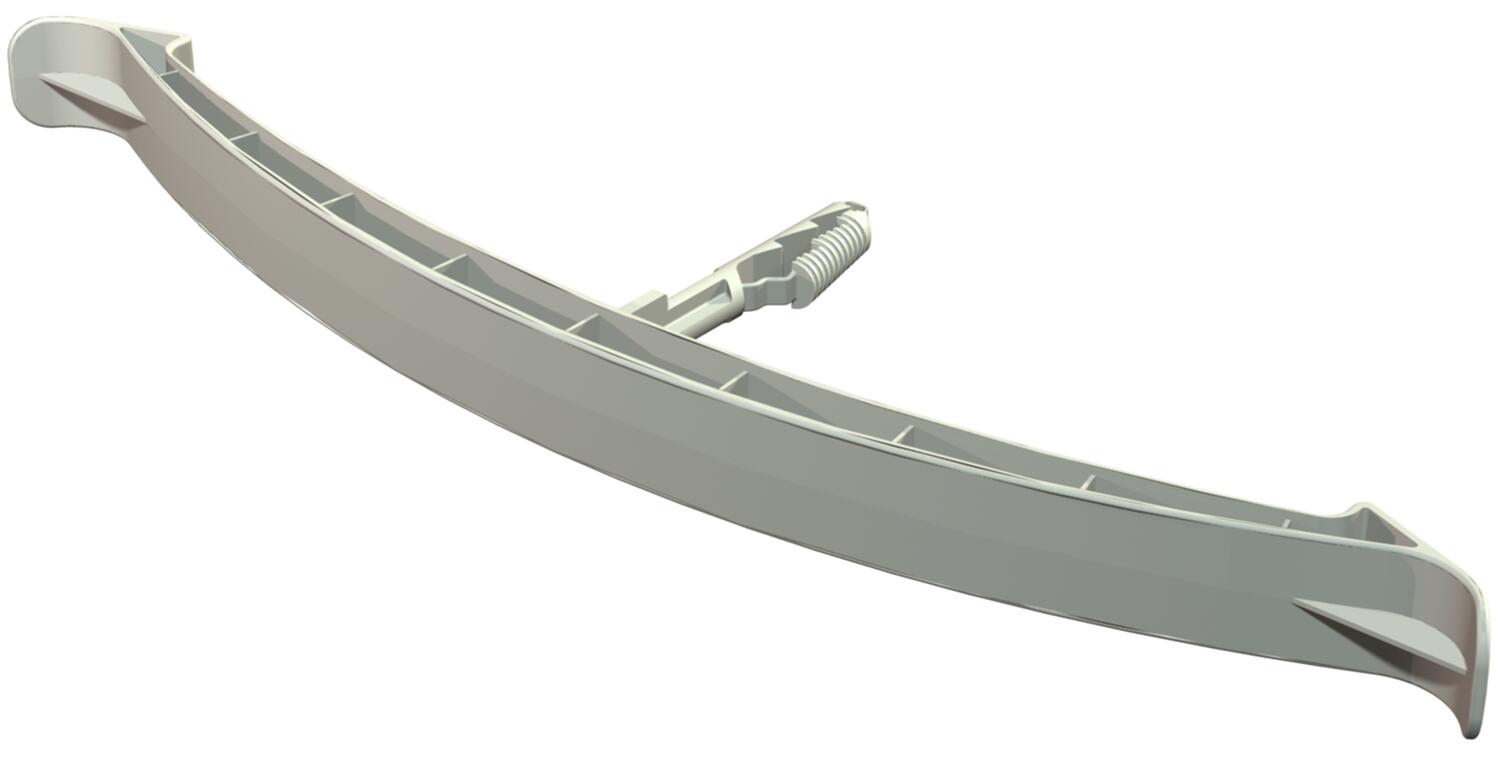

Pressure clip with push-fit anchor

Item no. 2204541 | EAN 4012195693253

2204541 / 2033 STD
16
Product description
Product description
With moulded push-fit plug, 6 mm Ø.
For max. 16 cables NYM 3 x 1.5 mm²
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 2x8 NYM3x1,5
Flame-resistant version no
Halogen-free yes
Maintain electrical functions no
Material Polyamide
No. of conductors NYM 3 x 1.5 16
With anchor yes
All types

All types

Types No. of conductors NYM 3 x 1.5 Item no. Quantity SSU
2033 STD 16 2204541
25 piece
Downloads

Download

Download

EU declaration of conformity 2033 STD / 2204541 , 0.06MB , pdf
Download
REACH Declaration of conformity 2033 STD / 2204541 , 0.12MB , pdf
Download
RoHS Declaration of conformity 2033 STD / 2204541 , 0.12MB , pdf
Download

2033 STD / 2204541
Download
