Pressure ISO clip 3050, double, light grey 6 | 16 | Light grey; RAL 7035
morepic-1 morepic-2

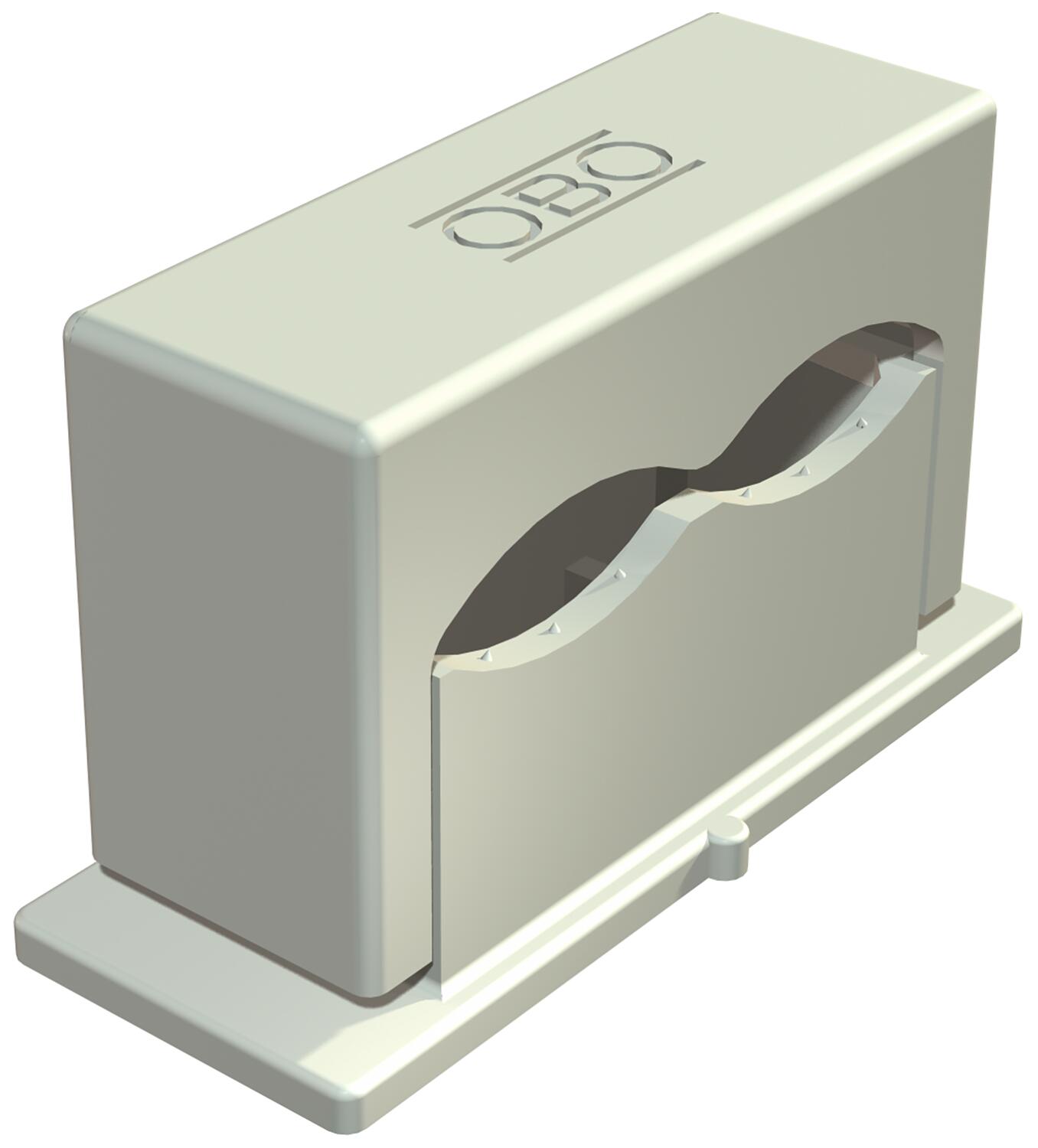

Pressure ISO clip 3050, double, light grey

Item no. 2115018 | EAN 4012195196211

2115018 / 3050 2 6-16
6 mm
16 mm
Light grey; RAL 7035
Product description

Product description

For two cables, with adhesive base, slot and for screwing to M6 thread.
Use the Impu-Fix ribbon conductor quick adhesive, type 509, to stick the polystyrene clips to masonry and concrete.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Clamping range D, max. 16 mm
Clamping range D, min. 6 mm
Colour Light grey; RAL 7035
Dimension 6-16mm

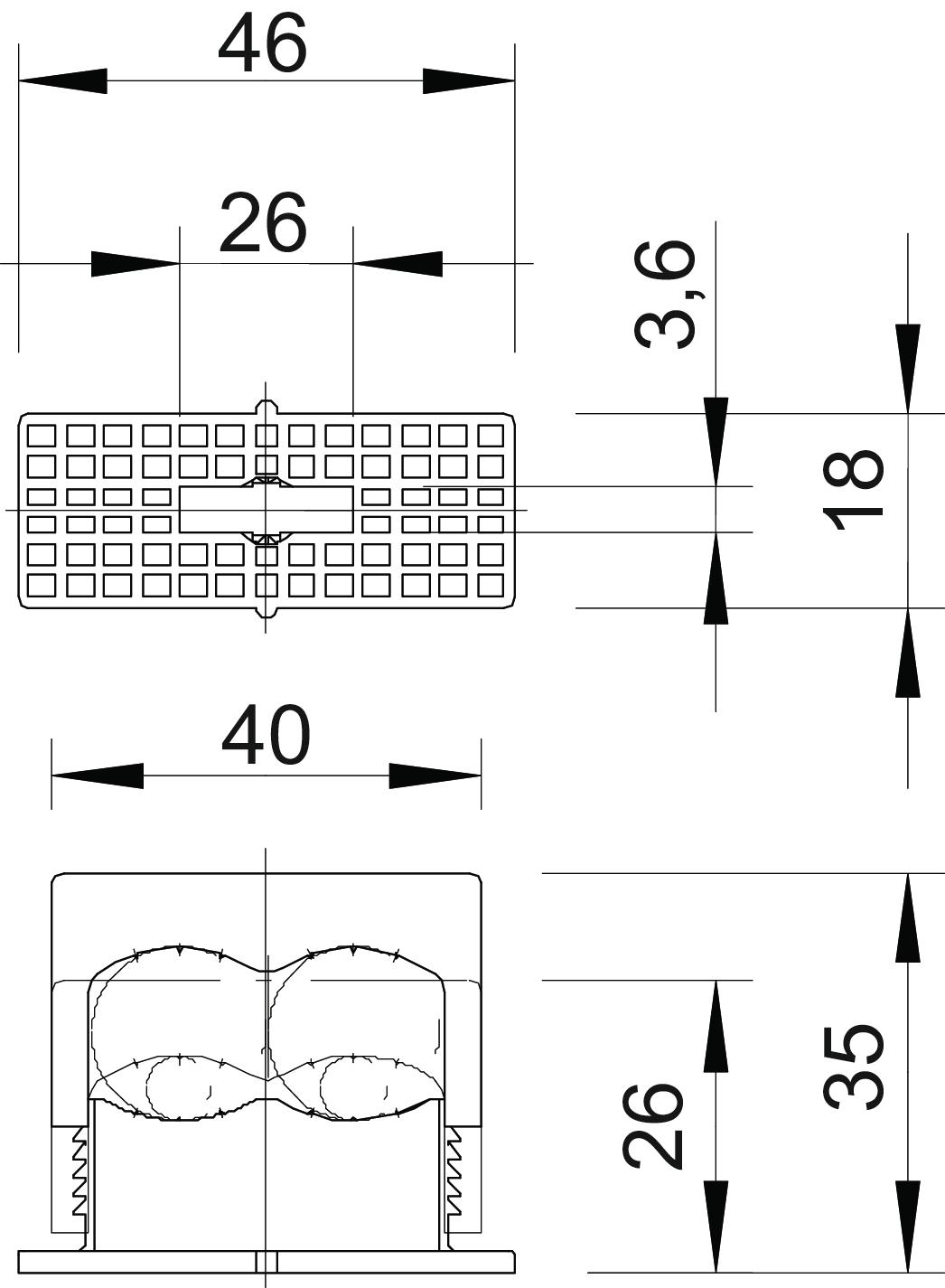

Dimension a 46 mm
Dimension a1 (mm) 26 mm
Dimension b 18 mm
Dimension b1 3,8 mm
Dimension c 40 mm
Dimension d 26 mm
Dimension e 35 mm
Expandable no
Fastening type Screw hole
Halogen-free yes
Impact-resistant yes
Material Polystyrene
Number of cables/pipes 2
All types

All types

Types Clamping range D, min. Clamping range D, max. Colour Item no. Quantity SSU
3050 2 6-16 6 mm 16 mm Light grey; RAL 7035 2115018
25 piece
