Pressure ISO clip 3051, single, pure white 14 | 24 | Pure white; RAL 9010

morepic-1

morepic-2

Pressure ISO clip 3051, single, pure white

Item no. 2102048 | EAN 4012195584773

Item no. / Types

Clamping range D, min.	14 mm

Clamping range D, max.	24 mm

Colour

Product description

Product description

With adhesive base, slot and for screwing to M6 thread.
Use the Impu-Fix ribbon conductor quick adhesive, type 509, to stick the polystyrene clips to masonry and concrete.

Technical data

Technical data

Clamping range D, max.	24 mm
Clamping range D, min.	14 mm
Colour	Pure white; RAL 9010
Dimension	14-24mm

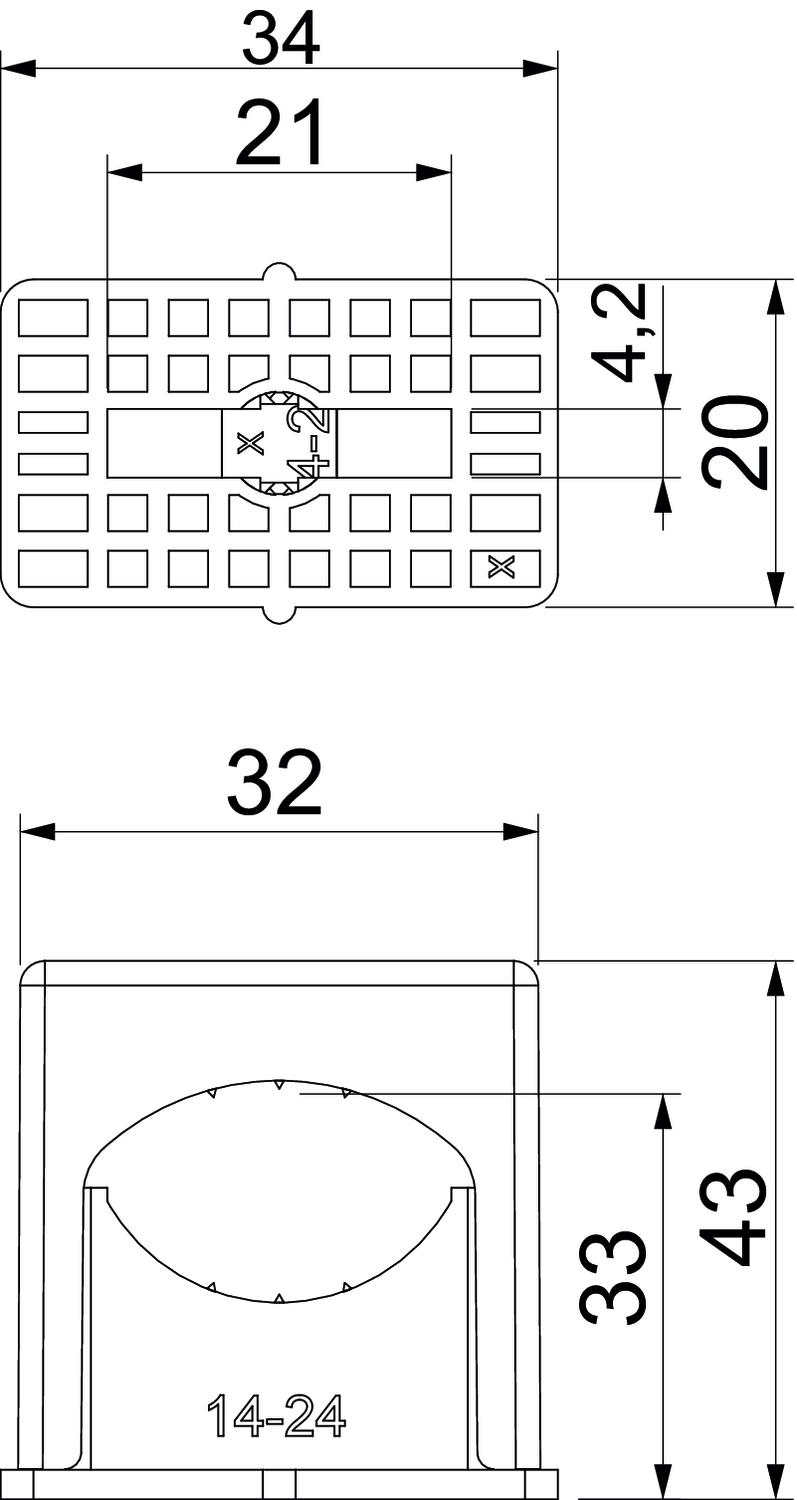

Dimension a	34 mm
Dimension a1 (mm)	21 mm
Dimension b	20 mm
Dimension b1	4,2 mm
Dimension c	32 mm

Dimension d	33 mm
Dimension e	43 mm
Expandable	no
Fastening type	Screw hole
Halogen-free	yes
Impact-resistant	yes
Material	Polystyrene
Number of cables/pipes	1

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Colour	Item no.	Quantity	SSU
3051 LGR	14 mm	24 mm	Light grey; RAL 7035	2101033	piece	50 piece
3051 RW	14 mm	24 mm	Pure white; RAL 9010	2102048	piece	50 piece

Downloads

Data sheet 3051 RW / 2102048 , 0.24MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 3051 RW / 2102048 , 0.13MB , pdf

Product graphic 3051 RW / 2102048, 63.74 kB, jpg

Scale drawing 3051 RW / 2102048, 76.90 kB, jpg
