- Product description
-
Product description

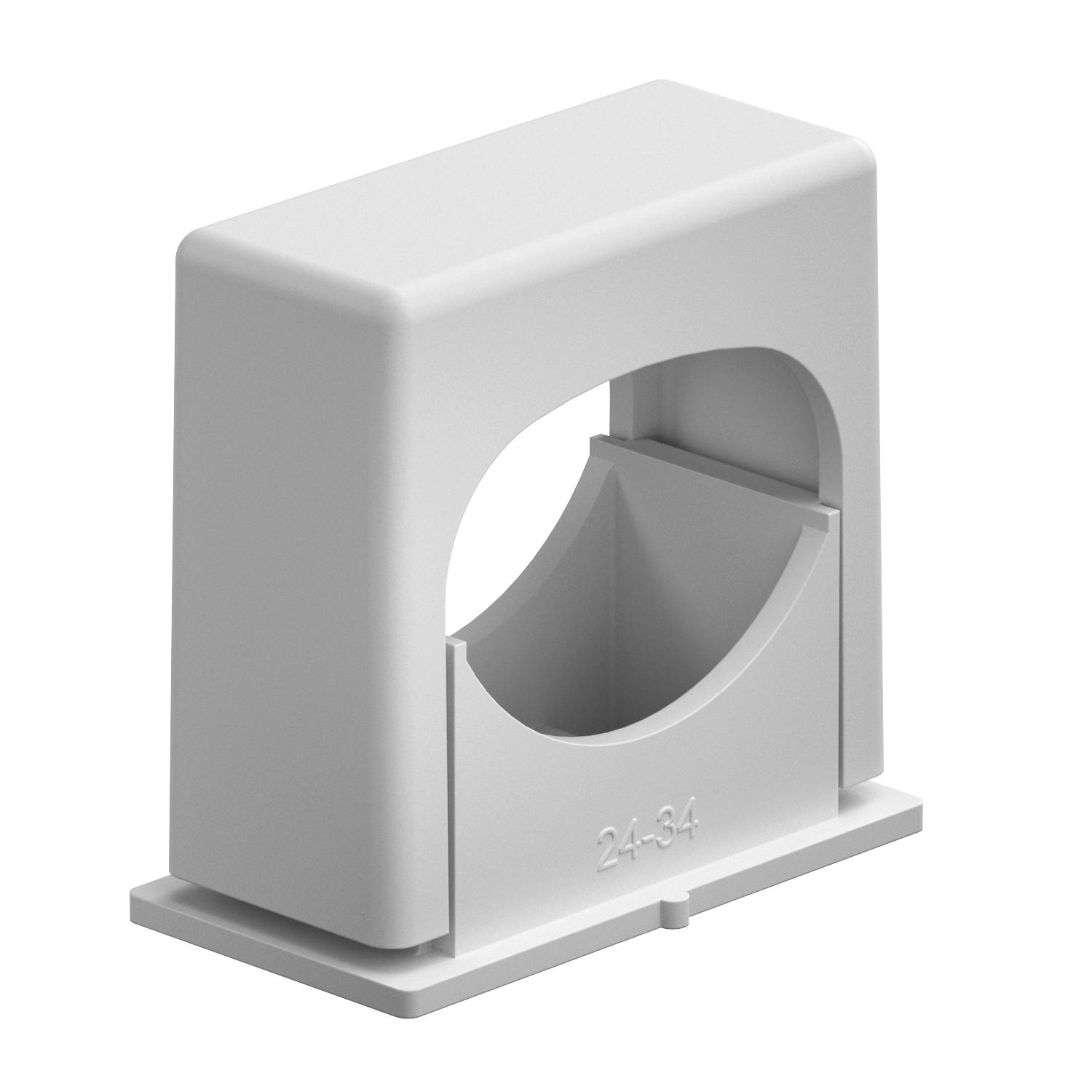

With adhesive base, slot and for screwing to M6 thread.
Use the Impu-Fix ribbon conductor quick adhesive, type 509, to stick the polystyrene clips to masonry and concrete.
-
- Technical data
-
Technical data
Clamping range D, max. 34 mm Clamping range D, min. 24 mm Colour Light grey; RAL 7035 Dimension 24-34mm Expandable no Fastening type Screw hole Halogen-free yes Impact-resistant yes Material Polystyrene Number of cables/pipes 1 Dimensions

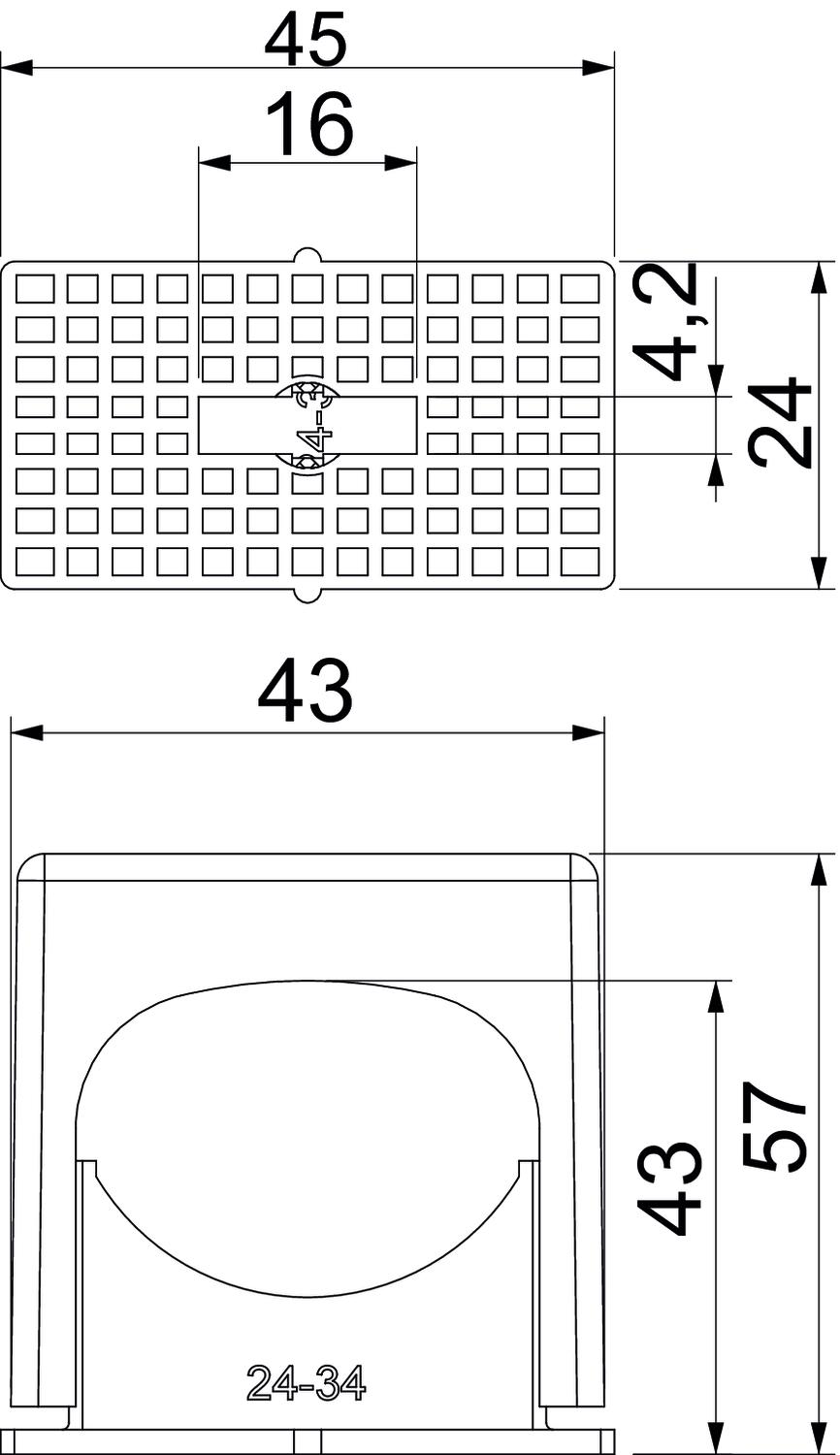

Dimension a 45 mm Dimension a1 (mm) 16 mm Dimension b 24 mm Dimension b1 4,2 mm Dimension c 43 mm Dimension d 43 mm Dimension e 57 mm - All types
- Downloads
-
Data sheet 3052 LGR / 2101068 , 0.22MB , pdfDeclaration of conformity 3052 LGR / 2101068 , 0.13MB , pdfREACH Declaration of conformity 3052 LGR / 2101068 , 0.12MB , pdfRoHS Declaration of conformity 3052 LGR / 2101068 , 0.12MB , pdf
