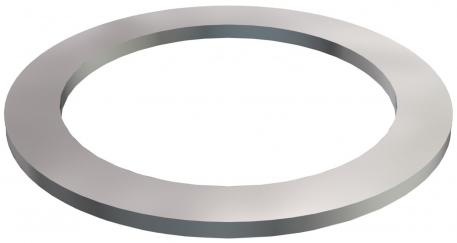

Pressure ring, PG thread

Item no. 2027151 | EAN 4012195165019

Product description

Product description

Pressure ring, Part 7, to DIN 46320, suitable for plastic and brass glands to DIN 46320.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

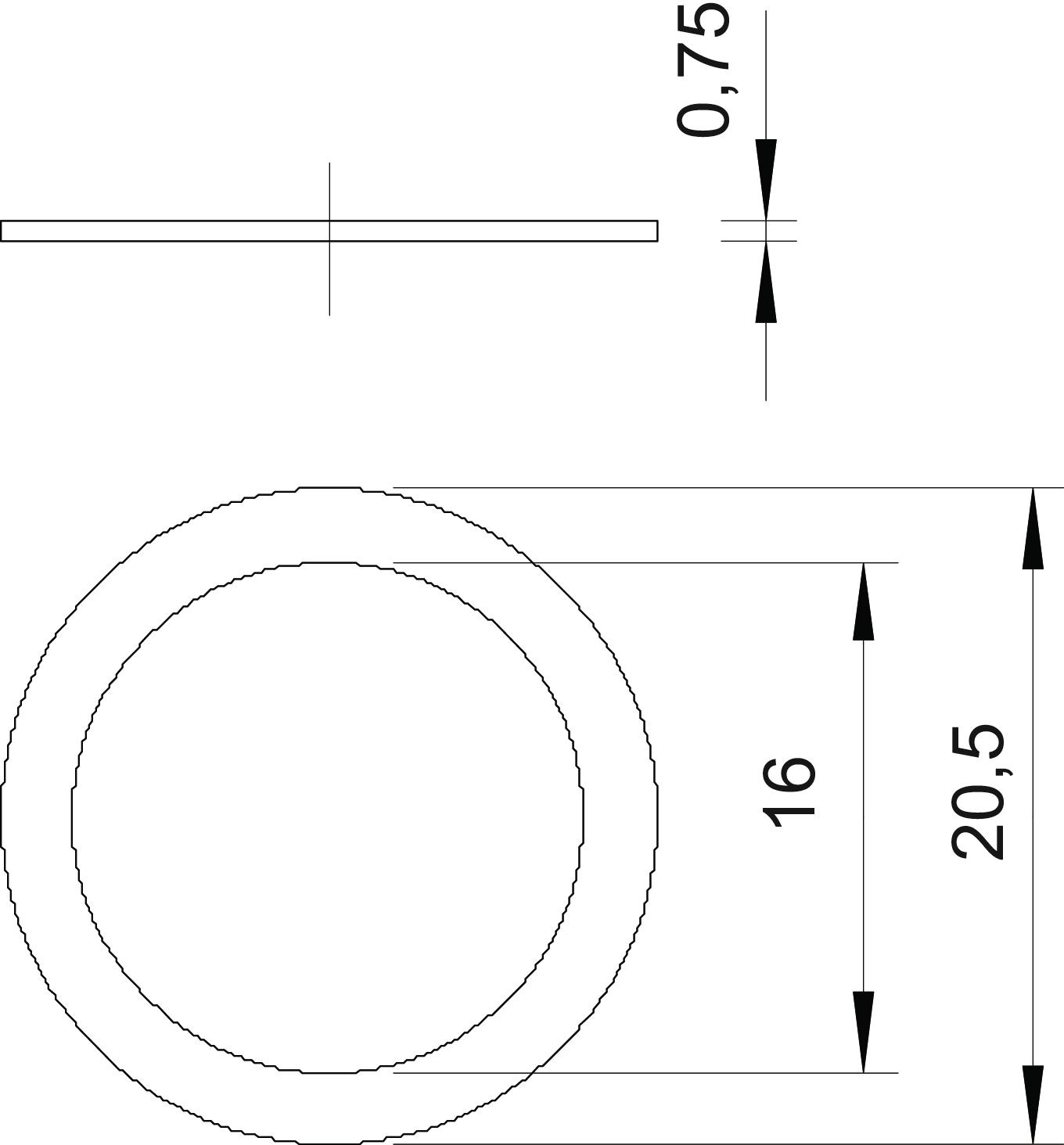

Dimension PG16
Dimension D1 20,5 mm
Dimension D2 16 mm
External diameter 20,5 mm
Inner diameter 16 mm
Material Steel
Screw for PG thread dimension 16
Surface Electrogalvanized, transparently passivated
Thickness 0,75 mm
Version for Miscellaneous
All types

All types

Types Dimension D1 Dimension D2 Screw for PG thread dimension Item no. Quantity SSU
107 D PG7 GTP 11 mm 8 mm 7 2027070
1000 piece
107 D PG9 GTP 13.5 mm 10 mm 9 2027097
1000 piece
107 D PG11 GTP 16.5 mm 12 mm 11 2027119
1000 piece
107 D PG13.5 GTP 18.5 mm 14 mm 13.5 2027135
1000 piece
107 D PG16 GTP 20.5 mm 16 mm 16 2027151
1000 piece
107 D PG21 GTP 26 mm 21 mm 21 2027216
500 piece
107 D PG29 GTP 35 mm 30 mm 29 2027291
250 piece
Downloads

Download

107 D PG16 GTP / 2027151
Download
